JBL ASB6115 - High Power Single 15 Inch Subwoofer with Weather Protection Treatment

Product Code: JBL ASB6115-WRC

Key Features
Compact High-Power 15 Subwoofer System. 2265H-1 Differential Drive® woofer, 3 dual voice coil dual gap, neodymium magnet. Multiply hardwood enclosure with DuraFlex finish and 14-gauge steel grille. Sixteen M10 suspension points. With Weather Protection Treatment. Refer to WEATHER RESISTANT Configurations for AE, PD & VLA Series document for details regarding WRC/WRX models. WRC & WRX enclosures are larger than the standard enclosure. Visit www.jblpro.com to download AE Series 2D WRC & WRX drawings. PAF kits do not fit WRC & WRX enclosures. Standard color is GRAY. Available in Black (-BK) & White (-WH).
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

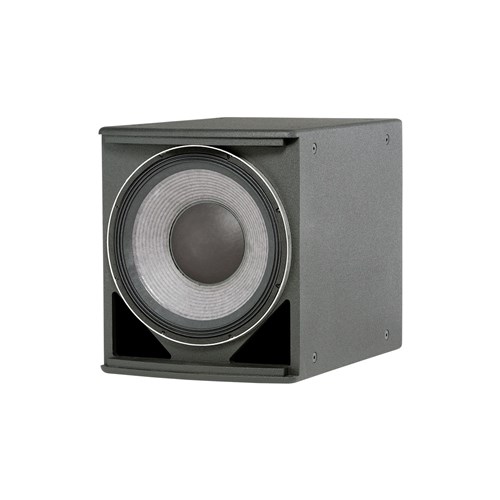

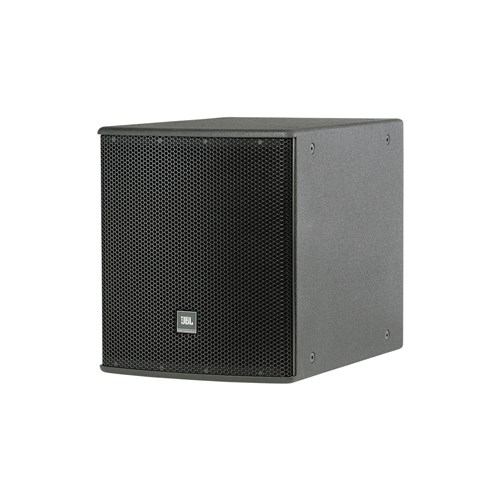

High Power Single 15" Subwoofer

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL's 2265H-1 Differential Drive® dual voice coil dual gap 15" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Features

  • 2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 800 watts continuous pink noise, 3200 watts peak power handling capacity
  • Large vent area for high output with low distortion
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10 dB) 32 Hz - 1 kHz
Frequency Response ( 3 dB) 42 Hz - 1 kHz
Transducer Power Rating 800 W (3200 W peak), 2 hrs.
Long-Term System Power Rating 675 W (2700 W peak), 100 hrs.
Maximum SPL (1m) 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8 ohms
Low Frequency Driver 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive driver
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish Black DuraFlex finish. White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D invertical cabinet orientation) 483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in)
Net Weight 20.6 kg (45.5 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
