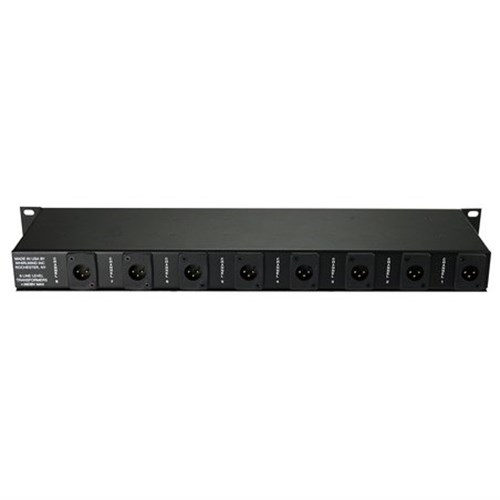

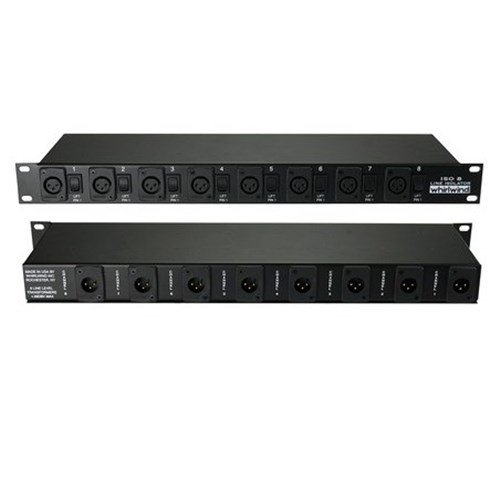

Whirlwind ISO-8Q Line Level Isolator and Balancer Ground Lifts TRS I/O 1 RU

Product Code: WH ISO8Q

Key Features

Sometimes a ground lift isn't enough to do the job. The ISO-8 is a valuable part of systems where different pieces of gear are connected across long lines.

$1,639.91 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Many of our customers use it to isolate drive lines to on-stage power amps. The perfect hum fighter in field broadcast or live sound applications, the ISO-8 provides eight channels of high-quality line level isolation to eliminate hum and buzz from interacting gear.

Unbalanced outputs are an invitation to system noise. The ISO-8 provides both balancing and isolation to stop noise at the source.

Each channel features a ground-lift switch, and our own TRSP600L transformers ensure flat frequency response and low distortion. It's handy to keep an ISO-8 "in the rack" for emergencies.

Model #s: ISO-8 (XLR Connections)
ISO-8Q (1/4" TRS Connections)

  • Frequency Response: 20Hz-20kHz ±0.5dB at +10dBm input
  • Maximum Input Level: +28dBm
  • Input Impedance: 600 Ohms
  • Output Impedance: 600 Ohms
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
