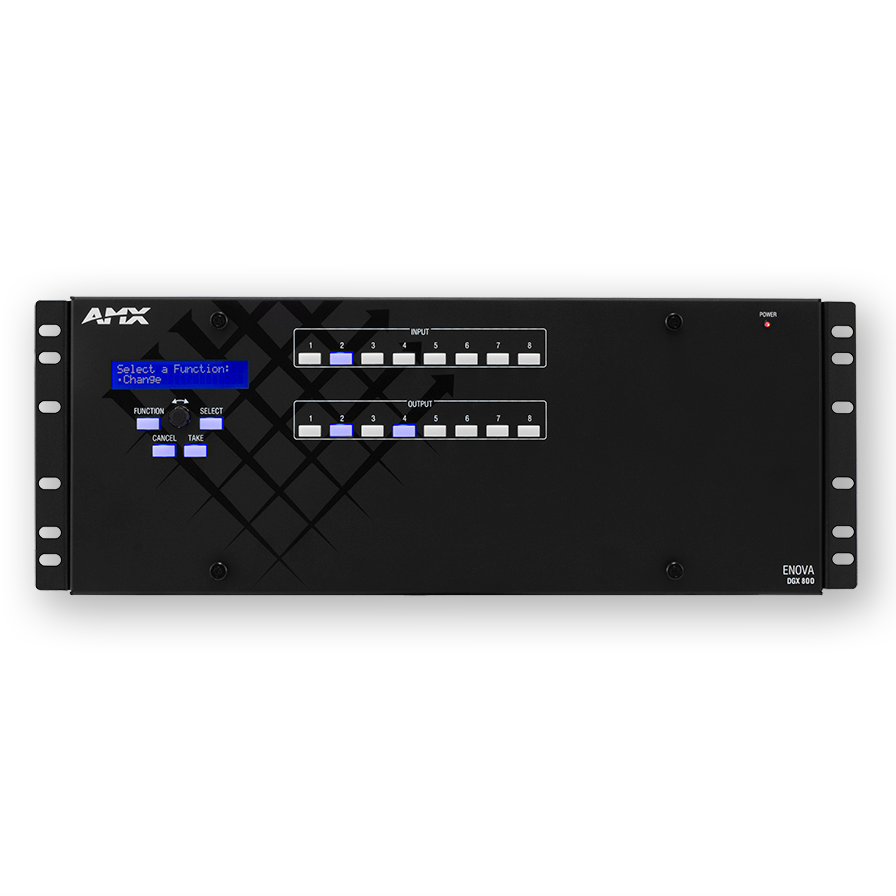

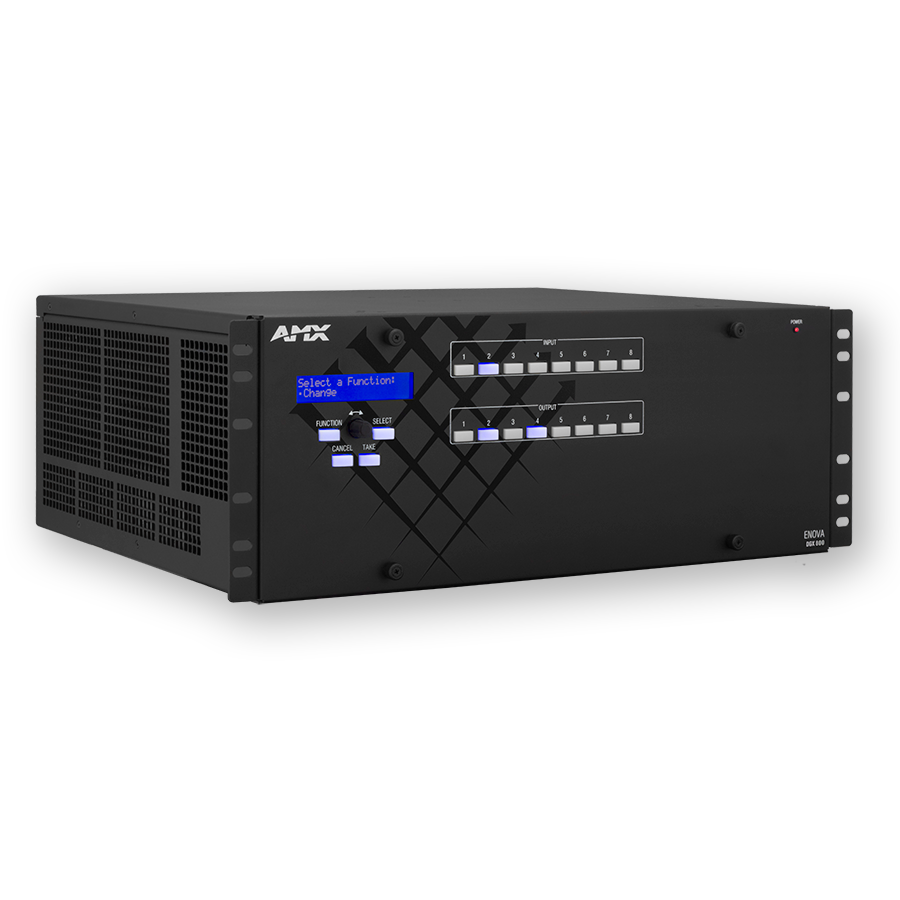

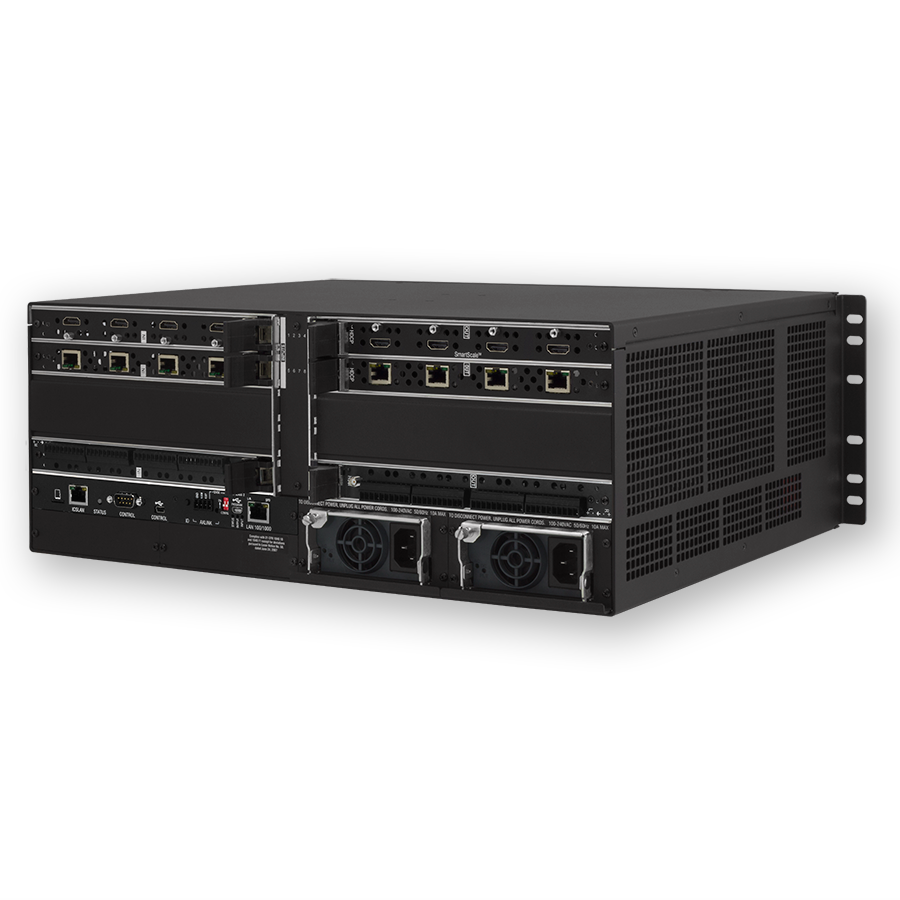

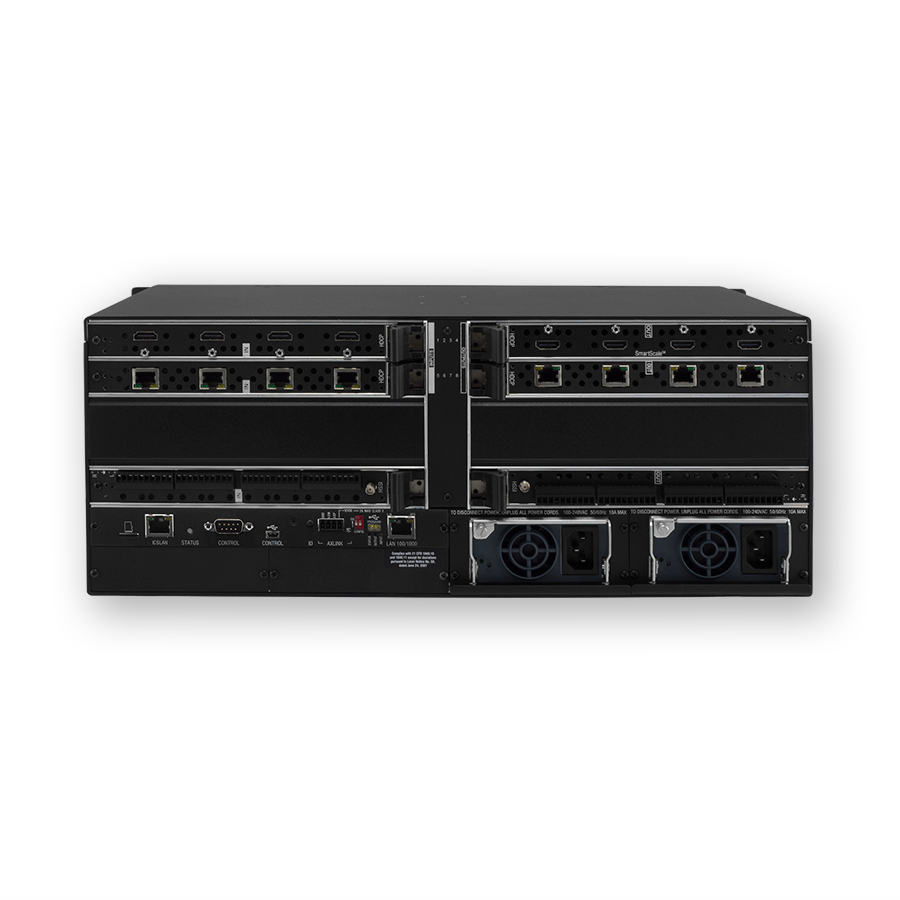

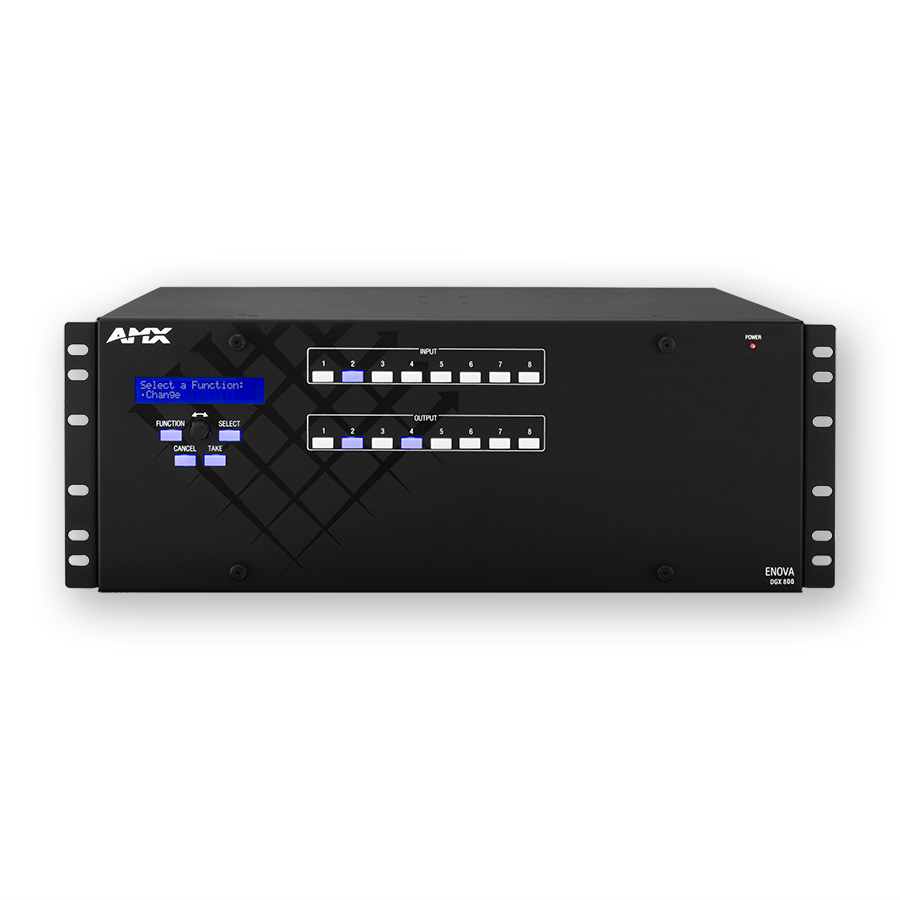

AMX DGX800-ENC - Enova DGX 800 Digital Media Enclosure with Integrated NX Series Controller

The new Enova DGX 800 Enclosure (DGX800-ENC) is a Digital Media Switcher that is ready to support 4K and Ultra High Definition (UHD) content. This robust solution includes a NetLinx^® NX Integrated Controller, redundant power supplies and can be populated with Enova DGX video input and output boards in addition to optional audio-switching boards. There are 4 connections per video board, and each enclosure holds 2 video input boards and 2 video output boards for a maximum matrix of 8x8.

Features

• HDMI/HDCP Switching – End-to-end distribution of HDMI/HDCP without interruption or key constraints using InstaGate Pro^® Technology
• 4K and Ultra High Definition (UHD) Content Ready
• HDCP Compliance Over Fiber – Compatible DXLink Fiber boards transmit uncompressed video, including HDCP protected content, up to 10 Km at 10 Gbps (single mode fiber options transmit 10 Km, multimode 300 m)
• Fiber Your Way – DXLink Fiber boards are available in single mode or multimode; simplex or duplex
• AV and Control over Twisted Pair, Fiber or Both – Send audio, video, bi-directional control and Ethernet over twisted pair or fiber cable, or integrate both into the same system
• Embedded NetLinx NX Integrated Control Processor
• Integrated Ethernet Switch – Pass Ethernet through the attached DXLink Twisted Pair or Fiber Transmitters and Receivers
• Analog to Digital Video Conversion with Scaled Outputs – Converts any source signal to digital and uses SmartScale Technology to automatically output video that is perfectly scaled for each connected display
• Onboard Web Configuration for all Aspects of the DGX System – Greatly simplifies the setup and configuration of Enova DGX systems including DXLink endpoints drastically reducing installation time
• Automatic Setup of DXLink Endpoints – Simplified installation by auto-discovering DXLink devices when they are connected to an Enova DGX
• Single IP Address Required for Multiple Endpoints – Reduces the need for IT administrators to provision numerous IP addresses across the system for transmitters and receivers
• Unrivaled Network Security – With Dual NIC to isolate AMX or third-party AV equipment from the primary network, IPv6 and wired 802.1X for protected network access, and user-defined LDAP login group support, the Enova DGX provides rock-solid security
• Independent Routing of Audio and Video Using Audio Switching Boards
• AxLink Port – Makes it easier to connect AxLink devices like keypads directly to the Enova DGX
• InstaGate Pro Technology – Easily integrate HDCP into system designs and enjoy hassle-free matrix switching to all compliant displays.
• SmartScale Technology – Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup
• DXLink Twisted Pair Input and Output Boards – HDCP Compliant boards send audio, video, control, Ethernet and power over one standard twisted pair cable up to 200 m – 100 m to the matrix switcher and 100 m after the matrix switcher
• Easily Convert Analog to Digital Signals – Use the Enova DGX Digital Media Switcher in conjunction with DXLink Multi-Format Transmitters (Twisted Pair or Fiber), and easily integrate legacy analog sources and automatically convert their signals to digital
• Hot Swappable Video Input / Output Boards – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
• 3D Support – Pass through latest video formats including 3D and Deep Color
• Surround Sound Support – Pass through high definition surround sound including Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM
• High Speed Digital Switching – 26 Gbps* ensures perfect pixel for pixel reproduction of video
• Fully Redundant Power Supplies With Independent Power Paths – Ensures maximum reliability for applications that require 24/7 uptime
