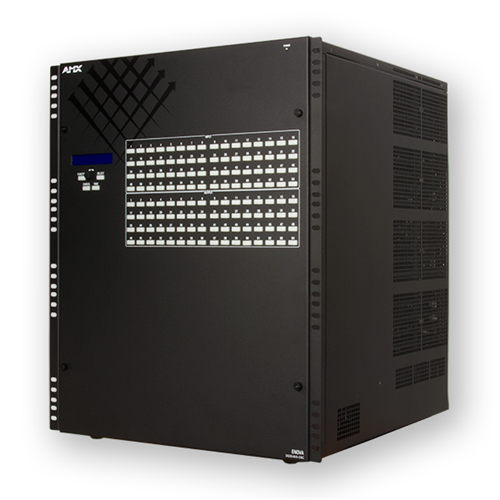

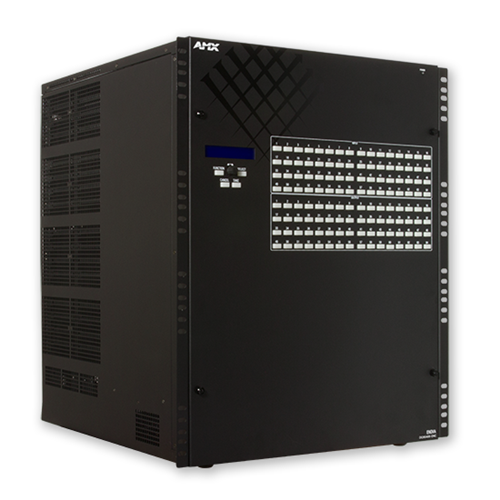

AMX DGX6400-ENC - Enova DGX 6400 Digital Media Enclosure with Integrated NX Controller

Product Code: AMX FG1061-64-FX

Key Features
Enova DGX 6400 Digital Media Enclosure with Integrated NX Controller, 4K Ready, 13RU, compatible with Enova DGX Boards, DXLink Twisted Pair and Fiber Boards for a maximum configuration of 64x64
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The new Enova DGX 6400 Enclosure (DGX6400-ENC) is a Digital Media Switcher that is ready to support 4K and Ultra High Definition (UHD) content. This robust solution includes a NetLinx® NX Integrated Controller, redundant power supplies and can be populated with Enova DGX video input and output boards in addition to optional audio -switching boards. There are 4 connections per video board, and each enclosure holds 16 video input boards and 16 video output boards for a maximum matrix of 64x64.

Features

  • HDMI/HDCP Switching – End-to-end distribution of HDMI/HDCP without interruption or key constraints using InstaGate Pro® Technology
  • 4K and Ultra High Definition (UHD) Content Ready
  • HDCP Compliance Over Fiber – Compatible DXLink Fiber boards transmit uncompressed video, including HDCP protected content, up to 10 Km at 10 Gbps (single mode fiber options transmit 10 Km, multimode 300 m)
  • Fiber Your Way – DXLink Fiber boards are available in single mode or multimode; simplex or duplex
  • AV and Control over Twisted Pair, Fiber or Both – Send audio, video, bi-directional control and Ethernet over twisted pair or fiber cable, or integrate both into the same system
  • Embedded NetLinx NX Integrated Control Processor
  • Integrated Ethernet Switch – Pass Ethernet through the attached DXLink Twisted Pair or Fiber Transmitters and Receivers
  • Analog to Digital Video Conversion with Scaled Outputs – Converts any source signal to digital and uses SmartScale Technology to automatically output video that is perfectly scaled for each connected display
  • Onboard Web Configuration for all Aspects of the DGX System – Greatly simplifies the setup and configuration of Enova DGX systems including DXLink endpoints drastically reducing installation time
  • Automatic Setup of DXLink Endpoints – Simplified installation by auto-discovering DXLink devices when they are connected to an Enova DGX
  • Single IP Address Required for Multiple Endpoints – Reduces the need for IT administrators to provision numerous IP addresses across the system for transmitters and receivers
  • Unrivaled Network Security – With Dual NIC to isolate AMX or third-party AV equipment from the primary network, IPv6 and wired 802.1X for protected network access, and user-defined LDAP login group support, the Enova DGX provides rock-solid security
  • Independent Routing of Audio and Video Using Audio Switching Boards – Provides increased flexibility to combine and separate audio from video in a variety of applications
  • AxLink Port – Makes it easier to connect AxLink devices like keypads directly to the Enova DGX
  • InstaGate Pro Technology – Easily integrate HDCP into system designs and enjoy hassle-free matrix switching to all compliant displays
  • SmartScale Technology – Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup
  • DXLink Twisted Pair Input and Output Boards – HDCP Compliant boards send audio, video, control, Ethernet and power over one standard twisted pair cable up to 200 m – 100 m to the matrix switcher and 100 m after the matrix switcher
  • Easily Convert Analog to Digital Signals – Use the Enova DGX Digital Media Switcher in conjunction with DXLink Multi-Format Transmitters (Twisted Pair or Fiber)
  • Hot Swappable Video Input / Output Boards – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
  • 3D Support – Pass through latest video formats including 3D and Deep Color
  • Surround Sound Support – Pass through high definition surround sound including Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM
  • High Speed Digital Switching – 26 Gbps* ensures perfect pixel for pixel reproduction of video
  • Fully Redundant Power Supplies With Independent Power Paths – Ensures maximum reliability for applications that require 24/7 uptime

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a limited lifetime warranty on this product. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

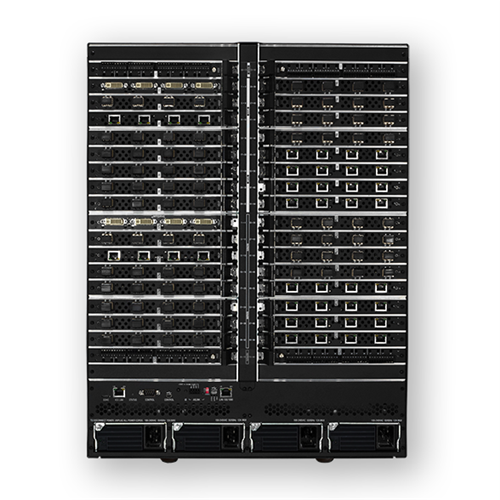

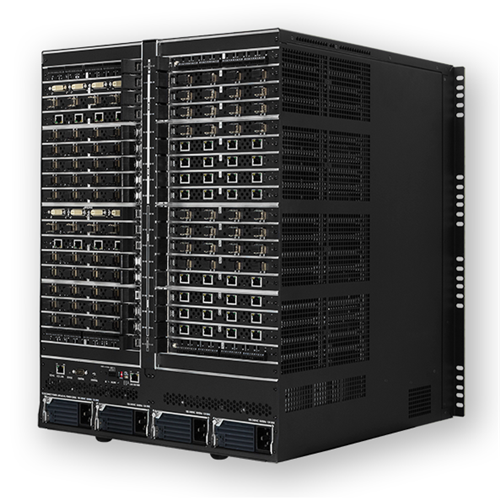

Maximum IO Range 64x64. Enclosure holds up to 16 input boards and 16 output boards; each board has 4 connections.
Per Channel Aggregate Data Rate (Max) 26 Gbps
Dimensions With Extractors and Mounting Ears: 22 3/4" x 18 15/16" x 20 1/8 (57.71 cm x 48.15 cm x 53.70 cm)
Integrated Controller NetLinx On Board Master is an NX Class Controller

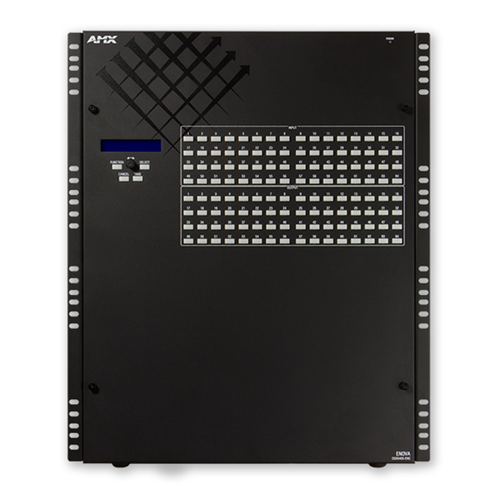

Integrated Front Panel Control Integrated front control panel with key selections for each input/output, four control keys for system switches and attributes, and an LCD to display the menu screen.
Connectors See specifications for selected board
Compatible Formats See specifications for selected board
Signal Type Support See specifications for selected board
Maximum Resolution Support See specifications for selected board
Audio Format Support See specifications for selected board
FG Numbers FG1061-64
