AMX DGX800/1600-ASB - DGX800/1600 Audio Switching boards

Product Code: AMX FG1061-716-FX

Key Features
The DGX800/1600-AS is a pair of audio switching boards that include both an Input and an Output board for the Enova DGX 800 and 1600, includes audio breakaway, downmixing, DSP and 10 band parametric EQ on every output
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

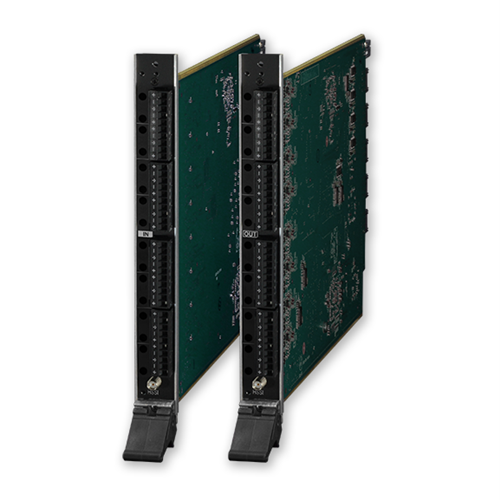

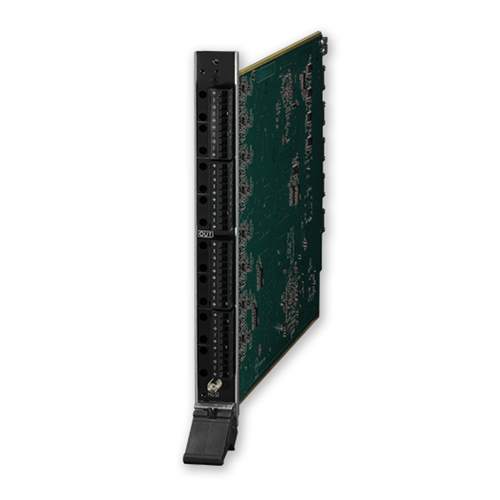

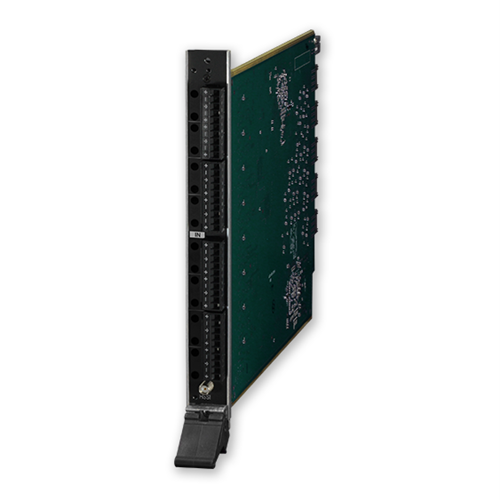

The DGX800/1600-AS is a pair of audio switching boards that include both an Input and an Output board for the Enova DGX 800 and 1600. The boards enable a host of audio switching capabilities including Audio Breakaway and Downmixing. DSP functionality includes a 10 Band Parametric EQ on every output which allows audio tuning for each specific environment based on its acoustics. The Enova DGX Web Configuration interface makes it simple and easy to set up these audio features with the Enova DGX. It includes a test tone generator that allows testing of every audio connection without the need for a separate audio source. The Audio Switching Boards are only sold in pairs and must be used together.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a limited lifetime warranty on this product. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio Switching 16x16 (DGX 800) or 24x24 (DGX 1600) Matrix Audio Switching. Each of the embedded or auxiliary analog audio outputs has independent volume, EQ and sync delay
Audio Inputs 8 or 16 Embedded Digital Audio Inputs from Video Input Positions
Audio Outputs 8 or 16 Embedded Digital Audio to Video Outputs
Audio Input Compression Independent compression per input; attack: 1 to 2000 ms; release: 10 to 5000 ms; compression ratio: 1 to 20; threshold: -60 to 0 dB
Audio Input Gain Compensation -24 dB to +24 dB, 1 dB steps
Audio Output Compression 10-band parametric EQ with variable center frequency, filter type and Q per band; center frequency: 20 Hz to 20 kHz; EQ gain: -12 to +12 dB; Q: 0.1 to 20; filter types: bell, bass shelving, treble shelving, low pass, high pass, band pass, band stop
Audio Output Sync Delay 0 to 200 ms
Balance Control 20 steps each left and right
Audio Control per Output Independent EQ, volume and balance control per output
Downmix Input Downmix input fed from selectable embedded audio input from any Enova DGX Input Board. Downmixed audio switchable to all embedded/auxiliary Dante encoded audio outputs
FG Numbers FG1061-716
