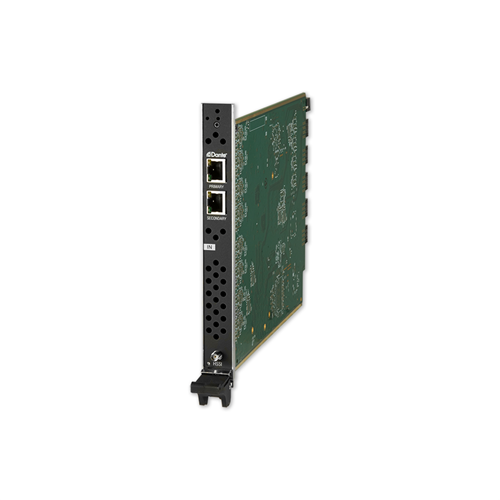

AMX DGX3200-ASB-DAN Enova DGX Dante Audio Switching Board Kit for 800/1600/3200

Product Code: AMX FG1061-832

Key Features

The DGX3200-ASB-DAN is an audio switching board kit featuring direct Dante networked audio feeds to and from the Enova DGX 800/1600/3200 enclosures. The boards support 8 discrete stereo decoded inputs and 8 discrete stereo encoded outputs. This allows for independent routing of decoded inputs, or breakaway to decoded audio outputs, into a networked audio system such as HARMAN’s BSS. Additionally, the kits feature audio breakaway, downmixing, and a host of DSP functionality such as EQ, volume control, and stereo summing on every path.

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Features

Direct Dante Integration into the Enova DGX Reduces the physical installation time for inserted and extracted audio paths from the Enova DGX system as Dante network enabled signals

Easy Integration with Dante Enabled Devices including HARMAN BSS and Crown Allows for simple decision making when specifying companion DSP to the Enova DGX switching solution

Simplified Integration with Building-Wide Audio Utilizing Dante, the industry s most standard networked audio format, integration of traditional Centralized AV and networked audio is quick and easy

Audio Breakaway Switching audio breakaway switching functionality allows for flexible combining of audio and video signals even if they originated from different sources

Integrated DSP Including a 10-Band Parametric EQ on Every Output Audio equalization allows the sound in each zone to be tuned specifically to match the individual audio characteristics of each environment.  After easy setup with the integrated web GUI, the same audio source can be heard perfectly in each zone regardless of acoustical differences.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a limited lifetime warranty on this product. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio Switching 16x16 (DGX 800), 24x24 (DGX 1600) or 40x40 (DGX 3200) Matrix Audio Switching with each out having independent volume, EQ, and sync delay
Audio Inputs 8, 16, or 32 Embedded Digital Audio Inputs from Video Input Positions
Audio Outputs 8, 16, or 32 Embedded Digital Audio to Video Outputs
Audio Input Compression Independent compression per input; attack: 1 to 2000 ms; release: 10 to 5000 ms; compression ratio: 1 to 20; threshold: -60 to 0 dB
Audio Input Gain Compensation -24 dB to +24 dB, 1 dB steps
Audio Output Compression 10-band parametric EQ with variable center frequency, filter type and Q per band; center frequency: 20 Hz to 20 kHz; EQ gain: -12 to +12 dB; Q: 0.1 to 20; filter types: bell, bass shelving, treble shelving, low pass, high pass, band pass, band stop
Audio Output Sync Delay 0 to 200 ms
Balance Control 20 steps each left and right
Audio Control per Output Independent EQ, volume and balance control per output
Downmix Input Downmix input fed from selectable embedded audio input from any Enova DGX Input Board. Downmixed audio switchable to all embedded/auxiliary Dante encoded audio outputs
FG Numbers FG1061-832
