DBX DJDI Two Channel Passive Direct Box

Product Code: DBX DJDI

Key Features
DBX 2-channel passive direct box that converts unbalanced signals into balanced output for use with mixers, PAs, recording consoles and more
$178.29 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

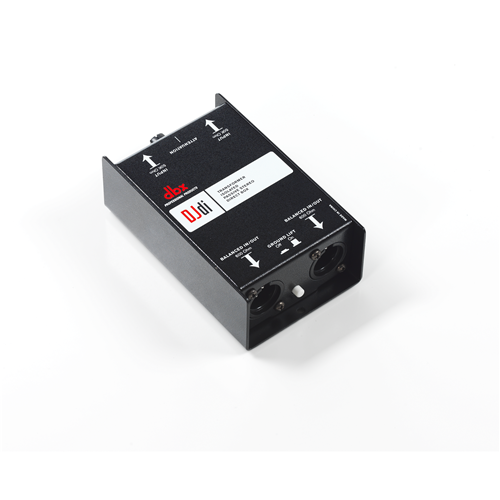

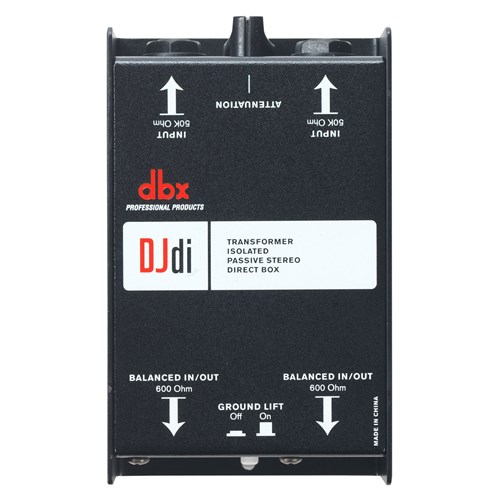

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.



Features

  • Dual Channel

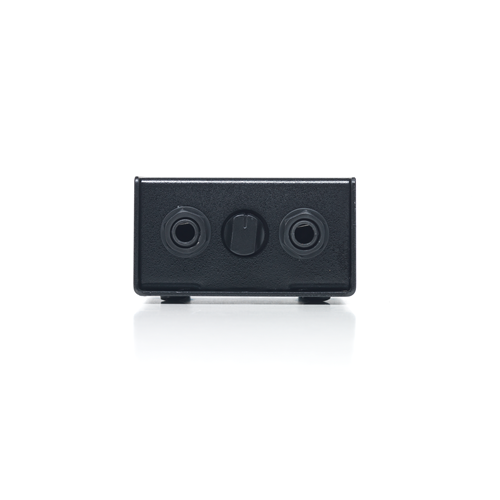

  • (2) 1/4” 50k Ohm TS Inputs

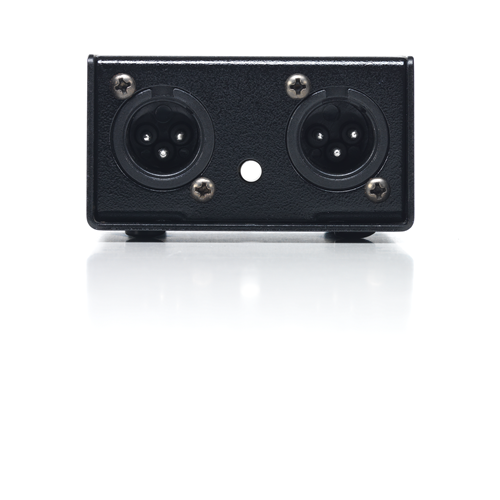

  • (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
  • Passive Circuit Design
  • Continuously Variable Input Attenuator
  • Ground Lift Switch
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Circuit Passive
Inputs 2
Input Connectors 1/4 TS (Tip Hot, Sleeve Ground)
Input Type Unbalanced, RF Filtered
Input Impedance 50 kOhm
Outputs 2
Output Connectors Male XLR, Balanced, Pin 2 hot
Output Impedance 600 Ohms
Noise Level -104dBu (22Hz -22kHz, Input Shorted)
THD+N (10Hz-22kHz) 0.23% typical @ +4dBu @ 1kHz
Insertion Loss 21dB typical
