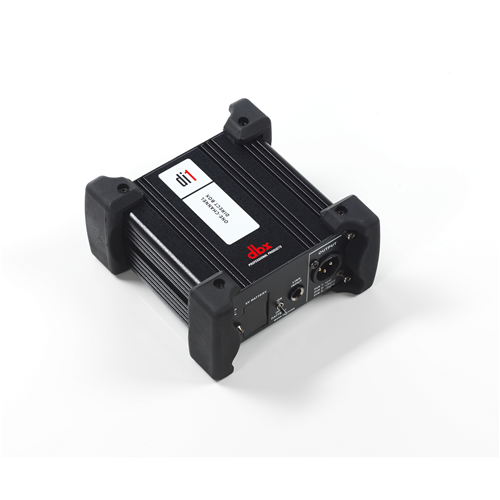

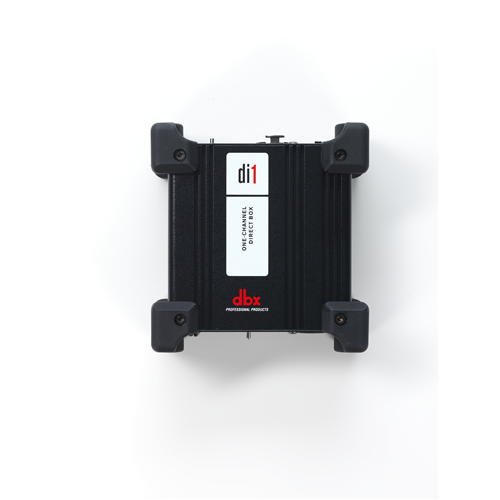

DBX DI1 Active Direct Box

Product Code: DBX DI1

Key Features
DBX Active direct box ensures audio signals reach their destination in both a balanced format and free from unwanted noise
$220.90 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise.

Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone.

Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.



Features

  • Level and impedance matching function
  • Output impedance: > 600 Ohms
  • Signal pass through connector
  • Output connector: XLR balanced
  • Battery LED indicator
  • Distortion: (THD) < 0.005% at 1kHz, 0dBu
  • Phantom power LED indicator
  • Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
  • Output Noise: <-100dB unweighted
  • TS and XLR inputs and outputs
  • Frequency response: 10Hz to 70kHz, +0dB/-3dB
  • Attenuation control
  • Phantom Power: +18 volts DC to +48 volts DC
  • Ground lift switch
  • Main/Standby: 9V battery
  • Input Impedance: >250k Ohm
  • Metal Chassis
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Input Impedance > 250k Ohm
Max Input +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)

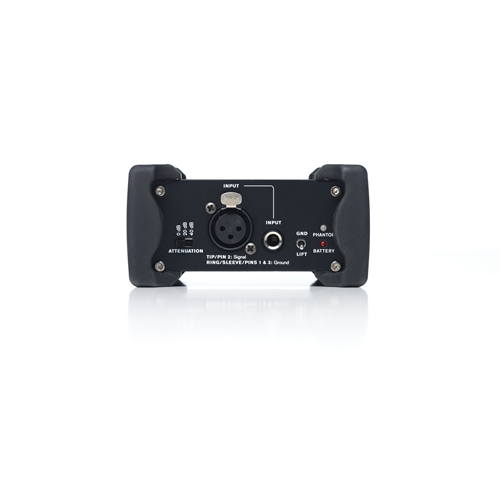

Connectors Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced), 1/4" Jack: Tip Hot, Sleeve Ground; XLR Jack: Pin 2 Hot, Pins 1 & 3 Ground
Output Impedance > 600 Ohms

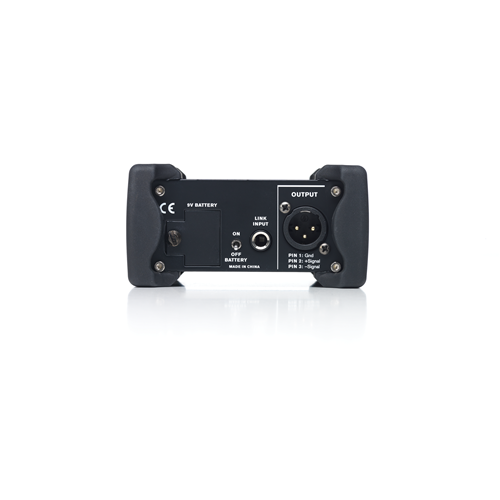

Output Connectors XLR balanced
Distortion (THD) < 0.005% at 1kHz, 0dBu
Output Noise <-100dB unweighted
Frequency Response 10Hz to 70kHz, +0dB/-3dB
Main/Standby 9 Volt battery
Phantom Power +18 Volts DC to +48 Volts DC
