Dante AVIO USB-C Adapter 2x2

Product Code: AUD-ADP-USBC-AU-2X2

Key Features
  • USB Type C
  • Plug and play operation
  • Built for the road
  • 24 bit audio support
  • Dante Audio over IP and ASE67 RTP transport formats
  • Power over Ethernet (PoE) support
  • USB-C to USB-C cable included with USB-C model
  • Dante Domain Manager ready
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

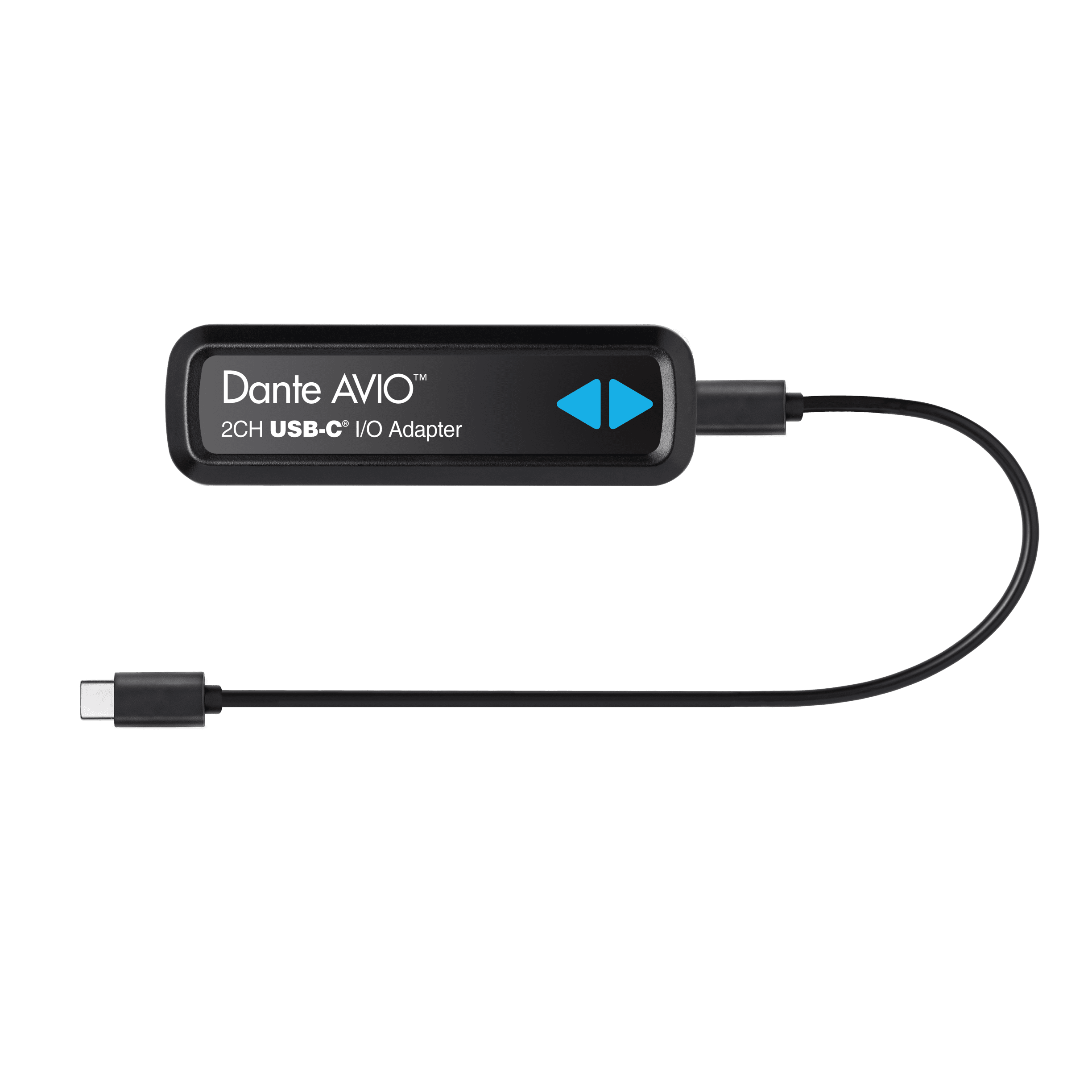

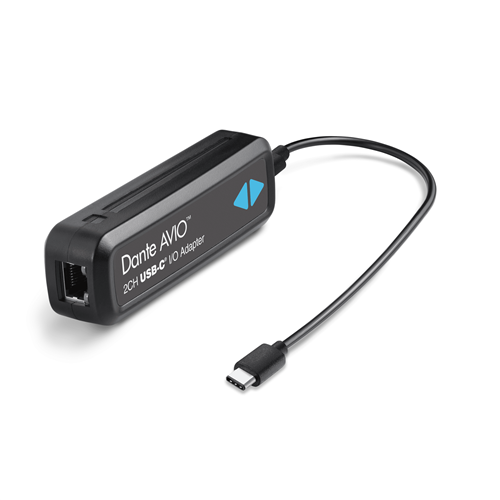

Dante AVIO USB-C Adapter 2x2 Channel

***Pre-order now. Stock available from November 2024***

Connect your USB - enabled computers and mobile devices directly to a Dante audio network, no drivers or additional software required!

Network Everything

Dante AVIO USB and USB-C Adapters support 2 x 2 channels of bidirectional audio, allowing PCs and mobile devices to playout and record audio with any Dante-enabled devices over a standard IP network. Use audio applications like media players, conferencing software, presentations and recorders with network-connected speakers, microphones, mixers and DSPs. Cost effective, compact and built for the road, the Dante AVIO family of adapters bring the modern network connectivity that every audio pro needs in their toolbox.

Plug & Play

Each Dante AVIO USB adapter is a complete, high performance Dante device, delivering all the automation and ease of use that have made Dante the most popular audio networking solution worldwide.

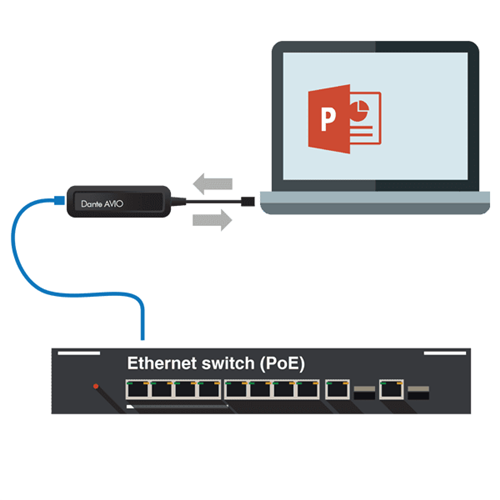

Dante AVIO USB and USB-C adapters automatically discovered and ready to use when connected, and no separate power supplies are required – just use a common PoE (Power over Ethernet) switch or the USB power built-in to your computer and the Dante AVIO USB adapter is ready to go.

Built for the road

We’ve made all Dante AVIO adapters road-ready and tour-tough. Sonically welded ABS enclosures and quality hardware are used throughout, while cable assemblies are stress-tested to ensure reliable operation under grueling conditions. Toss them in your toolbox, show after show.

All Dante

Dante AVIO adapters are all fully functional Dante interfaces, with all the features you’d expect from Dante audio networking. Each one delivers bit-perfect audio reproduction, super-low latency and sample-accurate synchronization across the entire network. All Dante devices automatically discover one another, and the entire system is managed by our any connected PC or Mac. Most importantly, every Dante device can connect to every other Dante device – no questions asked. All Dante AVIO adapters are fully compatible with Dante Domain  Manager (DDM) for IT-level security and  management, while AES67 is supported for connection to non-Dante networks.

Cost-effective

We’ve worked hard to make the Dante AVIO family of products a cost-effective addition to any system or piece of gear, so that everyone can enjoy the benefits of Dante. Audio networking has never been easier to or more affordable, no matter how you choose to use it.

Use cases

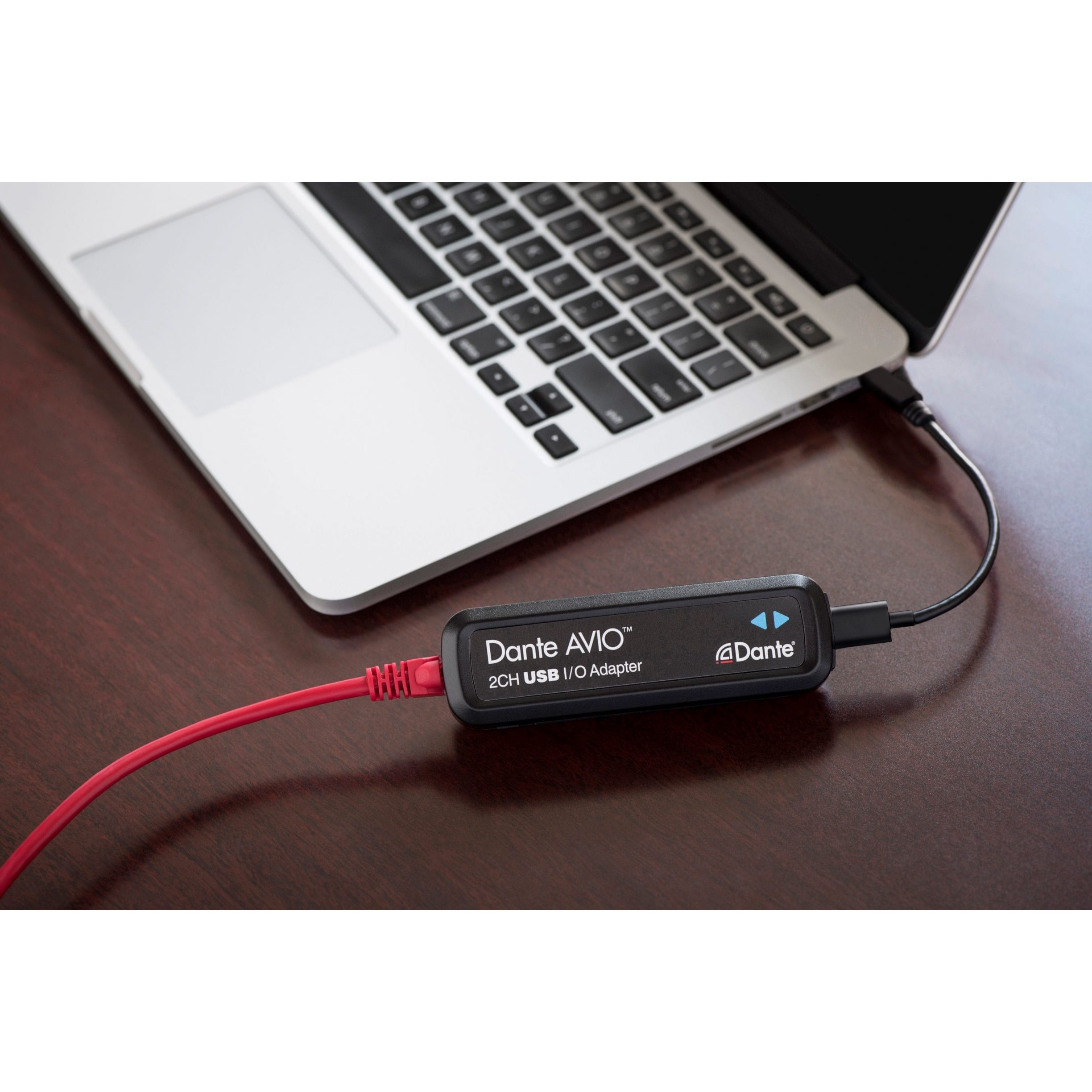

  • Easy audio drop-point for laptops in conference settings, no need to reconfigure your Dante network for different computers
  • USB Type-C connectors
  • Connect mobile devices to a Dante network with adapters as required

Watch this video explaining what Dante AVIO Adapters are:

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio Channels 2 in, 2 out
Connectors RJ45 & USB Type-C
Power Class 1 802.3af PoE or USB
Power Consumption  <10 watts, < 2 watts no power delivery
USB Power Delivery 5V 1.5A (7.5 watts)
Sample Rates 48 kHz
Bit depth 24
Dante Device Latency 1, 2, or 5ms (configurable using Dante Controller)
Network Transport Dante Audio over IP, AES67 RTP
USB Class compliant USB 2.0 device
Operating Temp -10 to +50C
Storage Temp -25 to +70C
Part Number ADP-USBC-AU-2X2
