Dante AVIO AES3 IO Adapter 2x2 Channel

Product Code: AUD-ADP-AES3-AU-2X2

Key Features
  • Plug and play operation
  • Built for the road
  • Sample rates up to 96 kHz
  • 16, 24, and 32 bit audio support
  • Synchronous sample rate conversion
  • Excellent dynamic range, SNR and THD performance
  • Dante Audio over and AES6 RTP transport formats
  • Power over Ethernet (PoE) support
  • Dante Domain Manager ready
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Dante AVIO AES3 IO Adapter 2x2 Channel

Network all your AES3 / EBU equipped audio gear easily and cost-effectively with Dante AVIO.

The Dante AVIO AES3/EBU Adapter supports 2 x 2 channels, with high-quality XLR input and output connectors and built-in asynchronous sample rate conversion. Use the AES3 Dante AVIO Adapters to add Dante networking to amplifiers, speaker processors, mixing consoles, video systems and more. Cost effective, compact and built for the road, the Dante AVIO family of adapters bring the modern network connectivity that every audio pro needs in their toolbox.

Plug & Play

The Dante AVIO AES3 adapter is a complete, high performance Dante device, delivering all the automation and ease of use that have made Dante the most popular audio networking solution worldwide.

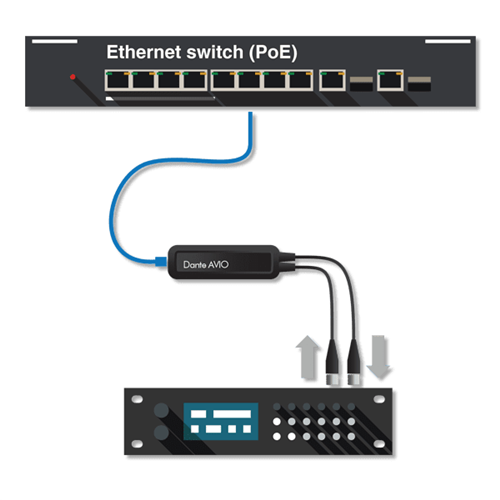

The Dante AVIO AES3 adapter is automatically discovered and ready to use when connected, and no separate power supplies are required – just use a common PoE (Power over Ethernet) switch and any Dante AVIO adapter is ready to go.

Built for the road

We’ve made all Dante AVIO adapters road-ready and tour-tough. Sonically welded ABS enclosures and quality
hardware are used throughout, while cable assemblies are stress-tested to ensure reliable operation under  grueling conditions. Toss them in your toolbox, show after show.

All Dante

Dante AVIO adapters are all fully functional Dante interfaces, with all the features you’d expect from Dante audio networking. Each one delivers bit-perfect audio reproduction, super-low latency and sample-accurate synchronization across the entire network. All Dante devices automatically discover one another, and the entire system is managed by our easyto-use Dante Controller software on any connected PC or Mac. Most importantly, every Dante device can connect to every other Dante device – no questions asked.

All Dante AVIO adapters are fully compatible with Dante Domain Manager (DDM) for IT-level security and
management, while AES67 is supported for connection to non-Dante networks.

Cost-effective

We’ve worked hard to make the Dante AVIO family of products a cost-effective addition to any system or piece of gear, so that everyone can enjoy the benefits of Dante. Audio networking has never been easier or more affordable, no matter how you choose to use it.

Use cases

  • Interface with SDI video systems using AES3 audio.
  • Put your AES3-compatible amplifiers and powered speakers on your Dante audio network.
  • Connect AES3-compatible DSPs to a Dante network
  • Connect AES3-compatible micro phone preamplifiers to a Dante network

Watch this video explaining what Dante AVIO Adapters are:

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio Channels 2 in, 2 out
Signal to Noise Ratio > 135dB
Connectors: RJ45, 1 XLR-M, 1 XLR-F
Power Class 1 802.3af PoE
Power Consumption ASE3 column < 2 watts
Asynchronous Sample Rate Conversion Yes
Sample Rates 44.1, 48, 96 kHz
Bit depth 24
Dante Device Latency 1, 2, or 5ms (configurable using Dante Controller)
Network Transport Dante Audio over IP, AES67 RTP
Operating Temp -10 to +50C
Storage Temp -25 to +70C
Part Number ADP-AES3-AU-2X2
