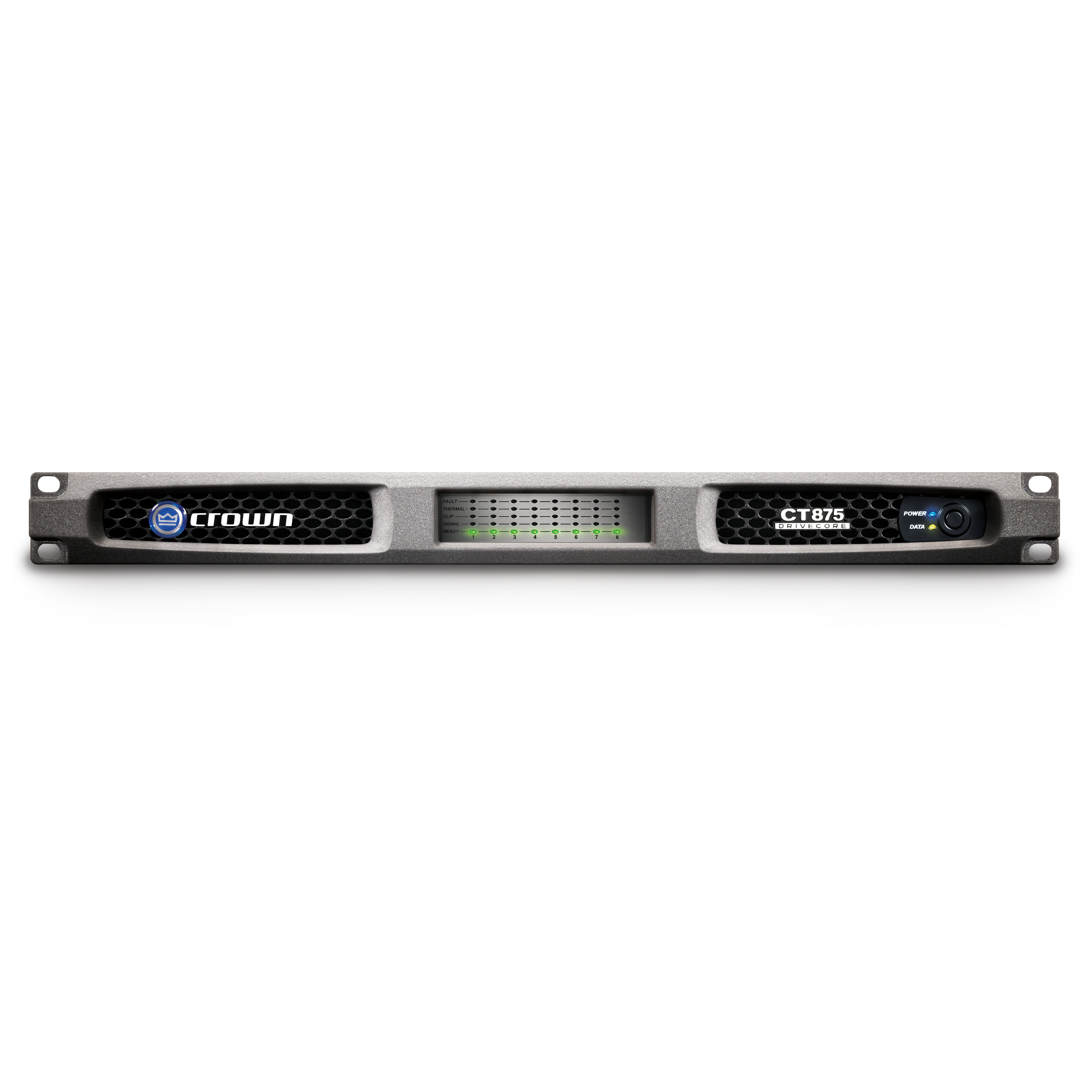

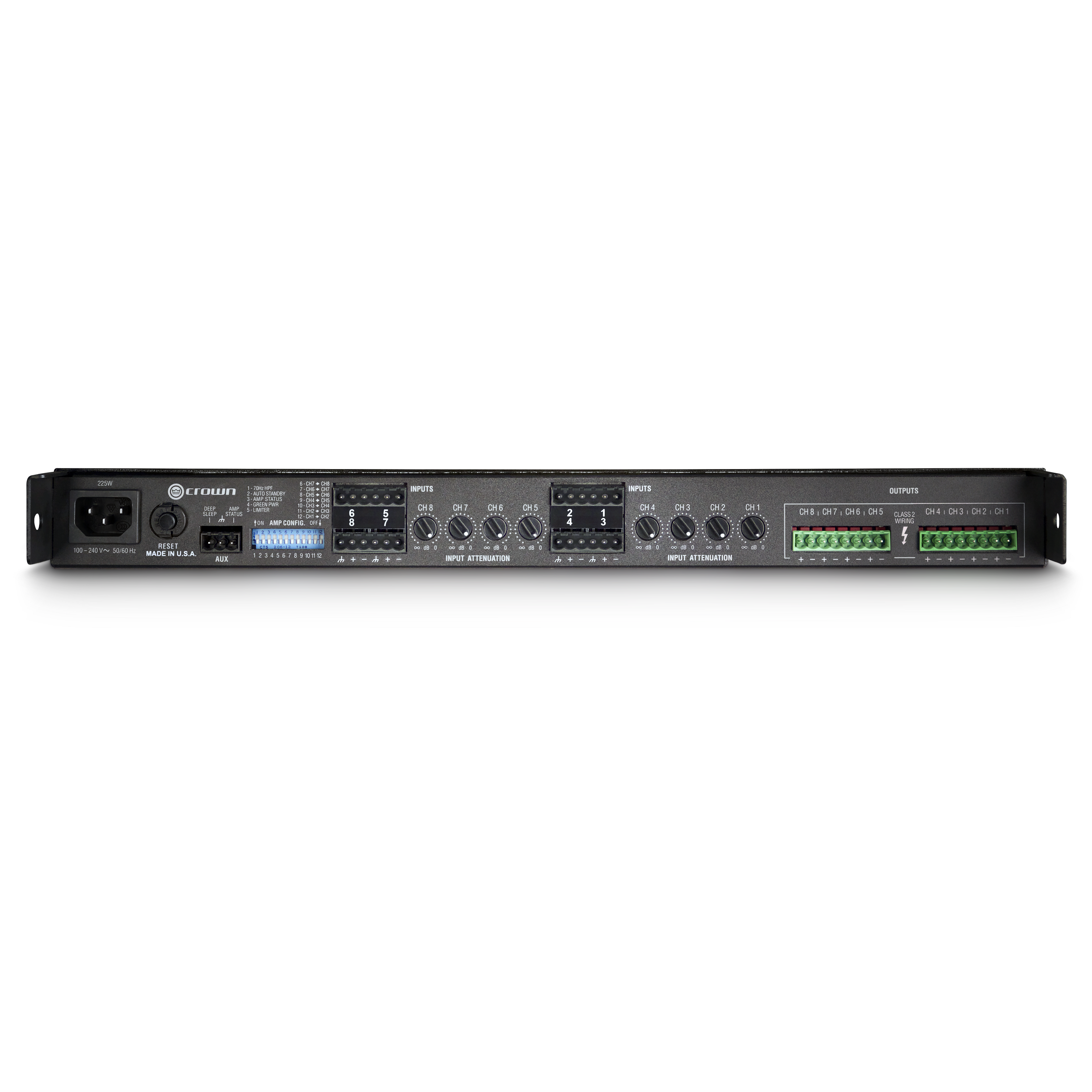

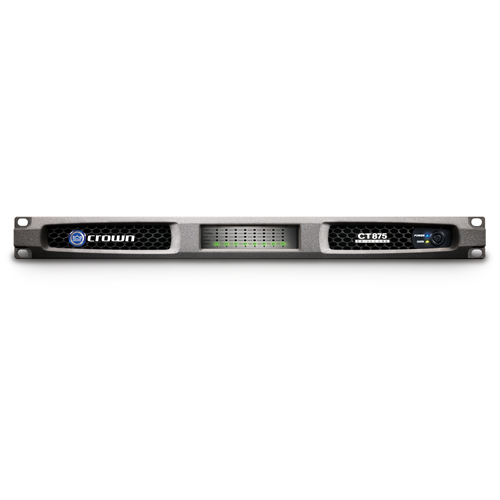

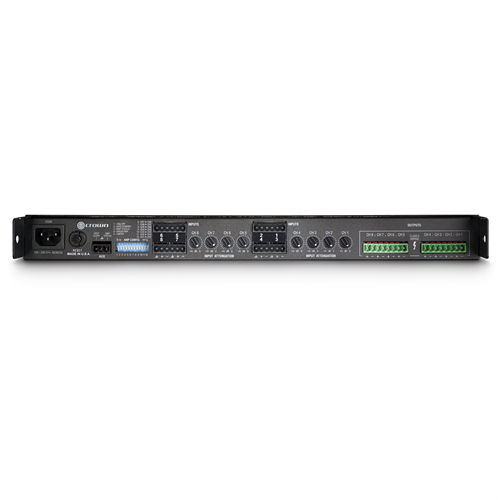

Crown CT875A - 8-Channel 75W Power Amplifier

Product Code: CWN CT875A

Key Features
Eight-channel, 75W @ 4 ohms Power Amplifier
$4,303.94 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Powering this remarkable amplifier is the pioneering technology of DriveCore, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.

Power Matrix

Features

  • Flexible Input Routing
  • Convection Cooled
  • Universal Power Supply
  • Integrated Life-Safety Features
  • Up to 8X125W in 1U chassis with no fan
  • DriveCore™ technology provides >90% efficiency with no compromise in performance
  • Patented Feedback and Protection Circuits
  • Amplifier is stable for 2 16 Ohm Loads
  • XFMR 4/8 needed for 70V/100V Applications
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Channels 8
Sensitivity 1.4 V
Rated Power Output (all channels driven) 75W per CH @ 4 ohms, 75W per CH @ 8 ohms
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) 110 dB
THD (full rated power, 20 Hz - 20 kHz) < 0.05%
Intermodulation Distortion (from 0 dB down to -30 dB) < 0.05%
Frequency Response (at 1W, 4/8 ohms) +/- 0.5 dB
Crosstalk (below rated power) 20 Hz to 1 kHz > 70 dB
Common Mode Rejection (20 Hz to 1 kHz) > 55 dB, typically > 70 dB
Voltage Gain 25 dB
DC Offset +/- 20mV
Idle Power Consumption (Standard Mode) 23.0W
Dimensions 1.75" x 19" x 15.19"
Weight 10lbs/4.54kg
Shipping Weight 15 lbs/6.8 kg
IEC Power Connector 15A
