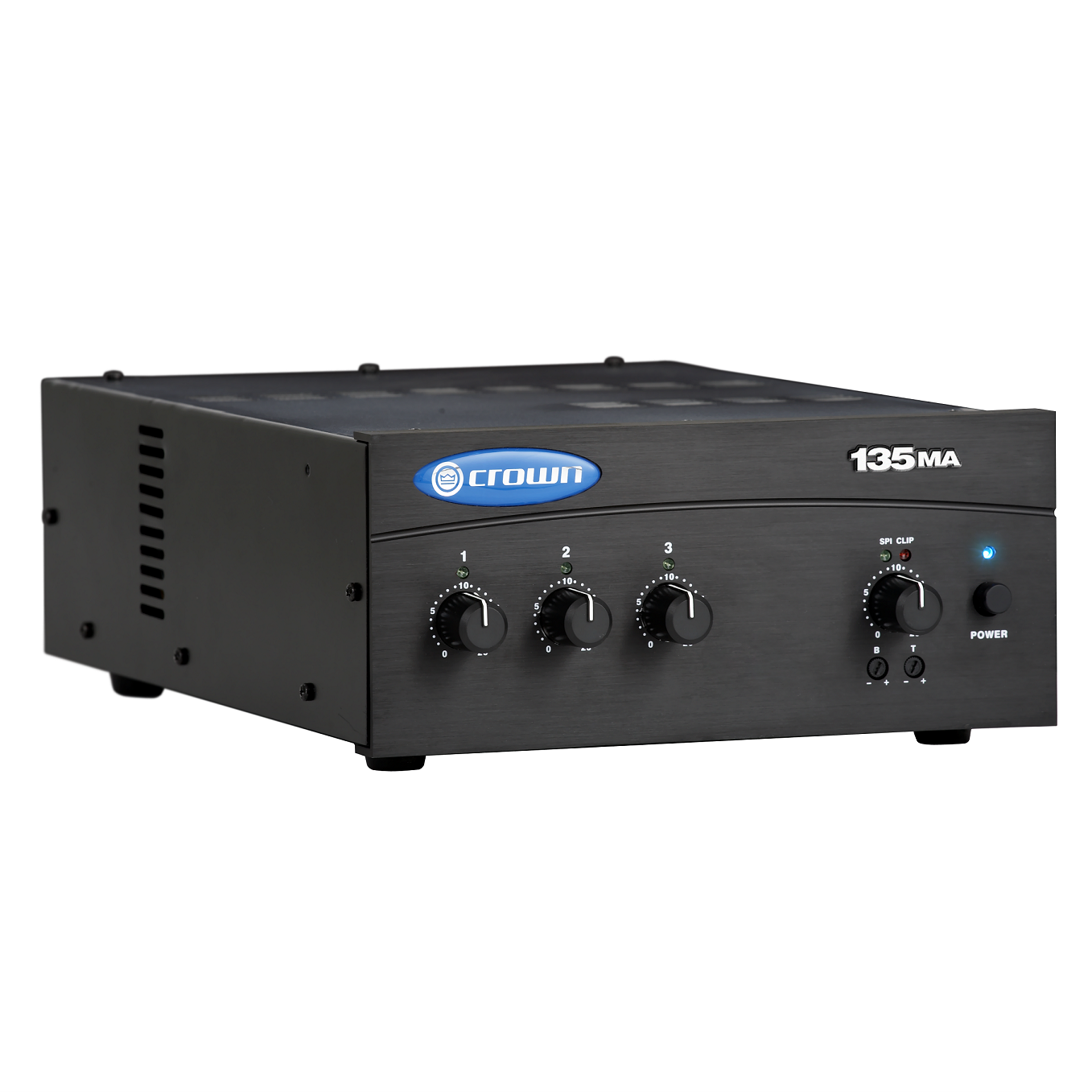

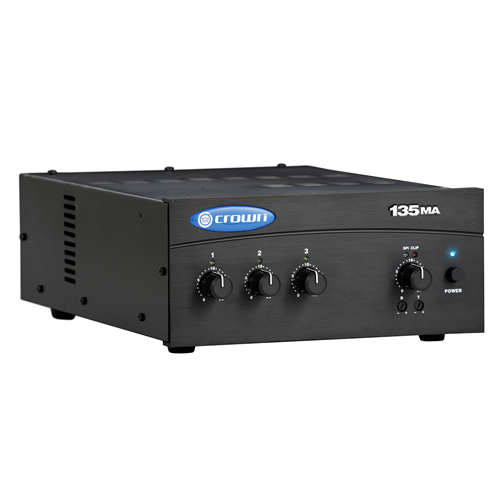

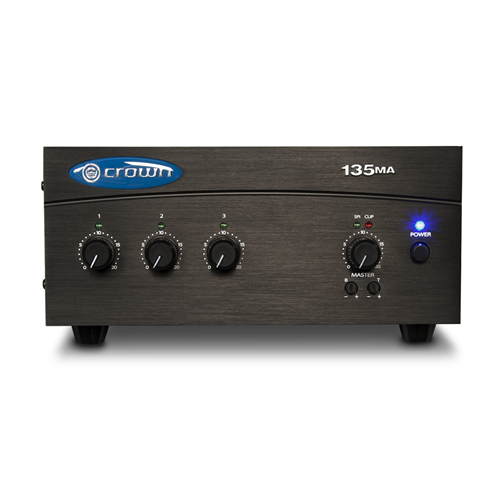

Crown 135MA - 3-Input 35W Mixer-Amplifier

Product Code: CWN 135MA

Key Features
Three channel, 35W @ 8 ohms power amplifier
$660.36 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Crown's 135MA and 160MA are high value mixer-amplifiers for commercial audio. They provide 8-ohm and constant-voltage outputs (70V and 100V). Typical uses are paging, background music, and music-on-hold. The 135MA provides 3 inputs (each with a volume control) and a 35W amplifier output. The 160MA provides 4 inputs (each with a volume control) and a 60W amplifier output. Other features include priority muting, voice activated muting, phantom power, and bass and treble controls.

Features:

  • 3 inputs (each with a volume control), and one 35W amplifier output channel in 135MA
  • 4 inputs (each with a volume control), and one 60W amplifier output channel in 160MA
  • Ideal for paging, background music, and music-on-hold

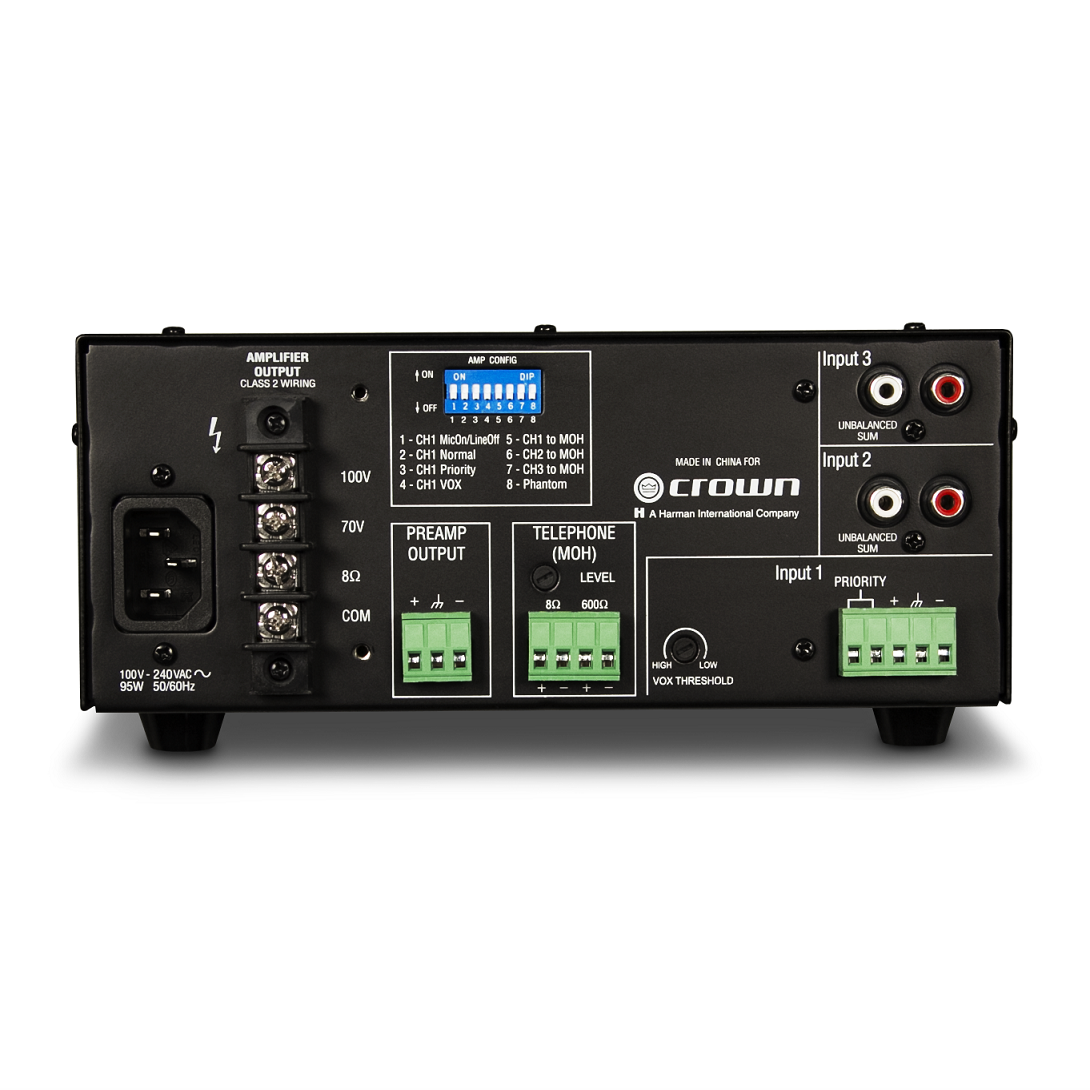

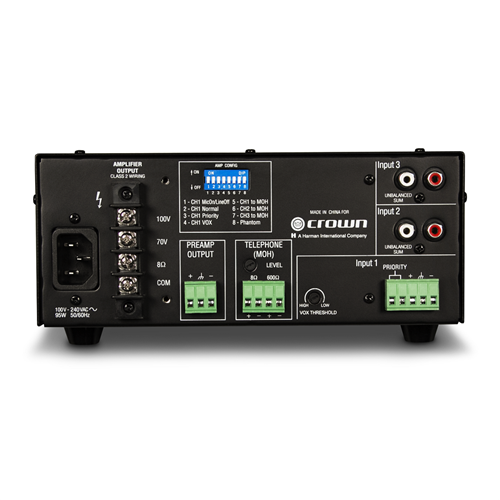

  • Balanced Phoenix-type mic/line input, telephone output, dual RCA stereo music inputs, screw-terminal speaker outputs
  • Priority muting by VOX or external switch
  • Bass and Treble controls on master output
  • Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
  • Warranty

    We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Response (at 1 watt from line out): 50 Hz to 20 kHz +/-1 dB, 19 Hz to 34 kHz - 3 dB
    Signal to Noise Ratio (ref. to rated power, master volume at minimum): Mic: > 58 dB, Line: > 60 dB, Telephone: > 60dB, Inputs 2 or 3: > 78 dB
    THD+Noise < 0.5% at rated power at 1 kHz, < 0.1% at 5W at 1 kHz
    Input Sensitivity (for full output at miximum gain): Input 1: Mic 3mV, Line 800 mV, Input 2: 400mV, Input 3: 400mV
    Input Impedance (nominal) Mic: 2.2 kilohms, Line: 10 kilohms, RCA: 10 kilohms
    Crosstalk -82 dB at 1 kHz (Ch. 1 line inpute 0.8V, Ch. 1 volume at minimum, other channel volumes at maximum)
    Line Output Level (nominal) 1V into 10 kilohms
    Phantom Power 15 VDC
    AC Line Voltages Available Universal Power Supply. Line voltage tolerance +15%, -20%
    Operating Temperature/Humidity 0 degrees C to 40 degrees C at 95% relative humidity (non-condensing)
    Storage Temperature -20 degrees C to 85 degrees C
    IEC Power Connector 15A
