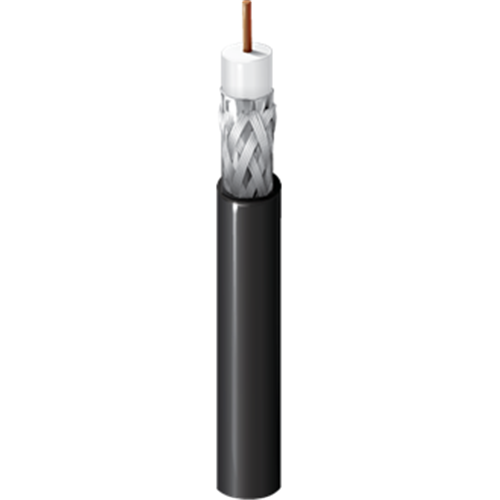

Belden Precision Digital Video Coax Cable RG59 / 20AWG Solid Conductor Yellow - 305m Reel

Product Code: 1505A 0041000

Key Features
20 AWG solid .032" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (95% coverage), PVC jacket.
$3.33 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents
20 AWG solid .032" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (95% coverage), PVC jacket.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Physical Characteristics (Overall)
# Coax1
AWG20
StrandingSolid
Conductor MaterialBC - Bare Copper
Dia. (mm)0.8128
Total Number of Conductors:1
Insulation MaterialGas-injected FHDPE - Foam High Density Polyethylene
Dia. (mm)3.683
Layer #1
Outer Shield Trade NameDuofoil
TypeTape
Outer Shield MaterialAluminum Foil-Polyester Tape-Aluminum Foil
Coverage (%)100
Outer Jacket MaterialPVC - Polyvinyl Chloride
Overall Nominal Diametre:5.918 mm
Mechanical Characteristics (Overall)
Operating Temperature Range:-30°C To +75°C
UL Temperature Rating:75°C
Bulk Cable Weight:46.134 Kg/Km
Max. Recommended Pulling Tension:231.306 N
Min. Bend Radius/Minor Axis:63.500 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:CMR
CEC/C(UL) Specification:CMG
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:Yes
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):01/01/2005
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
RG Type:59/U
UL Flame Test:UL1666 Vertical Shaft
CSA Flame Test:FT4
Suitability - Indoor:Yes
Plenum (Y/N):No
Plenum Number:1506A
Electrical Characteristics (Overall)
Other Electrical Characteristic 1:Impedance tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination. 75 +/- 1.5 Ohms
Other Electrical Characteristic 2:Return Loss tested in accordance with ASTM D-4566 paragraph 45.3, using a 75 Ohm fixed bridge and termination.
Sweep Testing:100% Sweep tested 5 MHz to 4.5 GHz.
Notes (Overall)
Notes:Also available in bundled versions. See 7794A through 7798A.

Accessories

Belden 1 Piece BNC Compression Connector to Suit Belden 1505A Coaxial Cable
Belden 1 Piece BNC Compression Connector to Suit Belden 1505A Coaxial Cable 1505ABHD1
Stock on order
$9.90 (EA)
Increase value Decrease value View Product
Kings Electronics BNC 75 Ohm Crimp Plug 12G Rated Suits Belden 1505A and 4505R
Kings Electronics BNC 75 Ohm Crimp Plug 12G Rated Suits Belden 1505A and 4505R 2065-2-9 KINGS
In Stock
$9.27 (EA)
Increase value Decrease value View Product
