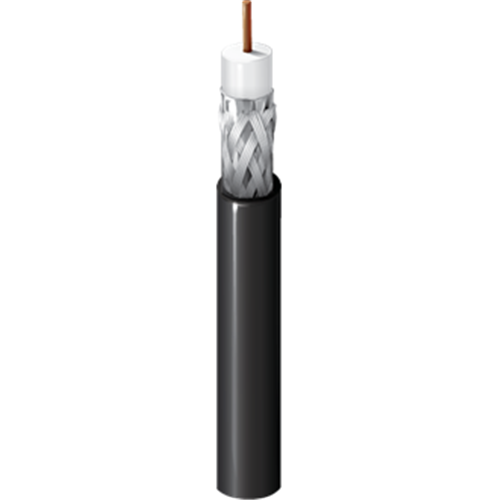

Belden Precision Digital Video Coax Cable RG59 / 20AWG Solid Conductor Orange - 305m Reel

Product Code: 1505A 0031000

Key Features
20 AWG solid .032" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (95% coverage), PVC jacket.
$3.33 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents
20 AWG solid .032" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (95% coverage), PVC jacket.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Physical Characteristics (Overall)
# Coax1
AWG20
StrandingSolid
Conductor MaterialBC - Bare Copper
Dia. (mm)0.8128
Total Number of Conductors:1
Insulation MaterialGas-injected FHDPE - Foam High Density Polyethylene
Dia. (mm)3.683
Layer #1
Outer Shield Trade NameDuofoil
TypeTape
Outer Shield MaterialAluminum Foil-Polyester Tape-Aluminum Foil
Coverage (%)100
Outer Jacket MaterialPVC - Polyvinyl Chloride
Overall Nominal Diametre:5.918 mm
Mechanical Characteristics (Overall)
Operating Temperature Range:-30°C To +75°C
UL Temperature Rating:75°C
Bulk Cable Weight:46.134 Kg/Km
Max. Recommended Pulling Tension:231.306 N
Min. Bend Radius/Minor Axis:63.500 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:CMR
CEC/C(UL) Specification:CMG
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:Yes
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):01/01/2005
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
RG Type:59/U
UL Flame Test:UL1666 Vertical Shaft
CSA Flame Test:FT4
Suitability - Indoor:Yes
Plenum (Y/N):No
Plenum Number:1506A
Electrical Characteristics (Overall)
Other Electrical Characteristic 1:Impedance tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge and termination. 75 +/- 1.5 Ohms
Other Electrical Characteristic 2:Return Loss tested in accordance with ASTM D-4566 paragraph 45.3, using a 75 Ohm fixed bridge and termination.
Sweep Testing:100% Sweep tested 5 MHz to 4.5 GHz.
Notes (Overall)
Notes:Also available in bundled versions. See 7794A through 7798A.
