VIDEO: 2 ROWS OF 16 JACKS MINI-WECO FULL NORMAL WITH 75 OHM TERMINATIONAUDIO: 2 ROWS OF 24 JACKS BANTAM (TT) FULL NORMAL ISOLATED GROUNDS E3 CONNECTORSPANEL: 2 RU 5" DEEP CHASSIS HALF CHASSIS ENCLOSURE

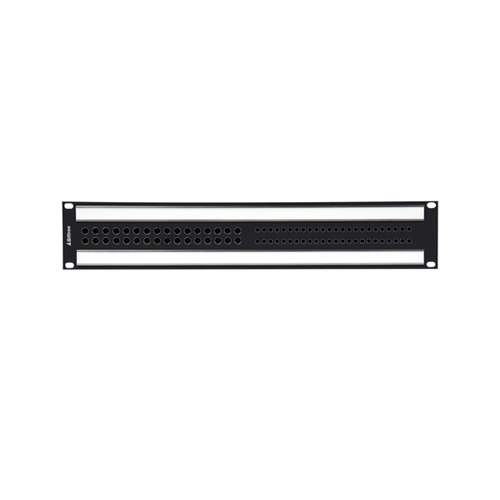

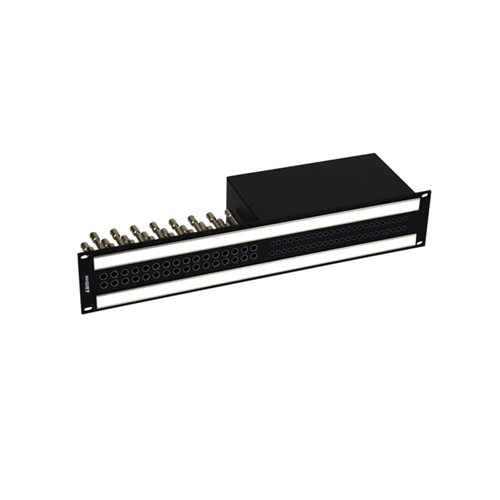

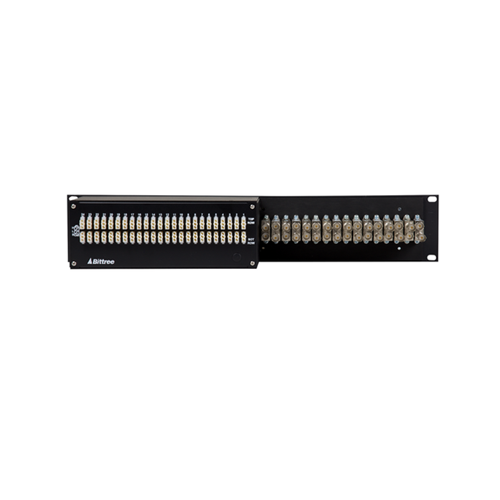

Bittree® Integrated (IPS) Audio/Video Patchbay in 2 R• Front panel jack arrangement: 2x16 Mini-WECO Video, 2x24 TT (Bantam) AudioVideo Specifications:• Mini-WECO (midsize) high-bandwidth (3Ghz) video jacks• Dual body, self-normalling with 75 ohm termination• SMPTE 259M, 292M and 424M compliant• Staggered BNC rear interface Audio Specifications:• Full normal with isolated grounds, mono (even) jack spacing• E3 rear interface with mating hardware included:
TT (Bantam) Jack Properties (Audio): • Rated to 30,000 minimum insertion cycles• Copper-nickel-silver alloy leaf springs with gold-alloy cross bar switching contacts and nickel-plated sleeve bushings• Rugged nickel-plated, cold-rolled steel box-frame constructionPanel Features:• 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish• Rear-mounted jack modules• Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel• 5" (12.7 cm) deep fully enclosed half-chassis• 2 x DS800-15 designation strips:
Audio/Video and Audio/Video/Data. Varying Configurations in 2 RU
We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
