VIDEO: 2 ROWS OF 12 JACKS STANDARD WECO FULL NORMAL WITH 75 OHM TERMINATIONAUDIO: 2 ROWS OF 12 JACKS 1/4" LONG-FRAME FULL NORMAL ISOLATED GROUNDS E3 CONNECTORSPANEL: 2 RU 5" DEEP CHASSIS HALF CHASSIS ENCLOSURE

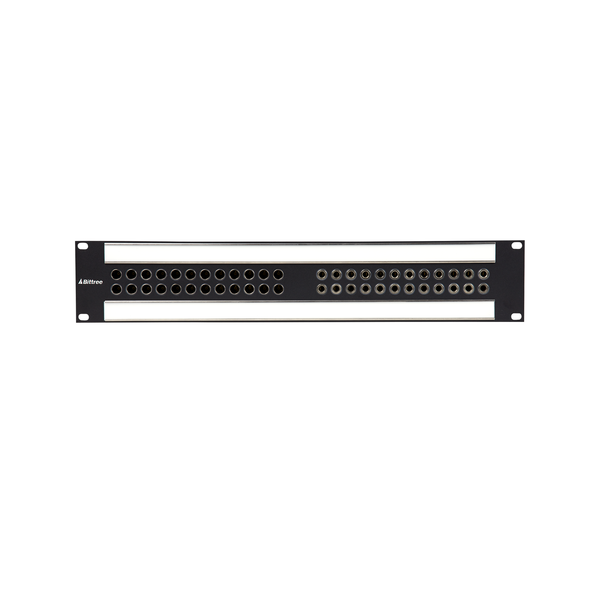

Bittree® Integrated (IPS) Audio/Video Patchbay in 2 R• Front panel jack arrangement: 2x12 Standard WECO Video, 2x12 1/4 Inch Long-Frame Audio

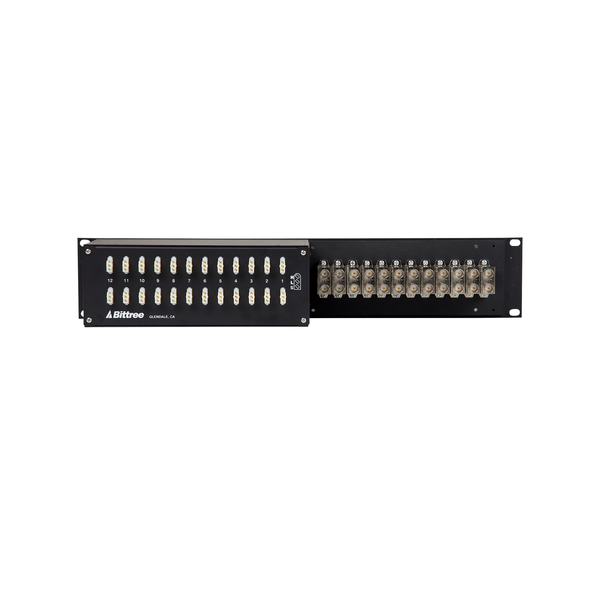

Video Specifications:• Standard WECO high-bandwidth (3Ghz) video jacks• Dual body, self-normalling with 75 ohm termination• SMPTE 259M, 292M and 424M compliant• BNC rear interface

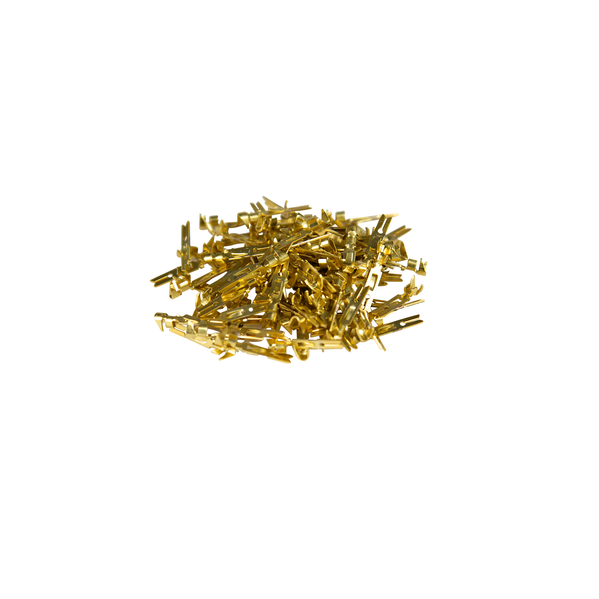

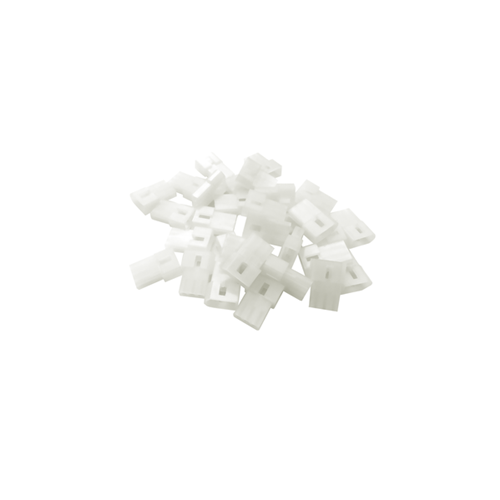

Audio Specifications:• Full normal with isolated grounds, mono (even) jack spacing• E3 rear interface with mating hardware included:- 24 x E3M connector housings (3-pin male)- 72 x EPIN crimp contacts (gold-plated)
1/4 Inch Long-Frame Jack Properties (Audio): • Rated to 30,000 minimum insertion cycles• Copper-nickel-silver alloy leaf springs with gold-alloy cross bar switching contacts and nickel-plated sleeve bushings• Precision-stamped reinforced steel jack frame
Panel Features:• 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish• Rear-mounted jack modules• Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel• 5" (12.7 cm) deep fully enclosed half-chassis• 2 x DS800-15 designation strips:- Stainless-steel sliders with white styrene and non-glare Lexan inserts
Audio/Video and Audio/Video/Data. Varying Configurations in 2 RU
We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
