Roadworx RW610222/18BK Axlink Control Cable 300m Reels

Product Code: RW61022218BK300

Key Features

18BK Axlink Control Cable 300M Reels

$3.71 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

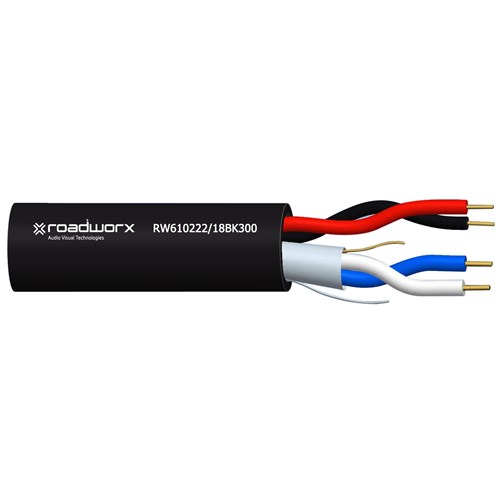

Roadworx RW610222/18BK Axlink Control Cable 300M Reels

Description

[(7/0.25TC x 1P + Foam PE + Drain Wire + Al. Foil) + (16/0.25TCx 1P + PVC Insulation)] + Rip Cord + PVC Sheath Φ6.7mm

Applicable Standards

N/A

Suitable Applications

For signal transmission & low voltage connection.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

22AWG Twisting Pair
Conductor 7/0.25+/-0.006TC
Insulation Pair: 1
Material: Foam PE
Colour: Blue, White
Min. Thickness 0.50mm / Nom. Thickness ≥0.60mm / Nom. O.D 2.05+/-0.1mm
Screen Al. Foil 100% Coverage
Drain Wire

7/0.20+/-0.006TC
18AWG Twisting Pair
Conductor

16/0.25+/-0.006TC
Insulation

Pair: 1
Material: PVC
Colour: Red, Black
Min. Thickness 0.26mm / Nom. Thickness ≥0.30mm / Nom. O.D 1.85+/-0.1mm
Filler

Rip Cord
Sheath Material: PVC / Colour: Black
Min. Thickness 0.80mm / Nom. Thickness ≥1.0mm / Nom. Sheath O.D 6.7+/-0.2mm
Spark Voltage : 3000V a.c

Electrical Properties

22AWG Twisting Pair
Conductor Max D.C Resistance 55.1 ohm/km 20°C
Characteristic Impedance 100 ohm
Nom. Mutual Capacitance 46 pF/m @ 1KHz
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min
18AWG Twisting Pair
Conductor Max D.C Resistance 24.1 ohm/km 20°C
Nom. Mutual Capacitance 96 pF/m @ 1KHz
Voltage Test: Core to Core 1000V a.c/1min

Physical Properties

18AWG Twisting Pair
Insulation Elongation ≥100%
Insulation Tensile Strength  ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 158N
Min. Bend Radius (install) 67mm
Approximate Mass 6.25kg/100m
Sheath Printing ROADWORX RW610222/18 CONTROL CABLE 1 PAIR (meter marking)
