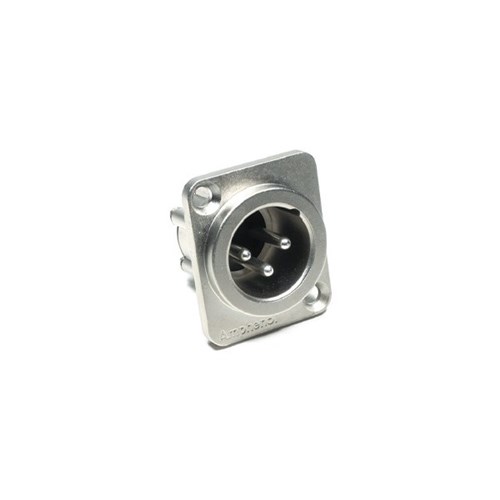

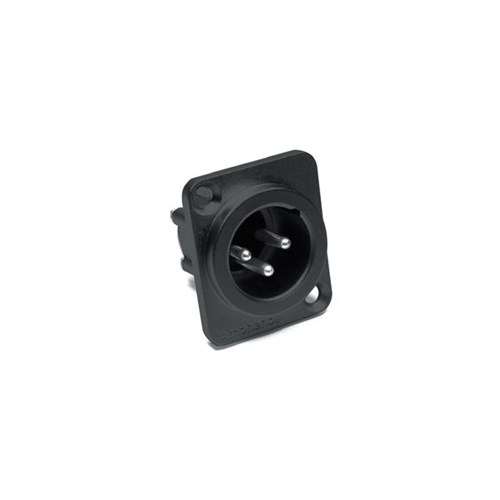

Amphenol Plug Cable Machined 3 Pin

Product Code: AX3M

Key Features
  • Zinc Diecast Shell.
  • D size housing can be front or rear-mounted using the same panel cutout.
  • Solder Bucket connections.
  • Vertical PCB mounting.
  • Precision machined or Stamped contacts (3 pins only).
  • Leading first mate last break socket contact.
  • Positive latch lock system.
  • M3 threaded holes (Optional).
;
$7.77 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Amphenol AX3M Plug Cable Mach 3 Pin

The metal chassis mount connectors are designed for the audio user where durability, reliability and strength across a wide range of applications are important. All products are manufactured to the highest quality standards and will withstand the harshest environments. This range complies with IEC268-12 and AES 14-1992 standards.

Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of contacts 3
Termination Solder Bucket / Printed Circuit Board (PCB)
Max. Wire Gauge - Stranded wire: 14AWG
Flammability rating of plastics UL94V-0
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

Electrical Specifications

Service Voltage RMS 133V
Test Voltage AC RMS 1400V
Current carrying capacity: 15A
Typical Contact Resistance ≤3mΩ
Insulation Resistance ≥1000MΩ

Climactic Specifications

Protection Class IP40
Operating Temperature -25 C to +75 C (-13°F to +167°F)
