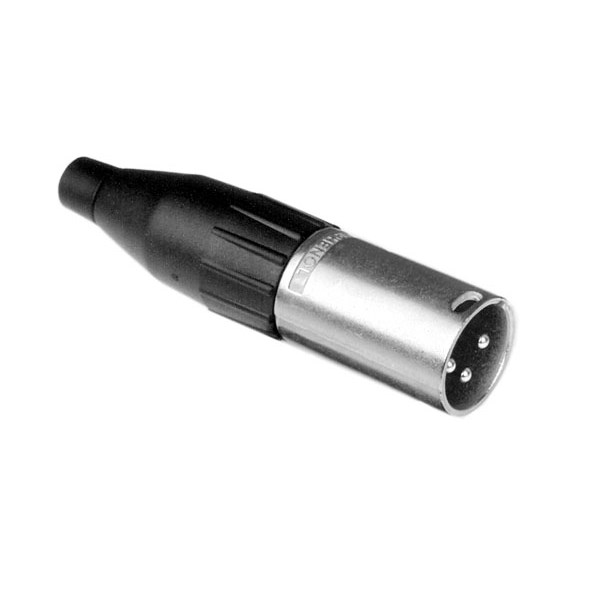

Amphenol Metal Plug Cable Machined 3 Pin Large Clamp

Amphenol Metal Plug Cable Mach 3 Pin Large Clamp

Amphenol Australia have been manufacturing and designing innovative XLR connectors since 1955. The AC series cable connector range complies with IEC268-12 and AES 14-1992 standards. CSA File Number 68598.

• Nickel Shell Finish
• Silver Plating Contact Finish
• Male - 3 pole
• Length: 82.0 mm
• Diameter: 19.0 mm
• Large Cable Clamp

Features

• AC series XLR connectors feature the unique Australian design and patented “Jaws” cable retention system
• A leading first mate last break socket contact is standard on all female connectors (Pin 1)
• The “Jaws” cable retention system provides up to 44kg (100lb) of strain
• The AC series connector can be quickly and easily assembled without screws – by hand or portable termination tool (Part number T2860)
• Available in 3, 4, 5, 6A and 7 contact arrangements
• Compatible with all other XLR brands

Options

• Solder Bucket termination
• Thermoplastic shell
• Zinc Diecast shell – Satin Nickel Finish
• Zinc Diecast shell – Black Polyester Finish
• Gold, Silver or Tin Plated contacts
• Bulk Style Packaging
• Single Bag packs
• Precision machined contacts
• Cost effective stamped contacts on 3 pole
• Standard Jaws cable clamp, Cable O.D 3mm to 6.5mm (0.118” to 0.255”)
• Large Jaws cable clamp, Cable O.D 6.5mm to 8mm (0.255” to 0.314”)
• Metal Boots / Backshells
• Coloured Boots / Backshells
• Coloured Identification rings
• Termination / Assembly tooling
