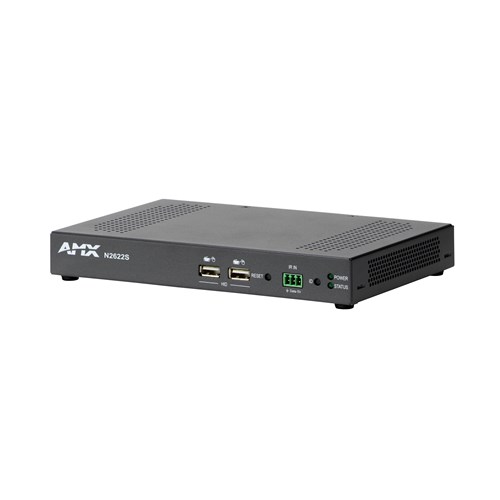

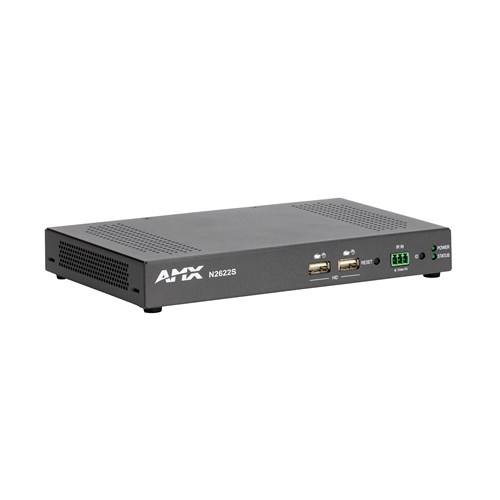

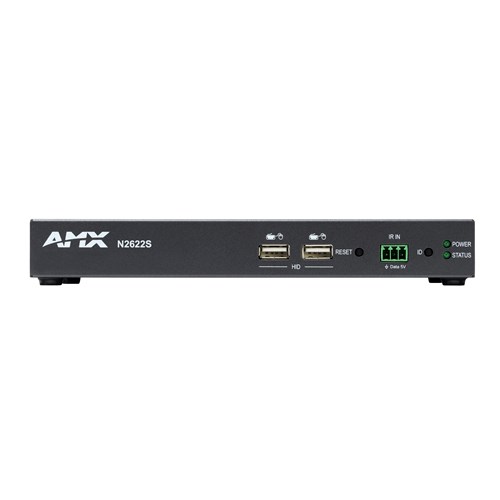

AMX NMX-DEC-N2622S MWC Dante AV-A 4K60 4:4:4 and H.264 1080p Multi-Codec Decoder

Product Code: AMX N26D001

Key Features
  • Dante AV-A
  • High-Quality 4K60 MWC decoding with sub-2ms latency
  • High-Compatibility, Low-Bandwidth 1080p H.264 decoding
  • Virtual Network USB 2.0 Hub
  • High security network support and features, including multicast, VLAN tagging and QoS
  • PoE+ powered with low-power mode for energy savings
  • HControl
  • Open Direct-Control API
  • UL2043 – Plenum Space certification
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

AMX NMX-DEC-N2622S MWC Dante AV-A 4K60 4:4:4 and H.264 1080p Multi-Codec Decoder

The AMX SVSI NMX-DEC-N2622S is a cost-effective, powerfully robust multi-codec decoder in a stand-alone box form factor. It can decode the high-quality, low-latency 4K60 4:4:4 MWC codec output by N2600 encoders that is ideal for streaming both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.

High-compatibility, low-bandwidth 1080p H.26x decoding is also included and perfect for distributing video over congested networks.

N2600S models support our Virtual Network USB 2.0 Hub technology. These models not only support transport of full-bandwidth USB 2.0 signals, but also enable USB device signals from up to 4 decoders to be combined and connected to a single USB host on an encoder. A laptop on the meeting room table can now simultaneously connect to multiple remote USB devices such as a camera near the display and an audio DSP in an equipment closet.

Other key features include video preview images viewable from the built-in web interface or from a touch panel and enhanced support for high-security networks.

The NMX-DEC-N2622S supports Dante AV-A, a standard for AVoIP devices created to allow for the interoperability of multiple devices on the network. With Dante AV-A, the NMX-DEC-N2622S is compatible with Dante Controller, Dante Domain Manager, and Dante Director.  All signal routing, configuration, and IT-level management for your audio and video devices can now be managed using the same tools.

Compatible encoders include the NMX-ENC-N2612S Encoder, NMX-ENC-N2612S-C Encoder Card and NMX-ENC-N2615-WP Encoder Wallplate. Alternatively, the NMX-DEC-N2622S can decode a Dante AV-A stream generated by any compatible streaming device or an H.26x stream generated 3rd-party devices, N3300 series encoders, N3000 series encoders, or the NMX-WP-N3510 Windowing Processor.

Common Applications

The N2600 Series is ideal for almost any streaming application but is especially applicable for colleges and universities, corporate, casinos, hospitality, government and many more. High-quality, low-latency 4K60 4:4:4 MWC streaming is perfect for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms and bars. N2600 models with the ‘S’ designation add high-compatibility, low-bandwidth 1080p H.26x streaming for distributing video in installations with congested networks.
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Video Inputs Network video over Ethernet via RJ45 port
Video Outputs HDMI
Video Resolution Support Supports most common resolutions up to 4096 x 2160 - Reference the user manual for specific resolution support.
Audio Inputs Network PCM or Dante audio over Ethernet via RJ45, HDMI Loop-Out
Audio Outputs Embedded audio on HDMI or Analog Stereo (Balanced)

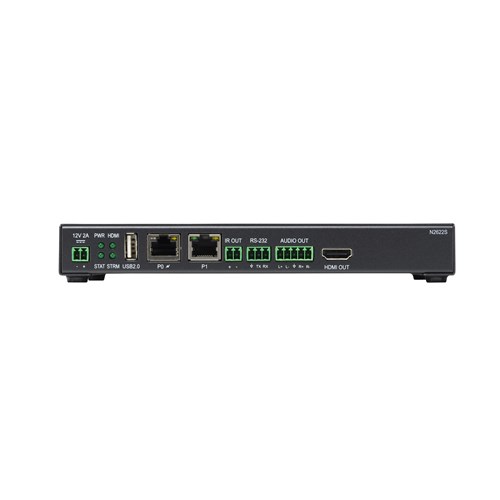

Ports +12V 2A DC power input, USB Type A USB 2.0 Device Port, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video output, (2) USB Type A HID Device port (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel)
Environmental Temperature - 32° to 104°F (0° to 40°C) Humidity - 10% to 90% RH (non-condensing) Heat Dissipation - Up to ~85 BTU/hr
Dimensions (H x W x D) 1 1/6" x 7 7/8" x 5" (26.6mm x 200mm x 127mm)
Product Weight 2.16 lbs. (Approx. 0.97kg)
FG Numbers AMX-N26D001
