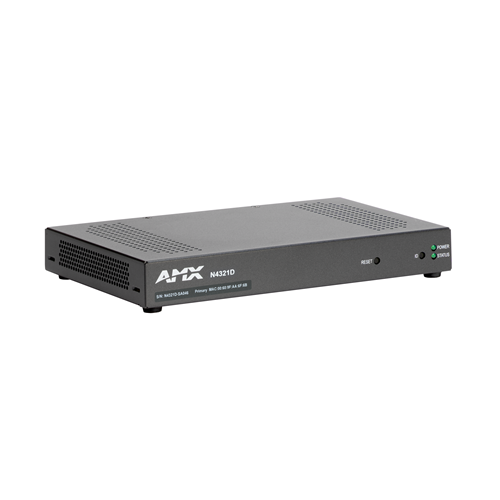

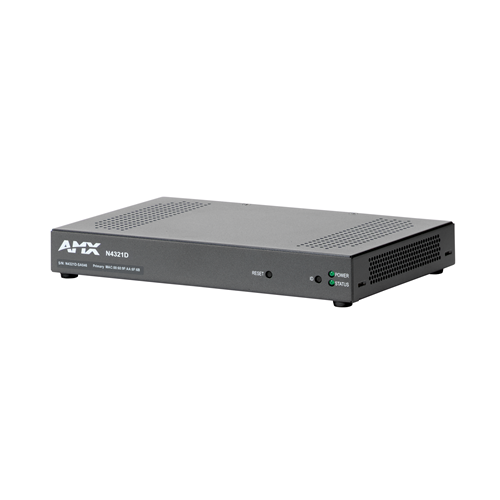

AMX NMX-ATC-N4321D Audio-over-IP Transceiver with Dante and AES67

Product Code: AMX N43T001

Key Features
  • Simplifies interoperability between SVSI and other IP audio networks
  • Empowers powerful audio transcoding capabilities for conversion to and from Dante, AES67, streaming PCM and analog
  • Two auto-sensing gigabit ethernet ports
  • PoE power eliminates the need for an external power supply and requires a single network cable
  • An audio matrix with any number of inputs and outputs can be constructed
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

AMX NMX-ATC-N4321D Audio-over-IP Transceiver with Dante and AES67

The AMX N4321D Audio-over-IP Transceiver is a powerful solution for connecting independent IP and analog audio networks. With support for Dante, AES67, and PCM audio-over-IP streams as well as balanced and unbalanced analog audio, the N4321D can bridge the most popular audio networks. Whether the project requires converting from PCM to Dante, Dante to analog, analog to AES67, or nearly any other combination of these technologies, this transceiver makes it easy to integrate SVSI solutions with other audio networks.

Perfect for point-to-point or point-to-multi-point audio delivery, the N4321D provides audio matrix switching and distribution using the same control options as SVSI's Networked AV video switching and distribution solution. Additionally, an open API makes it compatible with any AMX or third-party controller on the market.

With two auto-sensing gigabit Ethernet ports, units can also be used to bridge low-latency multi-channel audio between separate networks. One Ethernet port is PoE for use with a PoE switch, eliminating the need for an external power supply.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio Inputs 2-Channel user selectable balanced or unbalanced audio.
2-Channel Dante/AES67 audio
8-Channel PCM audio
Audio Outputs 2-Channel balanced audio (5-pin phoenix connector)
2-Channel Dante/AES67 audio
8-Channel PCM audio
2-Channel unbalanced audio (headphone jack)

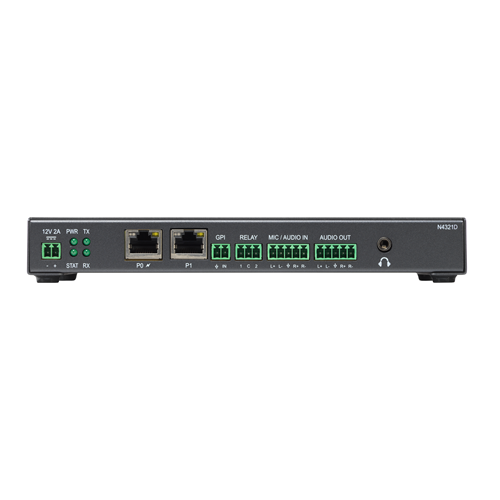

Ports +12V 2A DC power input, (P0) Gigabit Ethernet port with PoE support, (P1) Gigabit Ethernet port, (GPI) 2-pin 3.5mm screw terminal, (Relay) 3-pin 3.5mm screw terminal, (MIC / Audio In) 5-pin 3.5mm screw terminal, (Audio Out) 5-pin 3.5mm screw terminal, headphone jack
Environmental Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Product Dimensions (H x W x D) 1.04” x 7.87” x 5” (26.6 mm x 200 mm x 127.1 mm)
Product Weight 1.5lbs (0.7kg)
SKU Numbers AMX-N43T001
