Amphenol Panel Plug 85 Contact

Product Code: MP-4164-85S

Key Features

MP-41 Series - 13 to 150 contacts - Multipin Chassis Mounts

$424.75 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

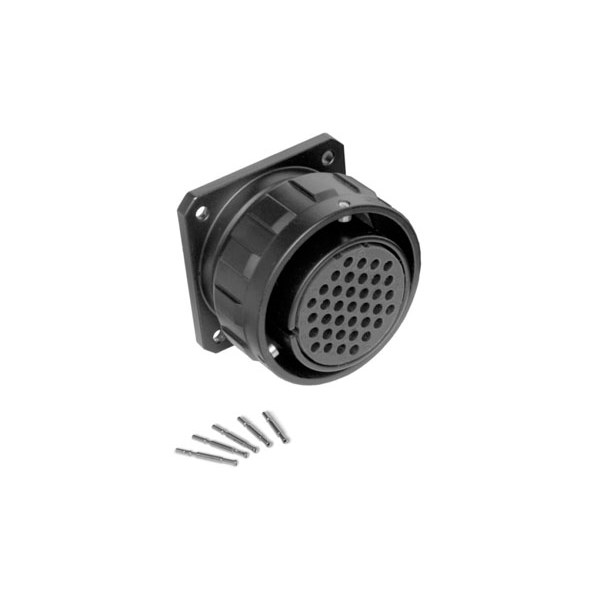

Amphenol Panel Plug - 85 Connectoract

Amphenol’s MP-41 series of multipin connectors utilise the same design principals of the rugged Mil-C-5015 military connectors. They can withstand high shock and vibration environments and are ideal for tough on-road applications. Featuring a quick mating bayonet coupling with an audible full mating feature ensures a positive connection every time. Available from 13 to 150 pins with contacts supplied with each connector as standard.

Features
  • 13 to 85 pins with Crimp/Solder bucket contacts
  • 150 pins with Crimp contacts only
  • Industry standard compatible
  • 2000 mating cycles
  • 4 to 48 channels
  • Positive bayonet locking
  • Gold plated contacts
  • Synthetic insert
  • IP67 rated
  • Metal housings
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of contacts 85
Number of channels 28
Termination Solder / Crimp “Combo”
Wire Gauge - Stranded wire: 16AWG - 20AWG
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Operating Voltage at Sea level - DC
Operating Voltage at Sea level - AC

250V (Not suitable for domestic applications above 50V)

200V (Not suitable for domestic applications above 50V)
Test Voltage AC RMS 1000V

Current carrying capacity

13A
Typical Contact Resistance 3.46mΩ
Insulation Resistance 5000MΩ

CLIMATIC CHARACTERISTICS

Protection Class  IP67 (when mated)
Operating Temperature -55°C to +125°C (-67°F to +257°F)

MECHANICAL CHARACTERISTICS

Cable Retention PG Gland
Mechanical Operations 2000 mating cycles

MATERIALS

Connector / Shell Finish Aluminium Alloy / Black
Insert Synthetic Insert to MIL-R-3065
Male pin contact / Plating Brass / Gold plated
Female socket contact / Plating

Brass / Gold plated

CLAMPING CHARACTERISTICS

PG Gland 29
Cable Clamping range mm (inches) 14-25 (0.55”-0.98”)
