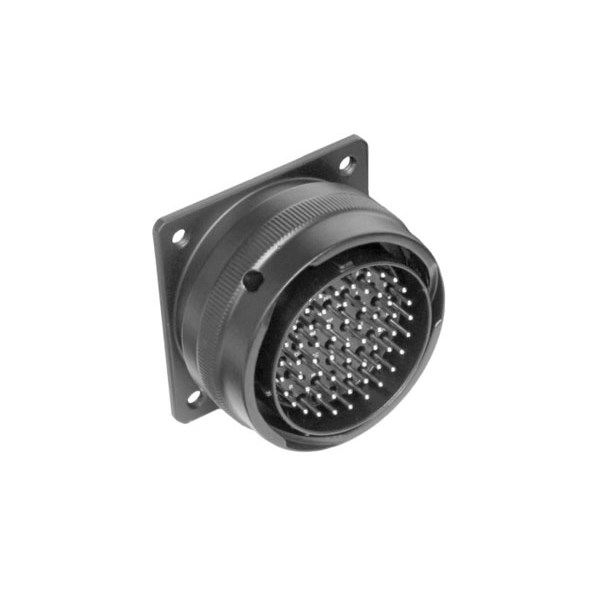

Amphenol Panel Plug 39 Contact

Product Code: MP-6256-39P

Key Features

MP-62/65 Series - 39 to 61 contacts - Multipin Chassis Mounts

$110.34 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Amphenol Panel Plug - 39 Connectoract

Amphenol’s Multipin MP-62/65 series of circular connectors utilise the same design principles as the Mil-C-26482 military connectors. Featuring a three point quick mating bayonet coupling and five key polarisation ensuring a positive connection every time. Available in two contact pin layouts 39 and 61 with gold plated solder contacts fitted as standard.

Features
  • Environmental resistant
  • Gold plated solder contacts
  • Neoprene insert
  • Positive bayonet locking
  • Protective dust caps (available)
  • Metal housings
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Number of contacts 39
Number of channels 12
Termination SOLDER
Wire Gauge - Stranded wire: 37 x 24AWG-20AWG
2 x 20AWG-16AWG
Environmental Complies with EU RoHS 2 Directive 2011/65/EU

ELECTRICAL CHARACTERISTICS

Operating Voltage at Sea level - DC
Operating Voltage at Sea level - AC

600V (Not suitable for domestic applications above 50V)

600V (Not suitable for domestic applications above 50V)
Test Voltage AC RMS 1500V

Current carrying capacity

37 x 7.5A

2 x 13A
Insulation Resistance 5000MΩ

CLIMATIC CHARACTERISTICS

Protection Class  IP67 (when mated)
Operating Temperature -55°C to +125°C (-67°F to +257°F)

MECHANICAL CHARACTERISTICS

Cable Retention PG Gland / NPT Thread
Mechanical Operations 500 mating cycles (minimum)

MATERIALS

Connector / Shell Finish Aluminium Alloy / Black
Insert Neoprene
Male pin contact machined - Plating Brass / Gold plated
Female socket contact machined - Plating

Brass / Gold plated

CLAMPING CHARACTERISTICS

PG Gland 16
Cable Clamping range mm (inches) 9-14 (0.35”-0.55”)
