AKG CSX BIR10 10 channel infrared control unit and CS5 breakout box

Product Code: AKG 6500H00160

Key Features
Breakout box and IR base unit
$11,530.45 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The CSX BIR10 is the infrared central control unit for the CSX IRS10 infrared language distribution system, the core element that provides the utmost security for wireless translation systems.

The system is designed to operate in two modes, both feeding up to 10 channels. First, the CSX BIR10 can be used as part of AKG´s CS5 system. In this mode the unit acts as infrared modulator and/or as breakout box to provide channels of the CS5 data ring to external devices via RCA connectors on the back panel. Second, as a stand alone IR system, to feed external devices (e.g. a wireless system) These signals cannot NOT be fed into a CS5 data ring.

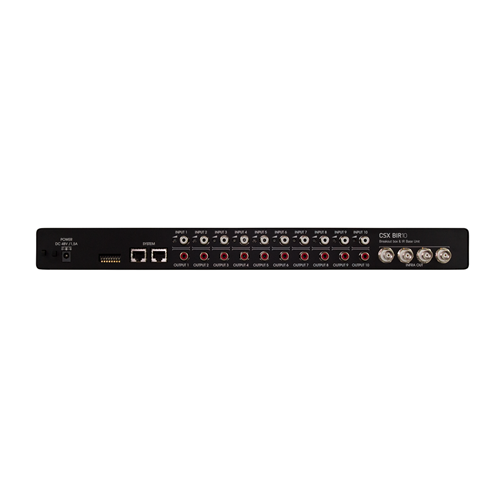

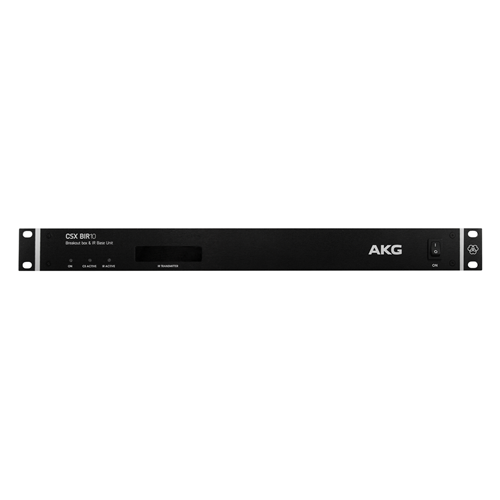

It is also possible to mix inputs – take a few external sources and a few from the CS5 data ring. 4 BNC connectors are used for 4 strings of radiators that can be daisy chained. Four IR LED´s provide the infrared signal in the technician room to enable the technician to control what is transmitted in the venue hall. The CSX BIR10 is easily expandable to handle virtually any size room.

Features

Digital transmission with PPM technology

Effective audio and radiation quality control & easy to install

For CS5 or standalone system

Works with all kinds of analogue inputs

Unlimited expansion of radiators

For any room size

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Number of languages 10

Dimensions

Width 482 mm
Height 44 mm
Depth 108 mm
Net Weight 1450 g

Design

Body metal
Finish matte black
