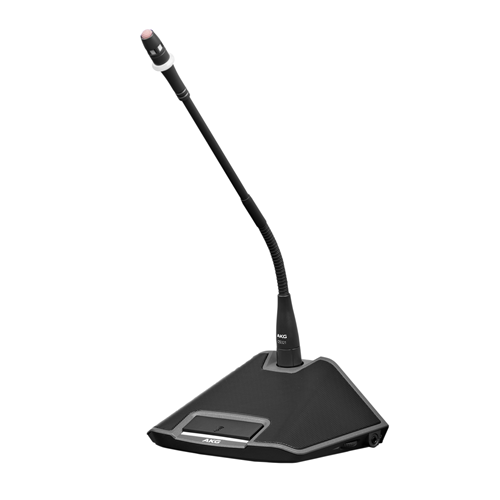

AKG CS3 DU 30 Delegate microphone station

Product Code: AKG 3361H00210

Key Features
Delegate Unit with 30cm/12in gooseneck
$1,078.24 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The CS3 DU microphone station is the basic delegate unit for the CS5 conference systems. It provides both an integrated loudspeaker as well as two 3.5 mm stereo headphone outputs and could be used for up to 2 delegates. Depending on the selected operating mode, the PTT key enables the speaker to directly switch on their microphone or to enter the system waiting list.

The CS3 DU comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30 cm long gooseneck and the 50 cm long CS521.

The CS3 DU set-box contains a 2 m long Plug n Play connector cable as well as the preferred microphone choice.

Features

Delegate station with PTT button intuitive and easy to use

For maximum flexibility for any type of conference situation

Interchangeable microphones

For near field reinforcement

Built in speaker

For up to two delegates

Two separate 3.5 mm stereo jacks to connect headphones

For a quick set-up

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Power Supply DC24V Supplied by the Base Unit
Power Consumption 3W
Loudspeaker Power 2W
SNR >80dB
Frequency Response 50Hz – 20kHz
Intercommunication DIN 8-pole
Headphone Output 9dBu, 8-32ohm, 3.5mm
Crosstalk Attenuation >80dB
Harmonic Distortion <0.1%
Operating Temperature 0°C to 40°C at 95% relative humidity (non-condensing)

Dimensions

Length 170 mm
Width 143 mm
Height 63 mm
Weight 1kg
