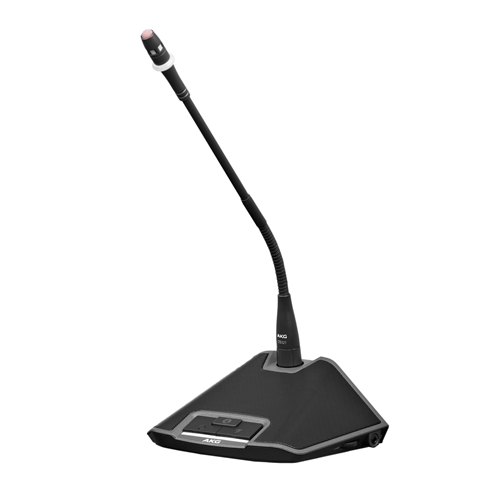

AKG CS3 CU 30 Chairman microphone station

Product Code: AKG 3361H00220

Key Features
Chairman Unit with 30cm/12in gooseneck
$1,280.42 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The CS3 CU chairman unit is a microphone station with two operating modes. In priority call mode, the user can manually mute all connected delegate stations. In next in line mode the CS3 CU automatically activates the next delegate station in the waiting list. The station provides a built in speaker and 2 x 3.5 mm stereo jacks to connect headphones for up to two delegates.

The CS3 CU comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30 cm long gooseneck and the 50 cm long CS521.

The CS3 CU set-box contains a 2 m long Plug n Play connector cable as well as the preferred microphone choice.

Features

Chairman functions with "Priority" and "Next in line" buttons

Give full control over the entire conference/system

Interchangeable microphones

Maximum flexibility for any type of conference situation

Built in speaker

For near field reinforcement

Two separate 3.5 mm stereo jacks

To connect headphones for up to two delegates

Plug 'n' Play set

Includes all components for a quick set-up

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Power Supply DC24V Supplied by the Base Unit
Power Consumption 3W
Loudspeaker Power 2W
SNR >80dB
Frequency Response 50Hz-20kHz
Intercommunication DIN 8-pole
Headphone Output 9dBu, 8-32ohm, 3.5mm
Crosstalk Attenuation >80dB
Harmonic Distortion <0.1%
Operating Temperature 0°C to 40°C at 95% relative humidity (non-condensing)

Dimensions

Length 170 mm
Width 143 mm
Height 63 mm
Weight 1kg
