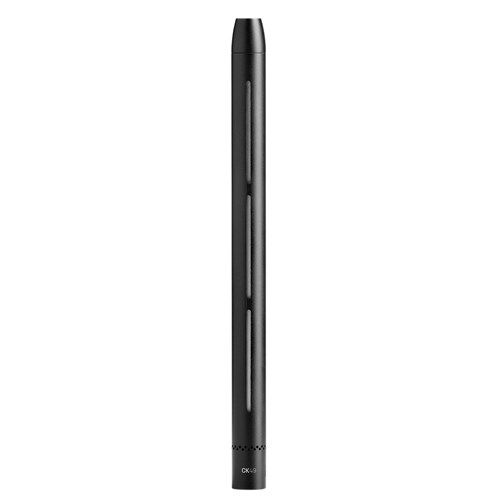

AKG CK49 Reference shotgun condenser microphone capsule

Product Code: AKG 3165H00030

Key Features
Reference shotgun condenser microphone capsule
$912.70 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The CK49 is a reference shotgun condenser microphone capsule with an 80° pickup angle and clean off-axis response. It is an ideal tool for inexperienced speakers; when people talk into the microphone from greater distances it focuses on the voice, and when they talk into it from very short distances it reduces pop-noise. Its special capsule is a further development of the legendary CK47 capsule. Like its predecessor, it has been designed using AKG s unique staple technology for brilliant studio-quality audio performance.

The CK49 capsule is integrated into an extremely slim and rugged metal housing. It fits all gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module. To prevent contact problems the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The CK49 comes complete with a windscreen that efficiently reduces wind and pop noise.

Features

Tight, hypercardioid polar pattern

Eliminates off-axis noise

80° pickup angle

For inexperienced speakers and greater distances

Sophisticated staple capsule technology

For studio-quality audio performance

Highly reliable capsule contacts

Prevent contact problems and ensure extra-long life

Highly efficient windscreen

Reduces wind and pop noise equally

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Polar Pattern Hypercardioid
Audio frequency bandwidth 60 - 20000 Hz
Sensitivity 10 mV/Pa
Maximum SPL for 3% THD 136 dB
Equivalent noise level 30 dB-A
Signal to Noise 64 dB-A

Dimensions

Height 20 mm
Diameter 9 mm
Net Weight 24.9 g

Audio Output

Type Modular Series Standard
