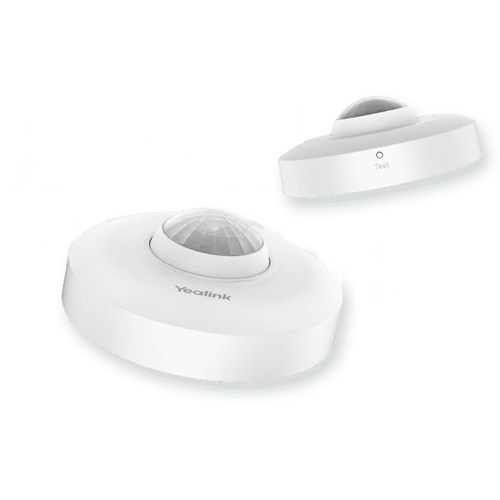

Yealink Multifunctional Wireless Room Occupancy Sensor

Product Code: YL-ROOMSENSOR

Key Features
  • Highly accurate room occupancy sensing with Passive Infrared Technology
  • Wireless and compact design
  • Magnet mounting
  • 20° adjustable angle
  • Light, temperature and humidity detection
  • Device management over cloud server
  • Includes CR123 battery
$174.90 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 3-5 business days
  • Features
  • Overview
  • Technical Specs
  • Documents

Yealink Multifunctional Wireless Room Occupancy Sensor

Yealink RoomSensor, the enterprise-level wireless Passive Infrared (PIR) sensor, is enabled for multiple sensing features of space occupancy, light condition, temperature and humidity, etc. With the built-in Bluetooth 5.0 and lithium battery, it's compact and cable-free to deploy. Moreover, the RoomSensor can be associated with various IoT devices and Yealink Workspace Management Platform, to build an intelligent and energy-efficient workspace.

Yealink RoomSensor is an enterprise multifunctional room sensor integrated with occupancy,temperature,humidity and light detecting functions.Linkage with Yealink RoomPanel through BLE protocol and brings with featurers such as automatic release, automatic check in, etc.The Passive infrared technology makes motion-detection more excellent and accurate;Lower power consumption & replaceable lithium battery, provide a maximum 5 years life;Wireless application and adjustable angle designing, easy to be installed on all kinds of surface, it can cover whole meeting room easily; Support real-time monitoring of device operation, provides one-stop management through Yealink WorkSpace Platform.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Basic

  • Detection: Occupancy, Temperature, Humidity, Light
  • Housing: PC, White

Sensor

  • Occupancy Type: Passive Infrared Tech
  • PIR Detection angle: 120°
  • Sensor Adjustable angle: ± 20°
  • PIR Coverage (Standard 3m/9.8 ft mouting height): 6m/19.7 ft radius (major motion); 3m/9.8 ft radius (minor motion)
  • Temp measuring range: -10~70°C
  • Humidity measuring range:0~80% RH

Communication

  • Protocol: Bluetooth BLE 5.2
  • Frequency band: 2.4GHz
  • Reach: Max. 30m (100 ft)
  • Multi-connectivity: Maximum 4 simultaneously, BLE mesh

Power Supply

  • Power supply: 3 V (1*CR123A lithium battery)
  • Battery life: 5 Year

Indicator

  • Button: 1 x config button
  • Led: 1 x LED

Operating Enviromental

  • Temperature range: 0~40°C
  • Humidity: 10~95%,non-condensing

IP Rating

  • IP Rating: IP20

Dimension&Weight

  • Dimensions: Φ95.3mm*36mm
  • Weight: 0.092KG(0.203lb)

Mount

  • Bracket: Circular mounting bracket, Magnetic Design
  • Mounting: Ceiling/Wall Mounted

Management

  • Yealink Management Cloud Service
  • Yealink Device Management Platform
