Yealink Skysound CM20 AI-Powered Beamforming Ceiling Microphone

Product Code: YL-CM20

Key Features
  • 83mm low-profile design.
  • 16 omnidirectional units to deliver unparalleled pro-level audio clarity.
  • AI Dynamic Noise Reduction and AI Reverberation Suppression for effective noise and echo reduction.
  • Integrated with DSP, it offers plug-and-play functionality.
  • Includes white and black mesh covers, ceiling tile bridge and dust cover.
$1,469.60 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 3-5 business days
  • Features
  • Overview
  • Technical Specs
  • Documents

Yealink Skysound CM20 AI-Powered Beamforming Ceiling Microphone

The Yealink SkySound CM20 is a premium ceiling microphone, expertly crafted to enhance audio performance in professional conference settings. Boasting an advanced array of 16 omnidirectional microphones, the CM20 captures sound in 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, SkySound CM20 offers plugand-play functionality with Yealink MVC systems, removing the need for external audio processing. Designed for medium to large conference rooms, the CM20 combines advanced technology with a sleek, elegant design, making it a perfect blend of functionality and style.


Advanced Microphone Array:

SkySound CM20 is equipped with 16 omnidirectional units, providing unparalleled audio clarity across 8 independent pickup zones.

Superior Coverage:

Effectively covers up to 60 , with a high-quality 30 full-duplex audio capture, ideal for medium to large spaces.

Intelligent Sound Processing:

Integrates Yealink's advanced noise, echo, and reverberation cancellation technologies for crystal-clear audio in every meeting.

Intelligent Tracking:

Features 8 beam outputs for precise speaker tracking and integrates with room cameras for enhanced camera tracking, enriching meeting engagement.

In-built DSP for Simplicity:

Equipped with an integrated DSP, SkySound CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.

Network and Deployment Efficiency:

Supports AES67 for easy integration into audio networks. PoE enabled, requiring just one Ethernet cable for power and audio.

Versatile Ceiling Integration:

Offers various installation options, including in-ceiling, pendant, and on-ceiling, for effortless setup and integration.

Elegant and Unobtrusive Design:

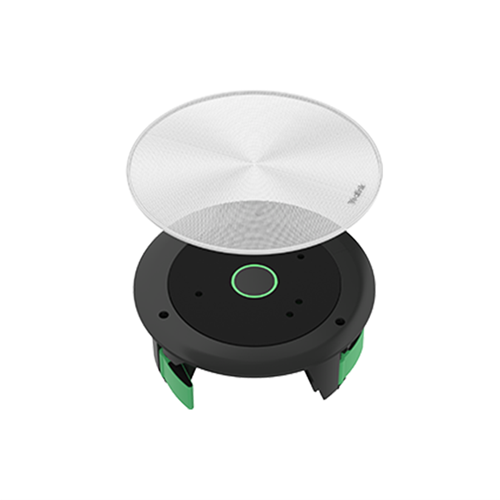

Includes a removable magnetic suction mesh cover, adding a touch of sophistication while being discreet and easy to maintain.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Package Content:

  • SkySound CM20 Microphone
  • White & Black Mesh Cover
  • Quick Start Guide
  • Assembly Fixing Bracket
  • Dust Cover
  • Bracing Bridge*1 pair
  • Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide)
  • Self-tapping Screw*6 (T4*30mm)
  • Machine Screw*5 (3*6PMOZN3+)
  • Bracing Bredge Screw*20 (M3*6PWMHOZN3)

Audio Specifications:

  • Frequency Response: 120Hz-16kHz
  • Maximum SPL: 122dBSPL
  • Signal Noise Ratio: 94dBSPL @1kHz A-Weight
  • Sensitivity: 0 dBV/Pa 94dBSPL@1kHZ
  • Microphone: 16 omni-direction microphone
  • AEC Channel: 1 channel internal

Physical Features:

  • Operating Temperature: 0-50
  • Storage Temperature: 0-70
  • Operating Humidity: 5%~90%
  • Continuous Power: 5.7W
  • Peak Power: 9W
  • Interface: 1*RJ-45
  • Power Supply: PoE (IEEE 802.3af, class 3)

Product Specifications:

  • Size:
    • Φ223*H83mm (with cover mesh)
    • Φ215*H81mm (without cover mesh)
  • Weight: 615g
  • Product Color: Pearl Light Gray
  • Product Materials: ABS+PC&iron mesh
