Whirlwind Multisplitter 4 - SP1X3 Units in 1 Space Rack Mount

Product Code: WH MLTSP1X3

Key Features

MLTSP1X3 MULTISPLITTER



$1,358.54 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

MLTSP1X3 MULTISPLITTER

Description

Four channels of passive and isolated microphone splitting in a single space rack panel.

Ideal for splitting and isolating mic level sends to a video truck or a remote broadcast, the 1U MLTSP1X2 and MLTSP1X3 provide one direct and one or two transformer isolated outputs per channel respectively.

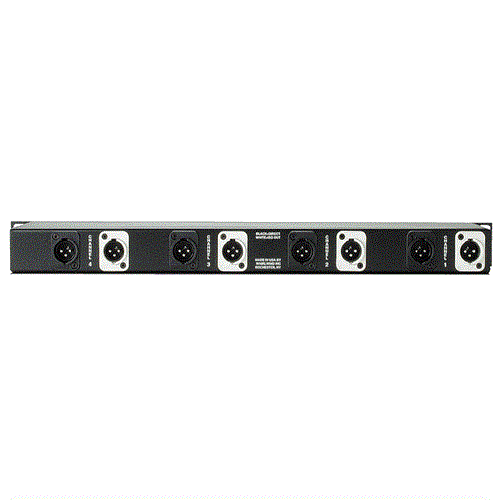

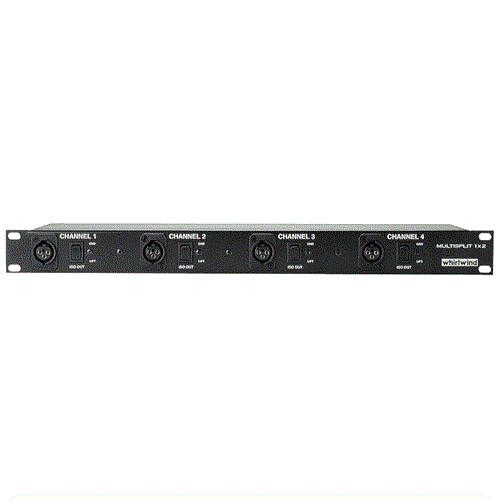

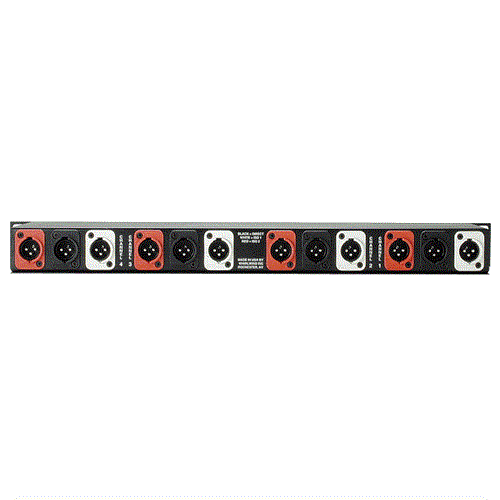

Each isolated output has a front panel ground lift switch. The inputs (female XLR) are located on the front panel and outputs (male XLR) are located on the rear panel.

  • Operating Level: -50dB to +4dBu
  • Frequency Response: 20Hz-20kHz ±1dB
  • Outputs: MLTSP1X2: 1 direct, 1 isolated / MLTSP1X3: 1 direct, 2 isolated



Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
