VOSCOM 2-Channel 3G-SDI (19.4 Mbps - 2.97 Gbps) Fiber Transceiver with Audio and Data

VOSCOM 2-Channel 3G-SDI (19.4 Mbps - 2.97 Gbps). Fiber Transceiver with Audio and Data

System Design

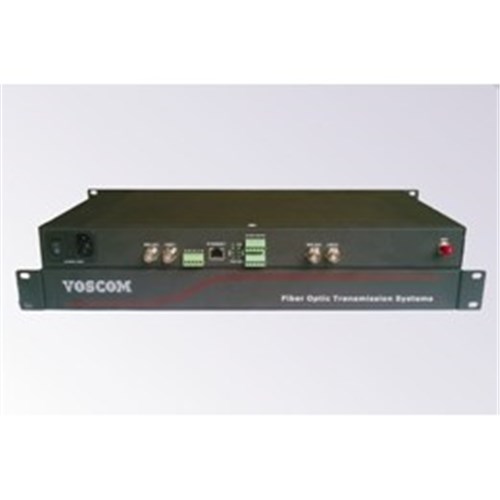

3G-SDI Fiber Transceiver VOS-2H3G-ADT/R provides for the digital transmission of 2-Channel uncompressed 2.97Gbps 3G-SDI (SMPTE 424M), 1.485 Gbps HD-SDI (SMPTE 292) or 270 Mbps SD-SDI (SMPTE 259M) 1080P HD video over fiber, support 2 duplex analog audio and 1 duplex RS232/RS485 data, also support one loopback output for local display, and dual outputs for two displays in the remote end. This unit only can support 19inch 1U Rack.

Single-Mode or Multi-Mode, VOS-2H3G-ADT/R can support FC/PC or ST/PC optical connector, the transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km, Multi-mode 300m.

Features

• Extends uncompressed multi-rate 3G-SDI, HD-SDI or SD-SDI video over fiber
• Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
• Supports embedded digital audio stream
• Multimode Fiber Support for Distances up to 300m.
• Single-Mode Fiber Support for Distances up to 20km.
• Real-Time Video Transmission for Exceptional Quality and Resolution
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
• Produce according to customer's specifications, providing OEM

Price is for a "SET", includes Transmitter and Receveier, and their power supplies. Pricing is for Single-mode 20km or Multi-mode 300m models. This model is common, inquiries for custom models are welcome.

Important Note When Ordering This Product: Please advise us if you require:

1. The fibre mode to be “Single-Mode” or “Multi-Mode”.
2. “FC/PC” or “ST/PC” optical connectors.

To advise us of the above specifications, kindly type your requirements into the "Order Comments" section at the point of submitting your order.
