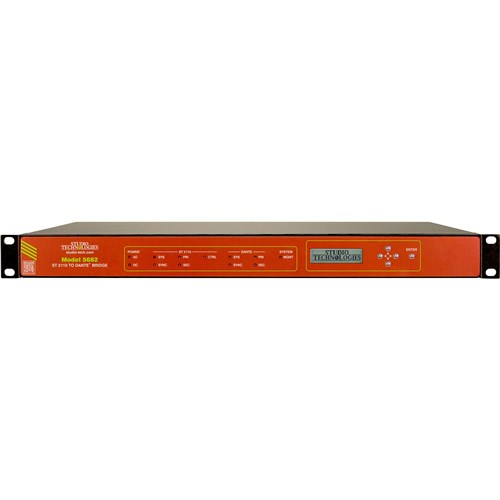

Studio Technologies Model 5682-01 ST 2110 to Dante Bridge

Product Code: ST-M5682-01

Key Features
  • SMPTE ST 2110-10, ST 2110-30, and ST 2022-7 support
  • Dante audio-over-Ethernet technology with AES67 and DDM support
  • Two versions available: one with up to 32 channels and one with up to 64 channels in each direction. This item is the 32 channel version.
  • Integrated Sample-Rate-Conversion (SRC) capability
  • Multiple Gigabit Ethernet interfaces allow redundant streams and Redundant Dante operation
  • AC mains and DC powering
  • Multiple status LEDs and graphics display
  • Lightweight enclosure, single rack-space (1U) mounting
$9,593.94 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Studio Technologies Model 5682-01 ST 2110 to Dante Bridge

The Model 5682 units are a specialized interface that allows two independent audio-over-Ethernet networks to be interconnected. One network supports the applicable SMPTE® ST 2110 standards while the other network supports Dante®.

Two versions are available. The Model 5682-01 allows linking (in each direction) of up to 32 ST 2110-30 audio channels (at 48 kHz sample rate) with 32 Dante channels (at 44.1 or 48 kHz sample rate) or 16 Dante channels (at 88.2 or 96 kHz sample rate). The Model 5682-02 allows linking (in each direction) of up to 64 ST 2110-30 audio channels (at 48 kHz sample rate) with 64 Dante channels (at 44.1 or 48 kHz sample rate) or 32 Dante channels (at 88.2 or 96 kHz sample rate). This listing is for the Model 5682-01.

The Dante interfaces support AES67 and the Dante Domain Manager application.

Each unit mounts in one space (1U) of a 19-inch rack and is powered by 100-240 V, 50/60 Hz. Units can also be powered by an external source of 12 Vdc.

Please refer to the attached data sheet for more details information.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

Applications:

Interconnects audio paths in each direction between independent ST 2110 and Dante audio-over-Ethernet networks. Integrated sample-rate-conversion (SRC) functions ensure that timing of independent networks is supported.

Versions Available:

Model 5682-01: supports up to 32 channels (44.1 or 48 kHz sample rates) and 16 channels (88.2 or 96 kHz sample rates)

Model 5682-02: supports up to 64 channels (44.1 or 48 kHz sample rates) and 32 channels (88.2 or 96 kHz sample rates)

Network Audio Technology – ST 2110:

Type: SMPTE ST 2110-10:2017 and ST 2110-30:2017; supports conformance level A (48 kHz streams with 1-8 audio channels at packet times of 1 ms) and level B (48 kHz streams with 1-8 audio channels at packet times of 125 us)

AMWA NMOS Support: IS-04 Discover & Registration and IS-05 Device Connection Management

Redundant Streams: compliant with Level B, SMPTE ST 2022-7:2013 Seamless Protection Switching (8-channel stream at 48 kHz sample rate, packet time 125 us)

Synchronization: per SMPTE ST 2110-10, Precision Time Protocol (PTP) IEEE® 1588-2008 Version 2; supported profile IEEE 1588:2008

Discovery, Control, and Connection Management: includes web user interface, JSON API, NMOS, and Merging Technologies’ ANEMAN Audio Network Manager

Audio Performance and Transport: digital

Audio Type: pulse-code modulation (PCM)

Sampling Rate: 48 kHz

Bit Depth: 24

Number of Sender (Output) Channels – Model 5682-01: 32

Number of Receiver (Input) Channels – Model 5682-01: 32

Number of Sender (Output) Channels – Model 5682-02: 64

Number of Receiver (Input) Channels – Model 5682-02: 64

Network Audio Technology – Dante:

Type: Dante audio-over-Ethernet

AES67-2018 Support: yes

Dante Domain Manager (DDM) Support: yes

Ethernet Interface Configuration: Switched or Redundant

Sample Rates: 44.1, 48, 88.2, or 96 kHz

Pull-Up/Down Support: yes

Bit Depth: up to 24 bits

Number of Transmitter (Output) Channels – M5682-01: 32 (44.1 or 48 kHz sample rates) or 16 (88.2 or 96 kHz sample rates)

Number of Receiver (Input) Channels – M5682-01: 32 (44.1 or 48 kHz sample rates) or 16 (88.2 or 96 kHz sample rates)

Number of Transmitter (Output) Channels – M5682-02: 64 (44.1 or 48 kHz sample rates) or 32 (88.2 or 96 kHz sample rates)

Number of Receiver (Input) Channels – M6482-02: 64 (44.1 or 48 kHz sample rates) or 32 (88.2 or 96 kHz sample rates)

Dante Audio Flows: 32 receiver and 32 transmitter

Network Interfaces:

3; ST 2110, Dante, and System Management

Physical Ethernet Connections – ST 2110: 3; Primary, Secondary, and Control

Physical Ethernet Connections – Dante: 2; Primary and Secondary

Physical Ethernet Connection – System Management: 1

Ethernet Connection Type: 1000BASE-T Gigabit Ethernet (GigE) per IEEE 802.3ab (10 and 100 Mb/s not supported)

Ethernet Connection NIC Status LEDs: one link and one activity for each Ethernet connection

Audio Performance:

Type: fully digital paths between ST 2110 and Dante network interfaces (by way of sample-rate-converter (SRC) functions)

Dynamic Range: 147 dB at 48 kHz sample rate, 148 at 96 kHz sample rate, A-weighted

Distortion (THD+N): –140 dB at 48 kHz sample rate, –143 dB at 96 kHz sample rate, measured at –1 dBFS, 1 kHz

Internal Digital Audio Processing: 32 bits

Input-to-Output Audio Processing Latency: <500 uSec

Front-Panel LEDs: 12, dual-color

Functions: provides indication of condition of incoming AC and DC power, ST 2110 status, Dante status, and system management interface status

Back-Panel LEDs: 14

Functions: provides status indication of both firmware update functions and six Ethernet interfaces

Power Sources:

AC Mains: 100 to 240 V, 50/60 Hz, 8 W maximum

DC: 10 to 16 V, 0.6 A max

Connectors:

Ethernet: 6, RJ45 jacks

USB: 2, Type A receptacles (used only for firmware updating)

DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)

AC Mains Input: 3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)

Environmental:

Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)

Storage Temperature: –40 to 70 degrees C (–40 to 158 degrees F)

Humidity: 5 to 95%, non-condensing

Altitude: not characterized

Dimensions:

19.0 inches wide (48.3 cm)

1.72 inches high (4.4 cm)

8.0 inches deep (20.3 cm)

Mounting: one space (1U) in a standard 19-inch rack

Weight: 3.3 pounds (1.5 kg)
