Live-Link™ Jr. is a highly-integrated camera extender system optimized for electronic news gathering (ENG), uplink truck, and specialized broadcast applications. The portable camera end unit and rack-mounted truck end unit provide all the resources needed for a single-camera live event. Linked using just two single-mode optical fibers, the same excellent performance will be supplied whether the units are hundreds of feet or miles apart. Notable features of the Live-Link Jr. system include performance flexibility, support for high-quality on-air (program), talent cue (IFB) and intercom audio, and ease of use.
Truck End Unit Details

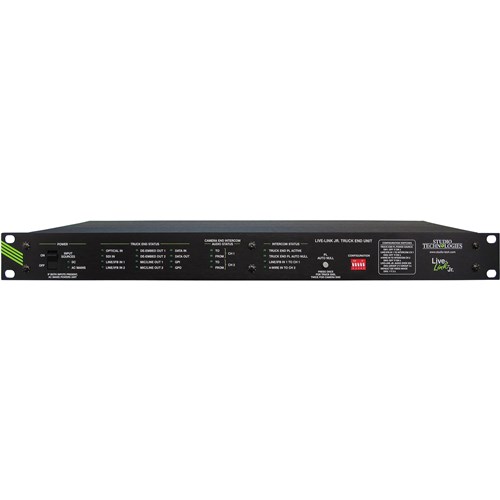

The truck end unit mounts in one space (1U) of a standard 19-inch rack. Housed in an aluminum enclosure the unit weighs less than 4 pounds (1.8 kg), making it perfect for mobile or "fly-away" applications. LEDs on the front panel provide a complete view of system operation, including an indication of the camera end unit's optical interconnection status. Standard connectors ensure fast, easy, and low-cost installation as well as rapid, straight-ahead troubleshooting. The connectors include BNCs for digital video, 3-pin XLRs for audio, and a 9-pin D-subminiature for data.
The truck end unit allows an AC mains source of 100-240 V, 50/60 Hz to be directly connected. The unit can also be DC powered using a 10-18 V source that is connected via a broadcast-standard 4-pin XLR connector. If both AC and DC power sources are connected the unit will be powered by the AC mains supply. Only if the AC mains source fails will a load be placed on the DC source. This allows a source of DC, typically a battery pack, to serve in a backup capacity. With this arrangement normal operation can continue even if AC mains power is lost.
We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
Line/IFB and 4-Wire Intercom Inputs:Type: analog, electronically balanced, capacitor-coupled, 20 k ohmsNominal Level: +4 dBuMaximum Level: +24 dBu
De-Embed, Mic/Line, and 4-Wire Intercom Outputs:Type: analog, electronically balanced, capacitor-coupled, intended to drive balanced loads of 2 k ohms or greaterSource Impedance: 200 ohmsNominal Level: +4 dBuMaximum Level: +24 dBu into 10 k ohms
Party-Line Intercom Interface:Type: 2-channel party-line, unbalanced (common on pin 1, DC modulated with channel 1 audio on pin 2, channel 2 audio on pin 3)Compatibility: dual-channel intercom system such as from RTS®Nominal Audio Level: –10 dBuMaximum Audio Output Level:Pin 2: +9 dBuPin 3: +10 dBuOutput Voltage (Pin 2 to Pin 1): 29 Vdc, selectable on/offOutput Current (Pin 2 to Pin 1): 300 mA maximum; requires ≥10 mA current draw for detection of connected deviceImpedance (Pin 2 to Pin 1; Pin 3 to Pin 1), Local Party-Line Power Enabled: 200 ohmsImpedance (Pin 2 to Pin 1; Pin 3 to Pin 1), Local Party-Line Power Disabled: >10 k ohms
Connectors for Electrical Signals:SDI: BNC, 3G-SDI optimized, gold plating on center pin, per IEC 61169-8 Annex ALine/IFB and 4-Wire Intercom Inputs: 3-pin female XLRDe-Embed, Mic/Line, Party-Line Intercom, and 4-Wire Intercom Outputs: 3-pin male XLRData, GPI/GPO, and Auxiliary DC: 9-pin female D-subminiature (DE-9F)DC Input: 4-pin male XLRAC Mains Input: 3-blade, IEC 320 C14-compatible (mates with C13)
Optical Connectors: two ST (UPC polish)
Power Inputs:AC Mains: 100 to 240 V, 50/60 Hz, 24 W maximumDC: 10 to 18 V, 2.0 A maximum
Dimensions (Overall):19.00 inches wide (48.3 cm)1.72 inches high (4.4 cm)8.7 inches deep (22.1 cm)
Mounting: one space (1U) in a standard 19-inch rack
Weight: 3.9 pounds (1.8 kg)
