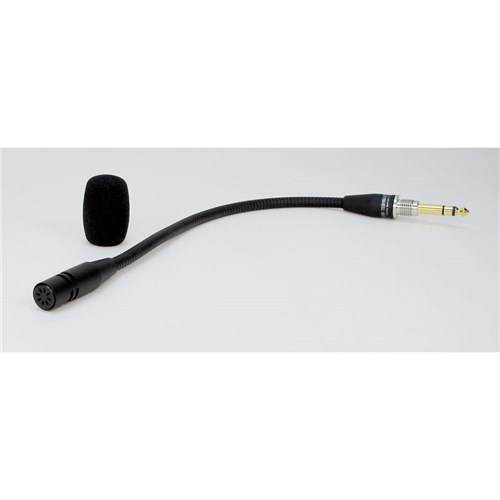

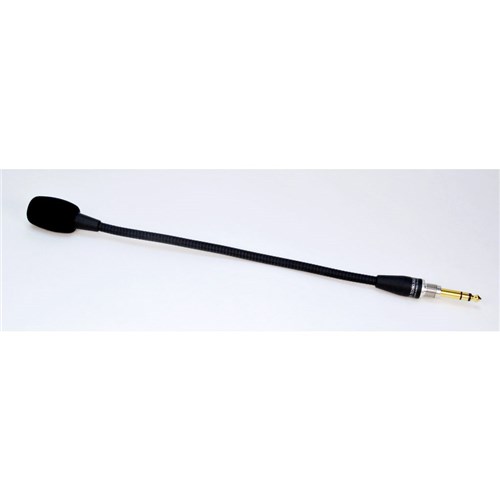

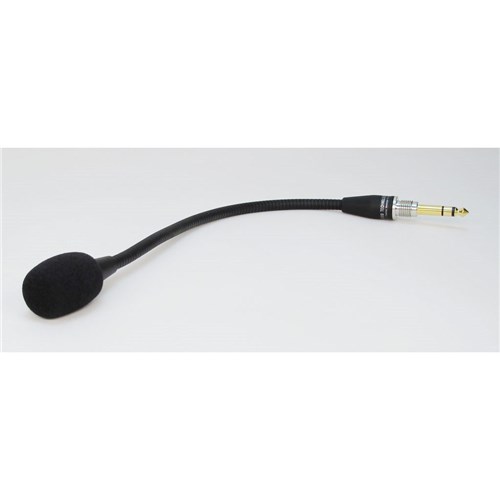

Panel-mounted electret-powered gooseneck microphone for use with Model 348 Intercom Station and Model 354 Talk Station. Terminated with a 1/4-inch 3-conductor plug that includes 7/16-20 UNF screw threads. Includes foam windscreen. Overall length 12 inches.
We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
Pattern (Directionality): unidirectional
Type: back electret
Power Requirement: 1.5-10 volts DC, 0.5 milliamperes maximum
Sensitivity: -47 dB nominal (0 dB= 1V/Pa at 1 kHz)
Frequency Response: 100-12 kHz, nominal
Connector Type: 3-conductor 1/4-inch (6.35 mm) plug with associated threaded male bushing
Connector Termination:Tip: + audio and DC powerRing: – audioSleeve: common (electrically connected to mounting bushing, flexible shaft (gooseneck), and microphone body)
Mounting: compatible with intercom-standard 7/16-20 UNF threaded female bushing with 1/4-inch 3-conductor jack (socket)
Color: black plating, matte finish
Environmental:Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)Storage Temperature: –40 to 70 degrees C (–40 to 158 degrees F)Humidity: 0 to 95%, non-condensingAltitude: not characterized
Dimensions:Length, including wind screen, threaded bushing, and plug: 14.0 inches (356 mm)Length, including wind screen; not including threaded bushing and plug: 12.1 (307 mm)Length, not including wind screen, threaded bushing, and plug: 11.9 (302 mm)Flexible Shaft (Gooseneck) Diameter: 0.28 inches (7 mm)Microphone Head Diameter: 0.5 inches (13 mm)Microphone Head Length: 1.4 inches (36 mm)
Weight: 0.25 pounds (0.11 kg)
Windscreen:Availability: one included with each GME-3-12 (replacements also available as option)Material: black foamDimensions: diameter 1 inch (26 mm), length 1.5 inches (39 mm)
