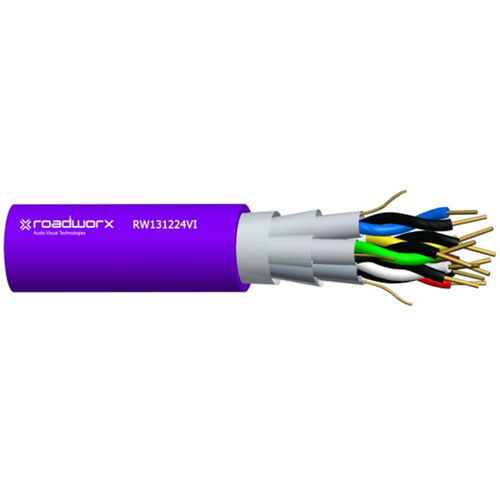

Roadworx RW131224 Digital Audio Snake 12 Pair 110 Ohm Low Capacitance 24AWG Violet 300m Reels

Product Code: RW131224VI300

Key Features

Digital Audio Snake, 12 Pair, 110 Ohm Low Capacitance, 24AWG, Violet 300M Reels

$9.82 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 12+ weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW131224 Digital Audio Snake, 12 Pair, 110 Ohm Low Capacitance, 24AWG, Violet 300M Reels

Description

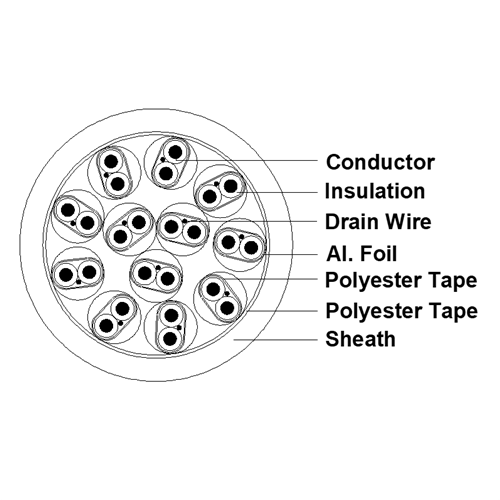

(7/0.2TC x 1P + PE + Drain Wire + Al. Foil + Polyester Tape) x 12C + Polyester Tape + PVC Sheath Φ15.3mm

Applicable Standards

AES/EBU

Suitable Applications

For applications requiring 110 ohm low capacitance balanced cables, such as AES/EBU digital audio in broadcast, studios and other commercial sound applications. Can be used for any balanced analogue audio signals.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

Cable Description

Conductor 7/0.203+/-0.006TC
Insulation

Pair: 12

Material: PE

Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White, Red/Green, Red/Blue, Red/Yellow, Red/Brown
Min. Thickness 0.42mm / Nom. Thickness ≥0.50mm / Nom. O.D 1.6+/-0.1mm
Screen Al. Foil, Polyester Tape 100% Coverage
Drain Wire

7/0.203+/-0.006TC
Sheath Material: PVC / Colour: Violet
Min. Thickness 1.32mm / Nom. Thickness ≥1.65mm / Nom. Sheath O.D15.3+/-0.2mm
Spark Voltage : 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 93.25 ohm/km 20°C
Characteristic Impedance 110 ohm
Mutual Capacitance: Core to Core 15.5±2 pf/ft @ 1KHz
Mutual Capacitance: Core to Shield 31±2 pf/ft @ 1KHz
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2
Flame Test VW-1

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 360N
Min. Bend Radius (install) 153mm
Approximate Mass 24.16kg/100m
Sheath Printing ROADWORX RW131224 Digital Audio Snake, 12 pair, 110 Ohm Low Capacitance, 24AWG (meter marking)
