  • PTZOptics Studio 4K 3rd Generation Fixed Lens Camera 20X Optical Zoom - White

PTZOptics Studio 4K 3rd Generation Fixed Lens Camera 20X Optical Zoom - White

Product Code: HUD-PT20X-STUDIO-4K-WH-G3

Key Features
  • 4K@60fps Resolution
  • 20x Optical Zoom
  • Compact & Modern Fixed Design
  • Hive-Linked for One-Click Integration
  • SDI, HDMI, USB, and IP Outputs with NDI® HX2
  • Colour: White
$3,007.51 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

PTZOptics Studio 4K 3rd Generation Fixed Lens Camera 20X Optical Zoom - White

**Pre-Order Now for March 2025 Release**

Fixed Camera, Unmatched 4K Video

Whether as a standalone camera or an addition to a larger studio setup, PTZOptics’ Studio 4K provides crystal-clear 4K resolution, 20X zoom and conveniently Hive-Linked™ to our easy-to-use online platform, Hive Studio, delivering future-ready connectivity and control from anywhere.

Connect, Point, Produce!

The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI® HX2, allowing for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. Built-in connectivity links to Hive Studio automatically!

Zoom In with Power and Endurance

The Studio 4K is your perfect entry into the world of 4K videography, offering powerful zoom capabilities and reliable performance. Capture a head-and-shoulders shot of your subject from up to 90 feet away with zoom strengths of 20X, ideal for medium or large spaces. Designed for utility and endurance, its unobtrusive design, continuous operation, and a variety of mounting options, the Studio 4K will be your new video system workhorse.

A Multitude of Applications

The Studio 4K is the perfect companion to a Move SE or Move 4K multi-camera setup, enhancing your production capabilities with an additional fixed-camera option that complements your PTZ cameras. The Studio 4K’s high-quality construction and discreet profile makes it the perfect choice for streaming municipal meetings, worship services, sports, and security applications. In addition, as a fixed camera the Studio 4K is courtroom friendly.

Future-Friendly Performance

To accommodate ever-evolving productions, the Studio 4K is Hive-Linked, PTZOptics proprietary built-in automatic connection to Hive Studio, allowing centralized multi-camera control & management from anywhere within the comfort of a web browser. With just a few clicks, you’ll have centralized management of all your cameras from anywhere with just a web connection, enabling controlling and configuring multiple cameras from a single interface—no need for complex multi-software setups.

Free Software for PTZOptics Users

PTZOptics cameras are compatible with a wide range of free software solutions, including:

  • Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
  • Control apps for desktop and mobile devices
  • Plugins and integrations for popular platforms, including OBS
  • Camera configuration and management tools
  • Support and testing utilities
  • And more!
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Camera & Lens Image Sensor & Lens 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom 16x
Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50

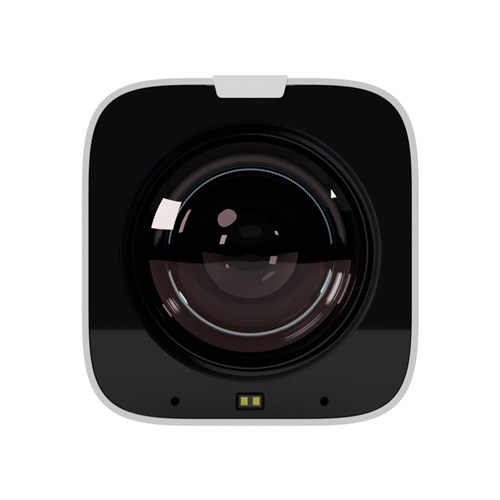

Optical Lens Focal Length (Zoom) f = 4.7mm ~ 94mm, F1.6 ~ F3.6
Optical Lens Field of View, Horizontal & Vertical H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
Display Field of View 67.8°
Min Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30x ~ 1/10000s
Presets 255 Presets
Presets Accuracy 0.1°
Image Flip Supported
Image Mirror Supported
Image Freeze Supported
Physical Specifications Material Aluminum, Plastic
Color Gray or White
Dimensions (L x W x H) 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight 1.4 lbs | 0.64kg
Working Environment Indoor
Humidity Range 10% ~ 80%
Operating Temperature 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature -40°F ~ 140°F (-40 ~ 60°C)

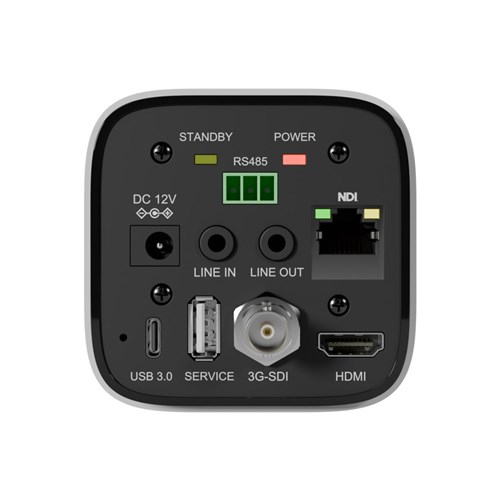

Connections HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX2 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface 1x 3.5mm Line level input
1x 3.5mm Line level output
Video Formats USB:
  • YUY2: Max resolution 1920x1080p @ 30fps
  • MJPEG: Max resolution 3840x2160p @ 30fps
  • H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps

RTSP/NDI® HX2 only:
  • H.265: Max resolution 3840x2160p @ 60fps
Compression Standards H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX2 only)
UVC Version Supported UVC 1.1 ~ 1.5
Supported Protocols TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX2, SRT, Multicast, etc.
IR 4x IR Addresses, Max distance 30ft / 9m
Power Supply JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption Max 2A
Power Consumption Max 18W
