PTZOptics Move SE 1080p USB3.0 Auto-Tracking 12X Opt Zoom Camera White

Product Code: HUD-PT12X-SE-WH-G3

Key Features
  • Built-In Auto-Tracking
  • Advanced White Balance Modes
  • Wide Dynamic Range
  • Full Frame Rates: 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
  • Up to 1080p Resolution @ 60fps
  • SRT Support
  • 2D & 3D Noise Reduction
  • Simultaneous IP Video (NDI HX Upgradeable, SRT, RTMPS, RTSP)
  • USB3.0, HDMI2.0 and 3G-SDI
  • 72.5 Deg HFOV
$2,626.22 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

PTZOptics Move SE 1080p USB3.0 Auto-Tracking 12X Opt Zoom Camera White



Feature-Packed and Built to Scale

Built on the award-winning PTZOptics camera line, the PTZ and auto-tracking features you love are now more within reach than ever. The PTZOptics Move SE combines HDMI, SDI, USB and IP outputs – plus NDI®|HX upgradeability – all into a single camera. Ideal for live streaming and video production, the Move SE offers high-quality video with a resolution of 1080p at 60fps. And with SONY CMOS image sensors, you can count on great image quality even in low-light scenarios.



Designed with You – and the Future – in Mind

Experience a more intelligent video production workflow with the Move SE’s updated user interface and feature set that continually expands based on user feedback. Plus, PTZOptics’ one-click firmware updates make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves over time. And with optical zoom, plus PoE, the Move SE can fit seamlessly into any production scenario.



Pan, Tilt, Zoom, Track

With the Move SE’s auto-tracking features, users can control their production from behind the scenes – or right in front of them. Plus, the Move SE’s Presenter-Lock auto-tracking features allow users to lock into a specific person, even while other people are in frame, and switch between on-stage presenters with the click of a button. In addition to the Move SE’s auto-tracking features, users also have access to PTZOptics’ latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

From hardware to software, the options for camera control are endless — allowing you to take charge of your camera in a way that fits your workflow.



Perfect for Public Spaces

With safety and ease of use in mind, the Move SE includes IR remote control receivers on both the front and back of the camera, so operators can control the camera’s movements from any angle. And for added security in public spaces, the Move SE is equipped with a Kensington lock to deter theft and ensure peace of mind. Whether you’re using the Move SE in a classroom, public courtroom, or shared meeting space, you can rest easy knowing that it’s built to handle the demands of any public setting.



Discreet Mounting Options

Mount your PTZOptics Move SE camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup. (Mounts sold separately).



Take Control Your Way

Users can control Move SE cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster - or check out one of our hardware joystick controllers such as our IP joysitck, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Move SE cameras can be controlled remotely via anywhere in the world using a variety of tools, including NDI® Bridge (with NDI upgrade) and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.



Free Software for PTZOptics Users

PTZOptics cameras are compatible with a wide range of free software solutions, including:

  • Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
  • Control apps for desktop and mobile devices
  • Plugins and integrations for popular platforms, including OBS and Twitch
  • Camera configuration and management tools
  • Support and testing utilities
  • And more!
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Image Sensor & Lens
Video Sensor 1/2.8’’, CMOS, Effective Pixel: 2.07M
Resolution and Frame Rate 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
Digital Zoom Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72)
Min. Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Lens 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8
White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation Supported
Digital Noise Reduction 2D & 3D Digital Noise Reductions
Field of View 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide)
Pan/Tilt Movement
Pan Movement ±170°
Pan Speed 1.7° ~ 100°/s
Tilt Movement +90° to -30
Tilt Speed 1.7° ~ 69.9°
Image Flip, Mirror and Freeze Supported
Presets 255 Presets
Preset Accuracy 0.1°
Power Options
Power Supply DC 12V
Input Power 2A (Max)
Physical Specifications
Material Aluminum, Plastic
Color White and Gray
Dimensions (W x D x H) 5.6” W x 6.7” D 6.5” H (7.88” H max height w/ tilt up)
142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m
Weight 3.2 lbs. (1.445 kg)
Working Environment Indoor
Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
Storage Temperature -40°F ~ 140°F (-40°C to 60°C)

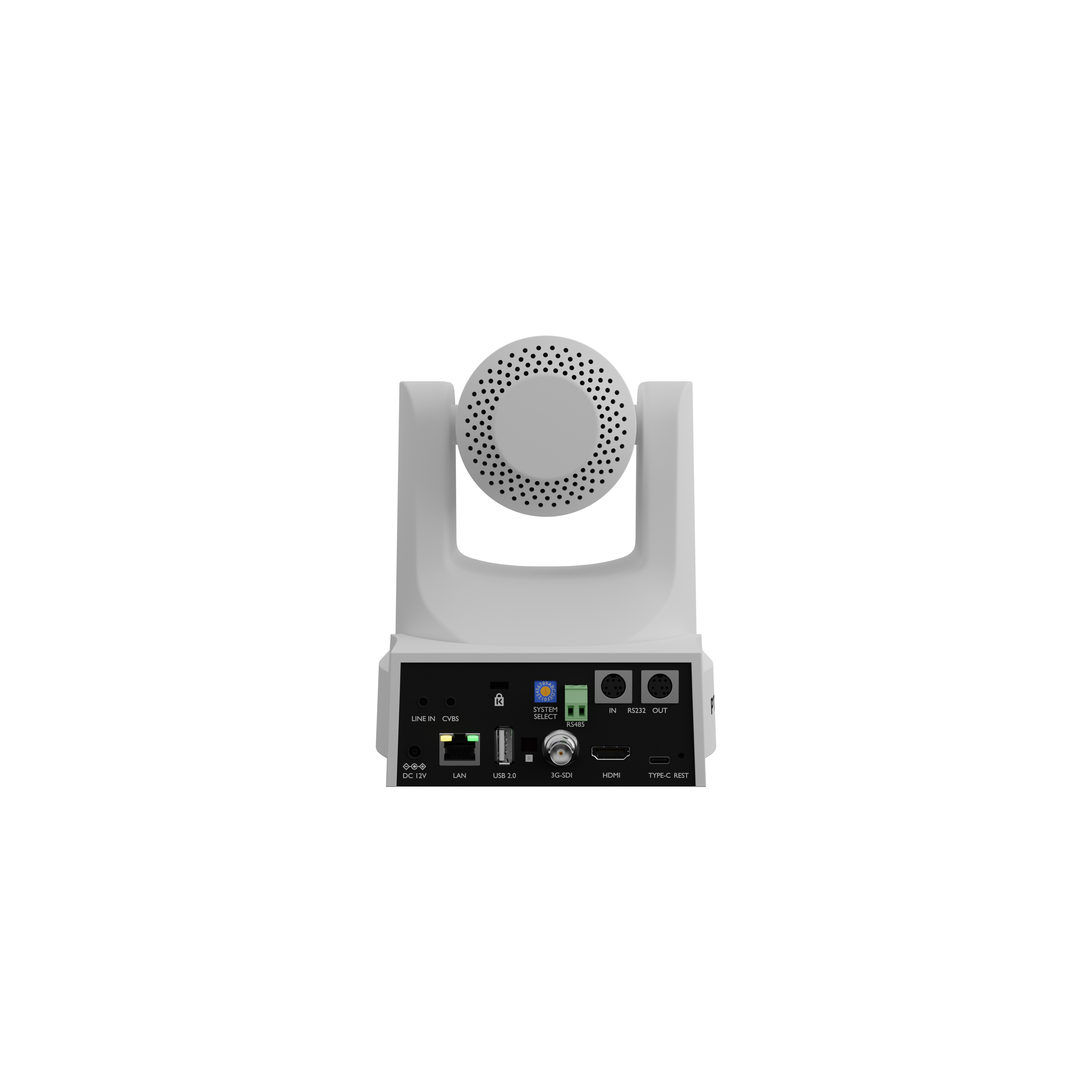

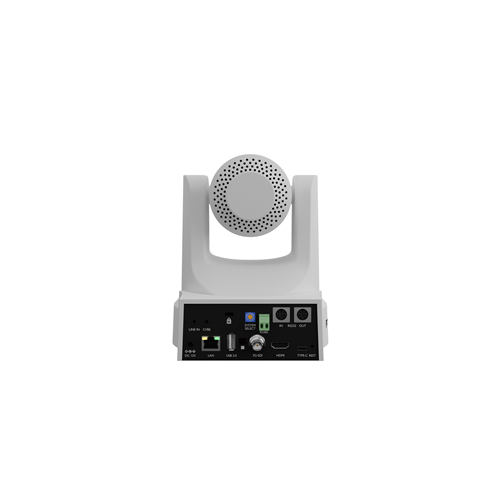

Rear Board Connectors
HD Video Output 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard
  1x HDMI: version 1.3
  1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, USB 3.0 Type C
  1x USB 3.0 Type C
Audio Interface 1x 3.5mm Line level Input
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
  1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
  1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
IR 4x IR Addresses, Max distance 30ft / 9m
Power Jack JEITA type (DC IN 12V)
