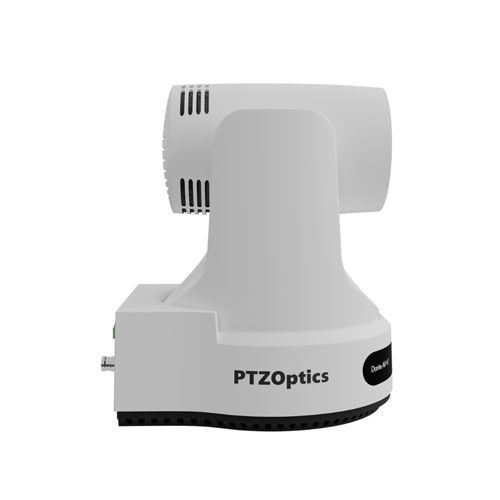

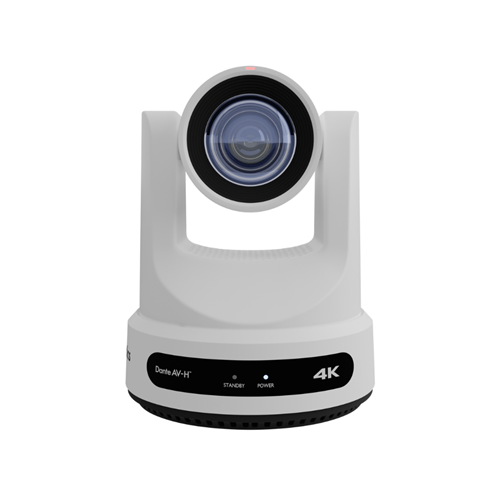

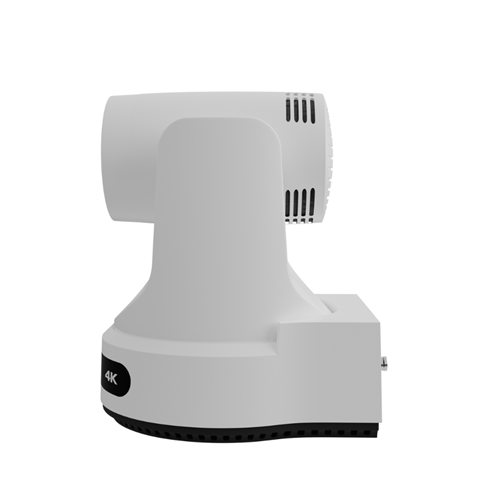

PTZOptics Link 4K USB2.0 Auto-Tracking 20X Opt Zoom Camera Featuring Dante AV-H White

Product Code: HUD-PT20X-LINK-4K-WH

Key Features
  • 60.7° (20X) horizontal field of view
  • High performance in low light scenarios with Wide Dynamic Range
  • Ultra HD 3840x2160p resolutions up to 60 FPS
  • 3D noise reduction with our latest low noise CMOS sensor
  • Serial (RS232 & RS485) & IP control (LAN/WAN)
  • H.264, H.265, & MJPEG video compression when IP streaming
  • USB 2.0, HDMI 2.0 / 3G-SDI (HDMI & SDI are not simultaneous)
  • PoE+ (Power over Ethernet) or 12VDC power supply
  • Beamforming microphone
  • AI Video based auto tracking
  • Dante AV-H™ (Limited to 1080p60)
  • Built in tally light
  • Photobooth capable
$5,517.96 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

PTZOptics Link 4K USB2.0 Auto-Tracking 20X Opt Zoom Camera Featuring Dante AV-H White

The PTZOptics 4K Link offers built-in auto-tracking at 4K at 60fps (1080p at 60fps over SDI) and features Dante AV-H™ and a built-in tally light. Available outputs include SDI, HDMI and USB for unrivaled performance and versatility. Compatible with most video production software, including OBS, vMix, Wirecast and more.

What's In The Box:

  • Camera
  • AC Power Supply
  • USB A-A Cable
  • RS232C Cable
  • Quick Start Guide
  • IR Remote
  • 2 AA Batteries
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Image Sensor & Lens
Video Sensor (20X) Sony 1/1.8 inch, CMOS, Effective pixels: 8.42M
Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x10
80p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
  SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
Lens Zoom (20X) f = 6.25 ~ 125mm, F1.58 ~ F3.95
Field of View (20X) H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
Min Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Pan / Tilt Movement
Pan Movement ±170°
Pan Speed -1.7° ~ 100°/s
Tilt Movement -30° ~ +90°
Tilt Speed 1.7° ~ 69.9°
Presets 255 Presets
Preset Accuracy 0.1
Image Flip, Mirror and Freeze Supported
Electrical Index
Power Supply DC 12V / PoE+ (802.3at)
Current Consumption 2A (Max)
Physical Specifications
Material Aluminum, Plastic
Colour White
Dimensions (W x D x H) (20X) 5.57” W x 6.65” D x 7.91” H / 141.5 W x 169 D x 201 H mm
Weight ( 20X) 3.25 lbs (1.47 kg)
Working Environment Indoor
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)

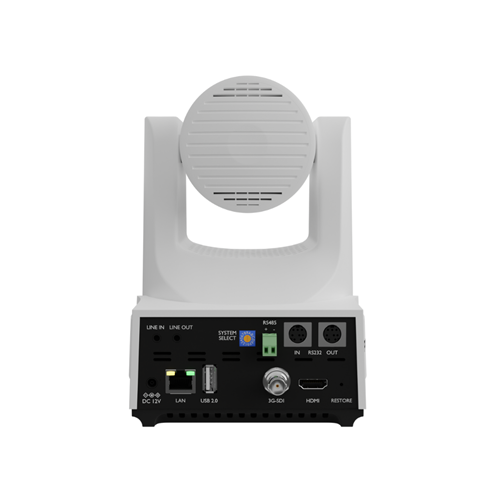

Rear Board Connectors
HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port
  1x HDMI: version 2.0
  1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M, standard,
  1x USB 2.0 type A
LINE IN Interface 1x 3.5mm Line level Input
Communication Interface 1x 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
  1x 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
  1x 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
IR 4x IR Addresses, Max distance 30ft / 9m
Power Jack JEITA type (DC IN 12V)
