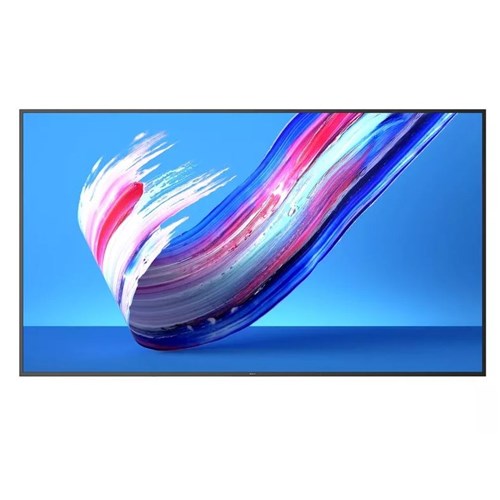

Philips 98 Inch Q Series 4K 18/7 400nit Android Professional Display

Product Code: PHL 98BDL3650Q

Key Features
  • Powered by Android
  • 98"
  • 400cd/m²
  • 4K UHD
$8,980.48 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Philips 98 inch Q Series 4K 18/7 400nit Android Professional Display

Inform and enthral with a Philips Q-Line 4K Ultra HD digital display. This reliable, easy-to-install, Android powered signage solution is Wave-ready for remote management, putting you in full control, any time, anywhere.

SmartBrowser

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your  complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.

FailOver

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Integrated media player

Easily schedule content to play from USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Interact (optional)

Wirelessly screen share using your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting into the secured network.

Powered by Android 10

Powered by our Android 10 SoC platform, these hard-working Philips professional displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer.

PPDS Wave

Unlock the power, versatility and intelligence inside your Philips Q-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.

Warranty

We offer a 3 year onsite warranty via 3rd party on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Picture/Display
Diagonal screen size (inch) 97.5
Diagonal screen size (metric) 247.7
Panel resolution 3840 x 2160
Optimum resolution 3840 x 2160 @ 60 Hz
Brightness 400
Contrast ratio (typical) 1200:1
Dynamic contrast ratio 500,000:1
Response time (typical) 8
Aspect ratio 16:9
Viewing angle (horizontal) 178
Viewing angle (vertical) 178
Pixel pitch 0.56 x 0.56 mm
Display colors 1.07 Billion
Picture enhancement 3/2 - 2/2 motion pull down
  Progressive scan
  Dynamic contrast enhancement
Panel technology IPS
Operating system Android 10
Haze 25%
Connectivity
Video input USB 2.0 (x2)
  DVI-I (x 1)
  HDMI 2.0 (x2)
  USB 3.0 (x1)
Audio input 3.5 mm jack
Audio output 3.5mm jack
External control RS232C (in/out) 2.5 mm jack
  IR (in/out) 3.5 mm jack
  RJ45
Other connections micro SD
  OPS
Convenience
Keyboard control Hidden
  Lockable
Network controllable RS232
  RJ45
Signal loop through RS232
  IR Loopthrough
Energy saving functions Smart Power
Remote control signal Lockable
Tiled Matrix Up to 3 x 3
Placement Landscape (18/7)
  Portrait (18/7)
Ease of installation Smart Insert
Dimensions
Bezel width 15.9mm: L/R/T , 20.1mm: B
Set Width 2193.4
Set Height 1255.3
Set Depth 90
Product weight 65.2
Product weight (lb) 143.74
Wall Mount 1000 mm x 400 mm, M8
Power
Mains power 100 - 240V~, 50/60Hz
Standby power consumption <0.5W
Power Saving Features Smart Power
Consumption (Max) TBD
Consumption (Typical) TBD
Energy Label Class G
Sound
Built-in speakers 2 x 10W RMS
Accessories
Included Accessories IR sensor cable (1.8 m) (x1)
  RS232 daisy-chain cable
  Philips logo (x1)
  AC Power Cord
  AC Switch Cover
  Quick start guide
  Remote control & AAA batteries
  RS232 cable
  USB cover and screws
  Wire Clamper (x3)
Internal Player
CPU Quad Core Cortex A55
GPU G52 MC1
Memory 16GB
  3GB DDR
