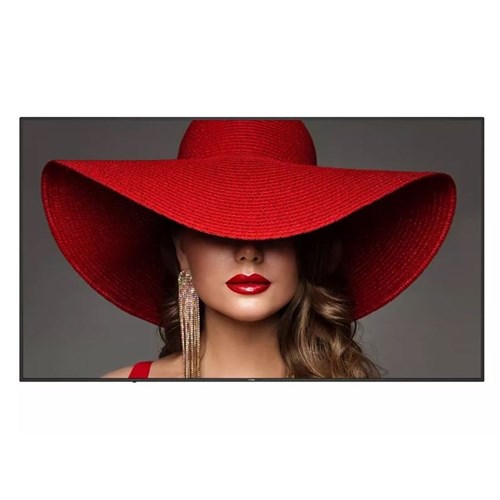

Philips 98 Inch D Series 4K 24/7 500nit Android Professional Display

Product Code: PHL 98BDL4650D

Key Features
  • Powered by Android
  • 98"
  • 500cd/m²
  • 4K UHD
$10,584.12 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Philips 98 inch D Series 4K 24/7 500nit Android Professional Display

The Philips D-Line is designed to engage your audience and delight customers. Powered by Android 11 for easy software integrations, this versatile display is suitable for impact in any setting.

Internal Memory

Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

ADS wide-view panel display

Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180 degree viewing.

FailOver

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of a media player failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Modularity

Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, and a firm focus on  sustainability, with reduced WEEE disposal.

Powered by Android 11

Powered by Android 11 and with integrated WiFi, your Philips D-Line delivers the ultimate, most
secure and connected display experience. Optimised for native Android apps, and enabling you to install web apps and software directly onto the display, eliminating the need for an external media player.

SmartBrowser

Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait, in 4k UHD resolution. Simply connect to the internet via WiFi or with an RJ45 cable.

PPDS Wave

Unlock the power, versatility and intelligence inside your Philips D-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.

Warranty

We offer a 3 year onsite warranty via 3rd party on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

For further specifications, please refer to the attached Datasheet.

Picture/Display
Diagonal screen size (inch) 97.5
Diagonal screen size (metric) 247.7
Panel resolution 3840 x 2160
Optimum resolution 3840 x 2160 @ 60 Hz
Brightness 500
Contrast ratio (typical) 1200:1
Dynamic contrast ratio 500,000:1
Aspect ratio 16:9
Response time (typical) 8
Pixel pitch 0.56 (H) x 0.56 (V) [mm]
Display colours 1.07 Billion
Viewing angle (horizontal) 178
Viewing angle (vertical) 178
Picture enhancement 3/2 - 2/2 motion pull down
  Motion compens. deinterlacing
  Dynamic contrast enhancement
  Progressive scan
Operating system Android 11
Panel technology ADS
Haze 28%
Connectivity
Video input DVI-I (x 1)
  DisplayPort 1.4 (x 1)
  HDMI 2.0 (x 2)
  USB 3.0 (x 2)
  VGA (via DVI)
Video output DisplayPort 1.4 (x 1)
Audio input 3.5 mm jack
Audio output 3.5 mm jack
External control RJ45
  RS232C (in/out) 2.5 mm jack
  IR (in/out) 3.5 mm jack
Wi-Fi Wi-Fi 6 + Bluetooth 5.2 (slide-in module)
Other connections 4G/LTE antenna connectors
  Micro USB (x 1) (OTG)
  USB 2.0 (x 1)
Dimensions
Set Width 2193.2 mm
Set Height 1248.2 mm
Set Depth 87.9 mm (D@Wall mount) / 97.9 mm (D@Handle)
Bezel width 16.0 mm (Even Bezel)
Product weight 90.6 kg
Wall Mount 800 (H) x 400 (V) mm, M8
Convenience
Placement Landscape (24/7)
  Portrait (24/7)
Tiled Matrix Up to 10 x 15
Keyboard control Hidden
  Lockable
Signal loop through IR Loop through
  DisplayPort
  RS232
Network controllable RS232
  External 4G mPCIe slot
  RJ45
  Wi-Fi
Energy-saving functions Smart Power
Screen-saving functions Pixel Shift
WiFi protocol a b g n, 802.11 ax, 802.11 ac
Power
Standby power consumption <0.5 W
Mains power 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical) TBD
Consumption (Max) TBD
Energy Label Class G
Sound
Built-in speakers 2 x 10 W RMS
Accessories
Included Accessories RS232 daisy-chain cable
  Philips logo (x 1)
  AC Switch Cover
  USB Cover (x 1)
  Screws
  AC Power Cord
  IR sensor cable (1.8 m) (x 1)
  Quick start guide
  Remote control and AAA batteries
  RS232 cable
  Wi-Fi module
  Wire Clamper (x 3)
