Nureva HDL310 Audio Conferencing System for Mid-Sized Spaces - White

Product Code: NV-HDL310-W

Key Features
  • Intelligent Sound Targeting uses adaptive learning algorithms to preemptively ignore persistent unwanted sounds like HVAC.
  • Position-based gain control applies gain separately to each sound, which enables specific optimizations that create a natural listening experience.
  • Simultaneous processing of all virtual microphones ensures that conversations sound natural even when more than one person is speaking at the same time.
  • Voice Amplification Mode (with audience mute) lets presenters use a headset mic to amplify their voice in the room.
  • Camera tracking (coming soon) enables the use of precise sound location data to steer and switch third-party cameras.
  • Integrated processing requires no separate DSP as all processing is integrated into the system.
  • Console Direct offers a secure, 24/7 connection to Nureva Console without the need for an in-room PC.
  • Powered by Microphone Mist technology.
$9,582.10 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Nureva HDL310 Audio Conferencing System for Mid-Sized Spaces - White

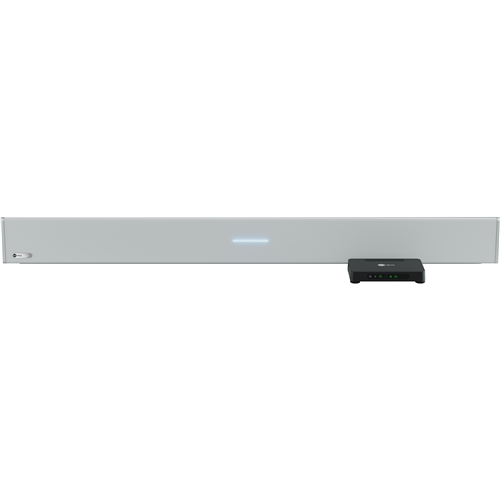

The HDL310 system delivers pro AV performance without the cost and complexity of a custom pro AV system. It combines a powerful connect module with one integrated microphone and speaker bar to offer advanced processing and premium features for rooms up to 30' x 30' (9.1 x 9.1 m).

Next-generation microphone pickup

Like all Nureva® systems, the HDL310 is powered by patented Microphone Mist™ technology, which fills a space with thousands of virtual microphones for true full-room audio coverage.  Because the HDL310’s connect module has greater processing power and expanded memory, it unlocks more advanced audio capabilities within the technology – made possible by new algorithms that offer improved echo cancellation, speaker EQ and noise reduction.

Simple wall-mounted installation

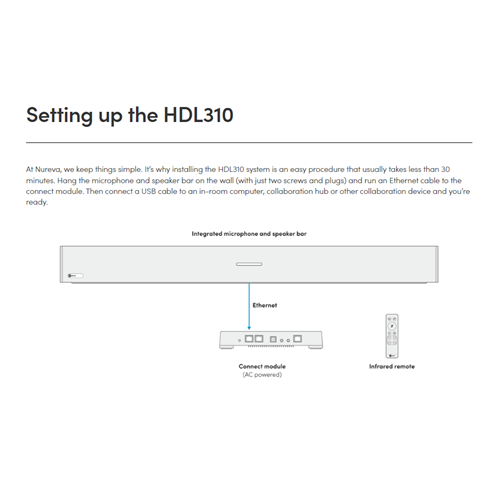

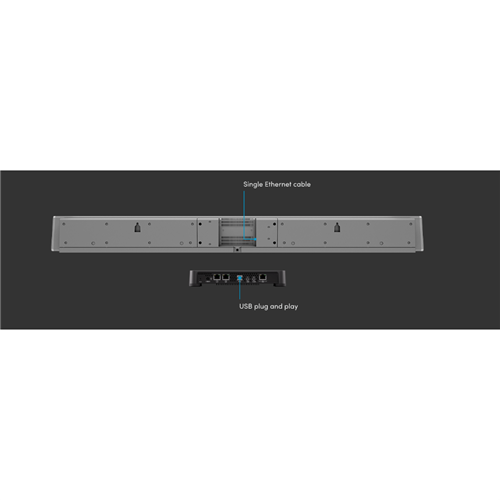

Installing the HDL310 is an easy project that takes about 30 minutes. You hang the unit on the wall with two screws, run one cable to the connect module and another to a computer or other internet-connected device. Compare that to traditional multicomponent systems that may include choosing and installing multiple mics, speakers, cables and a DSP – a process that can take days and require outside technicians.

Tools to manage at scale

The HDL310 and all your Nureva devices can be managed from anywhere with Nureva Console – our secure cloud-based platform included with each system. Use it to remotely install firmware updates, check device status, analyze room data, access developer APIs and more. With the HDL310, there’s no need for a dedicated in-room PC to manage your devices. Console Direct gives you a secure, continuous connection to your account with no need to download software. You also get a two-year subscription to Nureva Pro, which includes expanded support hours, advance hardware replacement and enhanced Nureva Console features.





Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Technology features
Advanced Microphone Mist technology processing platform
Continuous autocalibration
Acoustic echo cancellation
Built-in sound masking
Position-based gain control
Plug and play, no software or drivers required
Ethernet cable to microphone and speaker bar
Primary audio source for video playback
Integrated, multicolor status LED

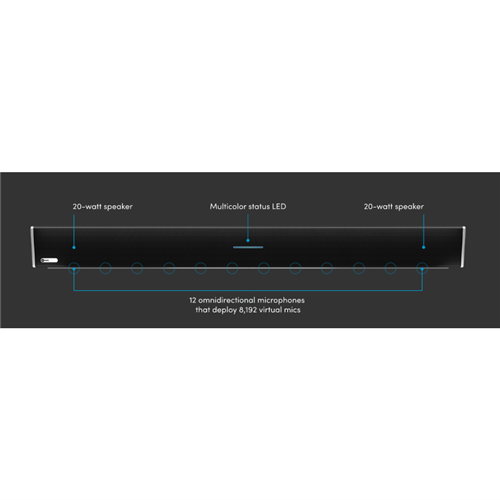

Microphones
12 - low-noise omnidirectional MEMS
Frequency response at 94 dB SPL 100Hz to 7 kHz
Total harmonic distortion (THD) 0.25% (typical)
Speakers
2 - 20W 4" aluminum cone
Acoustic output (hardware capable): 91 dB-SPL @ 1m
Total harmonic distortion (THD) 0.25% typical

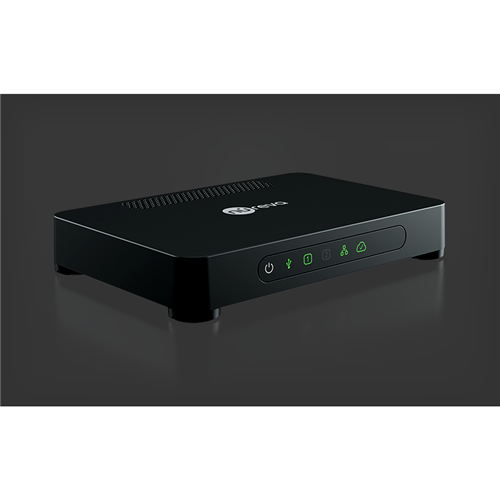

Connect Module
1 – USB 2.0 interface to computer or collaboration hub, type B
1 – Auxiliary out – 3.5 mm single-ended stereo jack
1 – Auxiliary in – 3.5 mm single-ended stereo jack
2 – Connections to microphone and speaker bar RJ-45
1 – Console Direct RJ-45 for connecting to network
1 – Input jack for power supply
Interoperability
Plug and play compatibility with UC&C platforms including Microsoft Teams, Zoom, Google Meet, GoToMeeting, Cisco Webex, Blue Jeans, Lifesize, RingCentral and more
Easy integration with third-party solutions such as Barco ClickShare, lecture capture systems and headset microphones (for Voice Amplification Mode)
Operating system
Windows 10 and 11
Mac OS X 10 and 11
(Big Sur and Catalina)
Power
Power rating: universal switching 100-240V AC, 50-60Hz
Power consumption: <30W
Environmental
Operating temperature: 0° C to 40° C (32° F to 104° F)
Storage temperature: -20° C to 70° C (-4° F to 158° F), humidity 5–90% (noncondensing)
Manageability
Includes Console Direct, which provides a continuous and secure connection to Nureva Console, our cloud-based device management platform
Console Direct security features
Secure IoT OS and system software with device-specific X.509 certificates and external services encrypted using 256-bit Transport Layer Security (TLS)
Information security management system (ISMS) that is ISO/IEC 27001:2013 certified
Built with Microsoft Azure, all data at rest is encrypted using 256-bit AES encryption, and data in transit uses TLS 1.2
Okta Identity Cloud for all identity and access management (IAM) services with OAuth2 protocols to identify and authorize users
Dimensions HDL310
Width: 60.0" (152.4 cm)
Height: 5.91" (14.9 cm)
Depth: 3.5" (9.0 cm)
Weight: 18.0 lb. (8.2 kg)
Dimensions Connect module
Width: 8.7" (22.2 cm)
Height: 1.46" (3.7 cm)
Depth: 5.91" (15.0 cm)
Weight: 0.97 lb. (0.44 kg)
Includes
Integrated microphone and speaker bar
Connect module, dark grey
Connect module mounting bracket, dark grey
Country specific power cable, 6' (2.5 m), black
Ethernet cable, CAT6 SSTP, 50' (15 m), Class 3 rated, black
USB Type A-B cable, 10' (3 m), VW-1 rated, black
Infrared remote with 2 AAA batteries
Documentation
