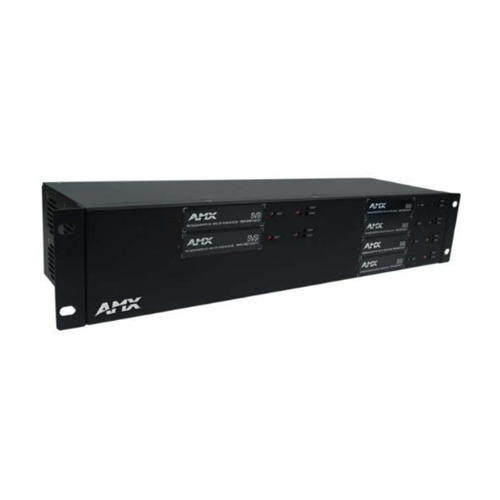

AMX NMX-ACC-N9206 - 2RU Rack Mount Cage with Power for 6 SVSI N-Series Card Units

Product Code: AMX FGN9206

Key Features
2RU rack mount cage for rack mounting up to six SVSI N-Series Encoder, Decoder, and Audio Transceiver Cards, includes power supply
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

2RU rack mount cage for rack mounting up to six SVSI N-Series Encoder, Decoder, and Audio Transceiver Cards, includes power supply. Cards are powered by PoE (Power-over-Ethernet) and/or by connecting the card s 12VDC Input to the Card Cage 12VDC Output using the supplied Phoenix connector cable.

WARNING: N9206 must be powered to allow proper cooling of installed cards. Failing to connect card cage to AC power will void warranty.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions (HWD) 3.40" x 17.22" x 5.04" (8.63 cm x 43.73 cm x 12.8 cm)
Weight 7.61 lbs (3.45 kg)
Certification FCC, CE, and NTRL
Included Accessories Qty-3 NMX-ACC-N9210, plate to cover unpopulated slots (FGN9210)
Power Supply
  • Input: 100-240 Volts @ 1 Amp AC power supply
  • Output: 12VDC @ up to 15A (total over all 6 Phoenix Connectors)
FG Numbers FGN9206
