  • NETGEAR AV Line M4250-26G4F-PoE++ 24x1G Ultra90 PoE++ 802.3bt 1440W 2x1G and 4xSFP Managed Switch

NETGEAR AV Line M4250-26G4F-PoE++ 24x1G Ultra90 PoE++ 802.3bt 1440W 2x1G and 4xSFP Managed Switch

Product Code: NGR GSM4230UP-100AJS

Key Features
  • 24-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 1,440W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 4-port 1000BASE-X (SFP)
  • Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W)
  • 2 internal, fixed PSUs (C14 inlets) with embedded RPS/EPS function
  • When one PSU is used, PoE budget is 720W
  • When two PSU are used, PoE budget is 1,440W
  • 60 Gbps non-blocking fabric across 30 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
  • Front black display panel and all ports in the back
  • Possible reversed mounting with ports in the front
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting (2 inches / 5 cm)
  • Threaded hole in front (1xM10) for clamps
  • Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
  • Selectable fan modes for quiet or cool operation
$5,599.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR AV Line M4250-26G4F-PoE++ 24x1G Ultra90 PoE++ 802.3bt 1440W 2x1G and 4xSFP Managed Switch

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE - Pre-configured to get you up and running faster.

Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant - NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design - Less fan noise, and mounting ears included for under-table or wall mounting.

Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

Fast, Easy Configuration for AV Pros - A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus On The Event, Not Fan Noise - Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

Designed for AV Over IP Right Out of The Box - With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Redefined Design Provides Mounting Flexibility - Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

Maximize Performance With Netgear Access Points - Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.

What's In The Box:

  • M4250-26G4F-PoE++ (GSM4230UP)
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 30 (24x 1G PoE++, 2x 1G, 4x SFP)
  • PoE Ports / Budget : 24 PoE++ (90W/port), 1,440W Budget
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230UP-10000S).
  • Acoustics : Fanless or 60dB@25ºC
  • Power Consumption : Single AC With PoE: 889W/3035.05Btu/hr
  • Dual AC With PoE: 1734W/5919.88Btu/hr
  • Without PoE: 48.8W/166.6Btu/hr
  • Standby without any port connection: 36.9W/125.98Btu/hr

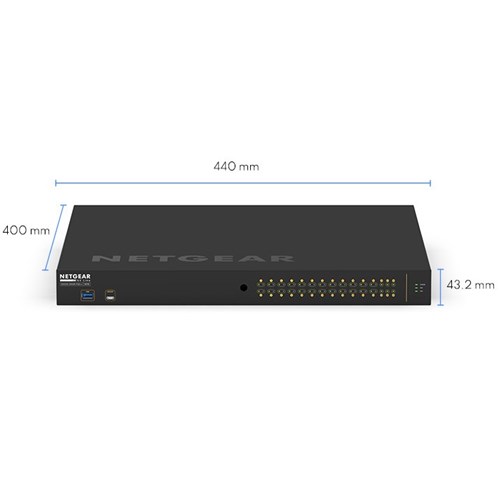

  • Dimensions (WxDxH): 440x43.2x400mm
  • Weight: 6.75Kg
