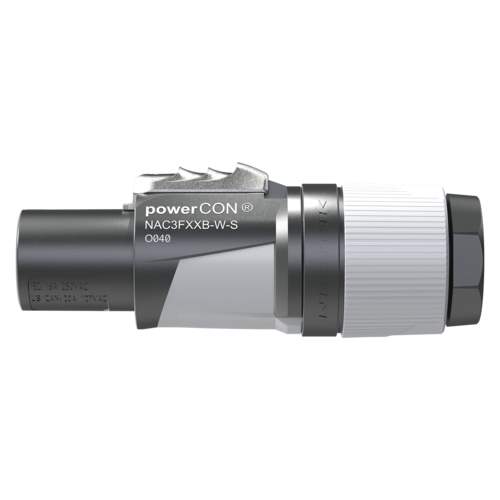

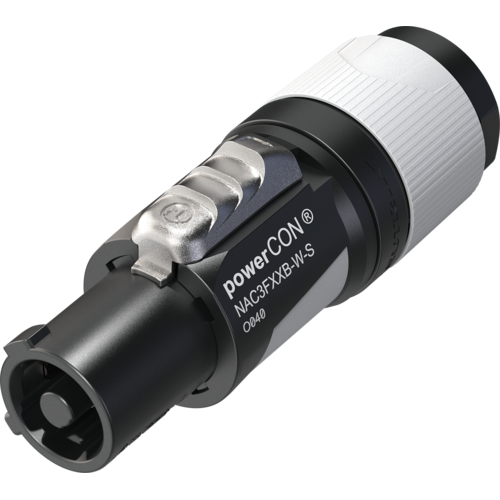

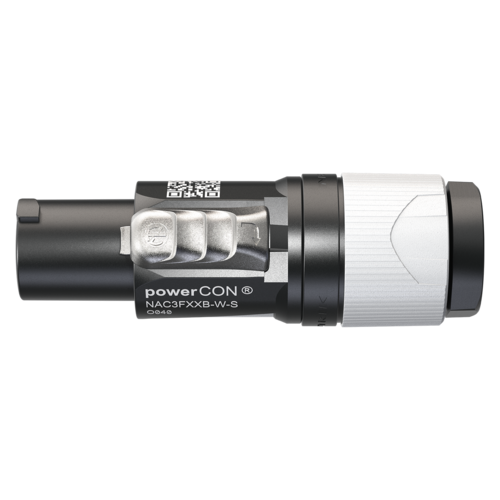

Neutrik PowerCON Cable Connector Power-Out Grey OD 6-12mm

Product Code: NU-NAC3FXXB-W-S

Key Features
  • IEC EN 60320-1 / UL 60320-1 / CSA  C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Ergonomic design with slip-proof two-component molded housing
  • Power-in (blue) and power-out (grey) versions with di erent keying to avoid the possibility of intermating
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing
$19.44 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-2 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik PowerCON Cable Connector Power-Out Grey OD 6-12mm

Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 6 - 12 mm.

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.



Assembly Instruction Video for powerCON FXXA/FXXB

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Product
Title NAC3FXXB-W-S
Connector series powerCON blue/grey
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength > 3 kVac (after mating cycles)
Insulation resistance > 10 GΩ (initially)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC, CBC
Rating USA / Canada cUL 60320-1: 20 A 127 V AC, CBC
Mechanical
Cable O.D. 6 - 12 mm
Lifetime typically 5’000 mating cycles
Wiresize (mm²) 1.5 – 2.5 mm²
Wiresize (AWG) 16 – 12 AWG, see above cable list
Locking device Twist lock
Termination Screw type terminals
Material
Contact plating Ag
Contacts Copper Alloy
Insert Polyamide (PA6.6)
Locking element Zinc diecast
Shell Polyamide (PA6) / TPE
Strain relief Polyketone
Bushing Polypropylene / TPE
Environmental
Temperature range -33 °C to + 80 °C
Protection class IP20
Flammability acc. to UL94 V-0
