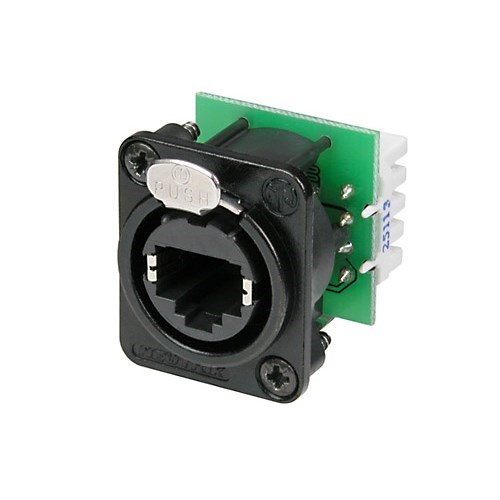

Neutrik D-Type Panel Receptacle IDC Krone Type Black

Product Code: NU-NE8FDV-YK-B

Key Features

Features

  • Accommodates NE8MC* or any standard RJ45 plug
  • Mountable from the front or rear of the panel
  • Selectable ground - panel connection
  • Approved latch lock system
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Easy and quick mounting using Krone punch down terminals
$24.98 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik D-Type Panel Receptacle IDC Krone Type Black

NE8FDV-YK-B

Panel mount receptacle with IDC punch down terminals, black D-sized metal flange with latch lock, max. panel thickness 4 mm, mounting screws included

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Product

Title NE8FDV-YK-B
Gender female

Electrical Specifications

Contact resistance < 10 mΩ
Dielectric strength 1 kVdc
Frequency Range 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1,5 A
Rated voltage <50 V
Transmission performance CAT 5e
Standard compliance TIA/EIA 586B, IEC11801

Mechanical Specifications

Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 4 mm 0.16'
Wiresize 0.14 - 0.5 mm²
Wiresize 26 - 20 AWG
Locking device Latch lock
Chassis shape D

Material Specifications

Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Insert PBTP 15 % GR
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief CuZn35Pb2, Tin plated

Environmental Specifications

Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
