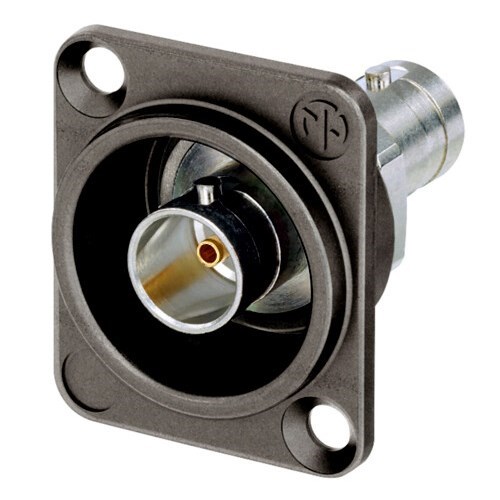

  • Neutrik Grounded UHD BNC Chassis Connector Feedthrough in Antraloy Plated D-Shape Housing

Neutrik Grounded UHD BNC Chassis Connector Feedthrough in Antraloy Plated D-Shape Housing

Product Code: NU-NBB75DFGX

Key Features
  • Optimized gold plated cage type center contact for UHD signals as 4K or 8K
  • Swiss antraloy plating
  • Grounded panel mount
  • Standard D-shape housing provides flush mounting and protection from damage
  • Color coding possible
  • Fully compatible with conventional BNC cable connectors
$20.98 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-2 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik Grounded UHD BNC Chassis Connector Feedthrough in Antraloy Plated D-Shape Housing

Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing.

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Product
Title NBB75DFGX
Connection Type BNC 75 Ω
Gender female
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1.5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage < 50 V
VSWR ≤1.06 / >30 dB up to 6 GHz
≤1.13 / >24 dB up to 12 GHz
≤1.22 / >20 dB up to 18 Ghz
Signal type UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Mechanical
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Mounting direction Front mounting
Chassis shape D
Material
Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (center contact)
Insert PTFE
Shell Polyacetal (POM) (insulation shell)
Shell plating Antraloy
D-shape housing Zinc diecast (ZnAl4Cu1)
Environmental
Temperature range -30 °C to +85 °C
