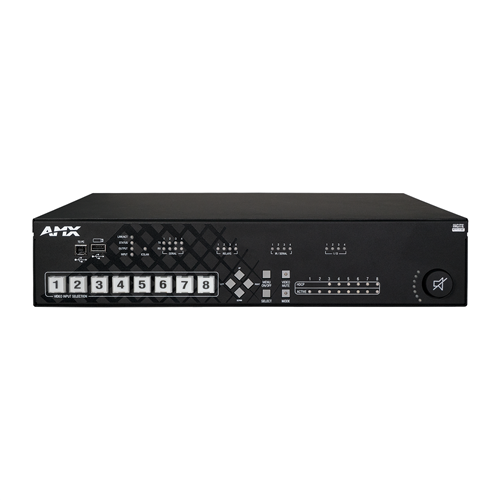

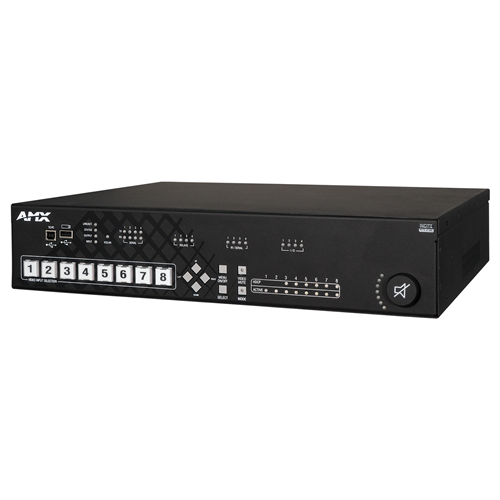

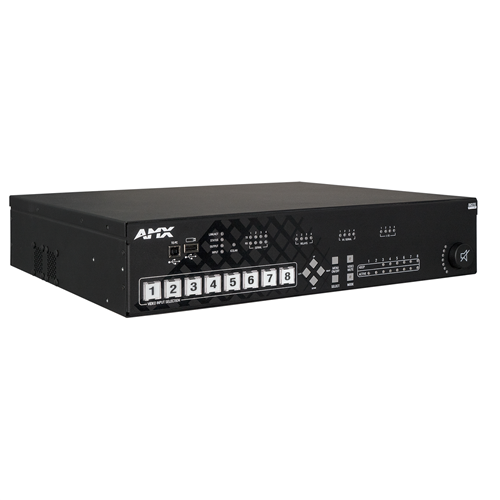

AMX NCITE-813AC - Digital Video Presentation Switcher with DriveCore Amplification and Integrated NX Controller

AMX Incite Digital Video Presentation Systems are the next generation of presentation switchers that combine AMX control and signal distribution with HARMAN Crown, JBL, and dbx audio. Video presentation features include advanced windowing with scaling allowing for various video configurations (side-by-side, top-bottom, and picture-in-picture), and live production style video features such as transition effects. Support and scaling for 4K/60 4:4:4 and HDCP 2.2, as well as lower resolutions, ensures the Incite family provides flexibility for visiting devices and compatibility from source to display weather using legacy or new devices.

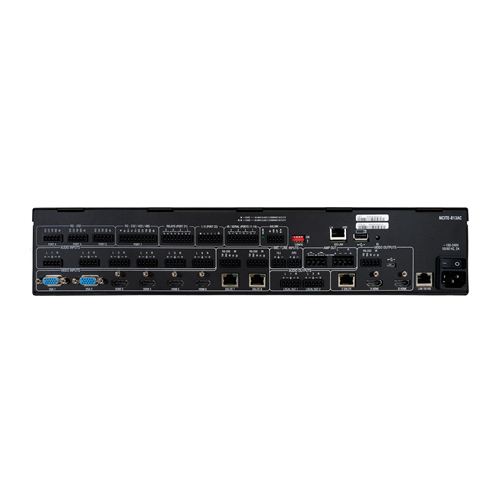

Each has 8 inputs (4 HDMI, 2 DXLite, and 2 RGBHV/VGA), and a scaled video feed presented simultaneously to 2 local HDMI outputs and 1 DXLite output. Thus, making it an 8x1:3 presentation switcher.

In addition to all the functionality listed above, the NCITE-PRS-AM (FG1901-16) also includes full NX-2200 central controller accessed via the NX-2200 control port for full central controller processing capabilities along with the integrated private control network (ISCLan) functionality, and the robust security features of the NX central controller line.

Features

• 4K/60 4:4:4 Support – Incite supports today’s 4K content without modifying the color space or reducing the frame rate.
• HDMI 2.0 and HDCP 2.2 Support – By incorporating HDMI 2.0 and HDCP 2.2, Incite is compatible with all the latest 4K sources and displays.
• Scaled Outputs – Provides current and future support for permanent and visiting source devices connected at the same time, both 4K and non 4K. Current HD signals can be up-scaled, while 4K60 can be downscaled, providing flexible compatibility from source to display.
• Advanced Windowing with Scaling – Send two sources to a single display in various preset configurations (side-by-side, top-bottom, and picture-in-picture) regardless of source resolution, Incite will scale the sources to fit the resolution requirements of the destination display. The Incite also includes “Live Production” Style Video Features such as transition effects when switching between sources providing presenters with a professional look and feel.
• DSP by BSS – Includes an integrated digital signal processor with advanced capabilities like independent 10-band parametric EQ, independent input gain adjustments and variable compression, allow precision tuning to match unique source and room attributes. Enhanced Microphone Processing includes 3-band EQ, compressional, gating, auto-ducking, and limiting on each microphone input to ensure crystal clear communication.
• dbx AFS (Advanced Feedback Suppression™) – Never experience feedback problems again, Advanced Feedback Suppression (AFS) takes the guesswork out of controlling feedback, which is not only annoying but can even damage speakers – and ears. AFS is flexible and easy to use: just choose the level of suppression you want, and you’re done.
• Crown DriveCore Amplification – Seamlessly integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. The foundational DriveCore™ circuitry is based on breakthroughs by Crown's own Gerald Stanley with five patents applying to the advanced feedback, modulation and output stage technologies. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an ultra-efficient one-piece audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.
• Distance Transport – Extend the reach of 4K60 4:4:4 to 70 meters, well beyond the capabilities of typical HDMI cabling.
• Flexible Interface Options – Interface options include integrated web GUI, front control panel, On Screen Menu Setup and is a Native NetLinx device which can be controlled via native NetLinx ICSP commands.
• Integrated NX Central Control – The NX-2200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-2200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-2200 is ideal for control and automation of medium-sized rooms and multi-room applications.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.
