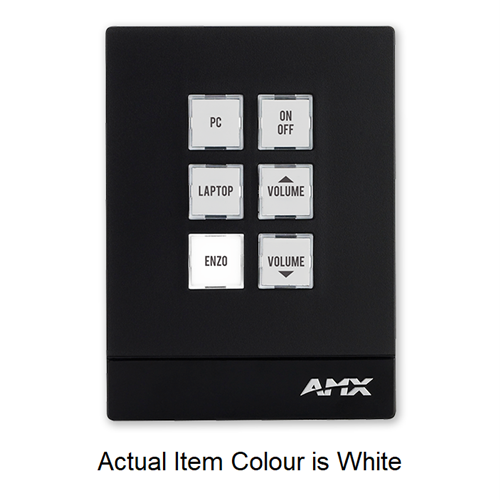

AMX MKP-106P-WH - Massio 6-Button Ethernet Keypad Portrait White

Product Code: AMX FG5793-06P-WH

Key Features
Massio 6-Button Ethernet Keypad, Portrait, White - Fits into standard 1 gang US, UK, or EU back box. Use in conjunction with NetLinx control or as a secondary UI with Massio ControlPads
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The MKP-106 / 6-Button Massio Keypad is a keypad-only version of the MCP-106 Massio ControlPad. The MKP-106 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller. The MKP-106 includes large, easy-to-read buttons in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

  • Ideal for small spaces utilizing NetLinx control, providing the ability to utilize customized code and additional ports of NetLinx masters, while maintaining a consistent user experience as the RPM-enabled Massio ControlPads.
  • Perfect for Massio rooms requiring a second user interface in the same form factor to act as a slave keypad to the Massio ControlPad.

Features

  • Consistent Massio Aesthetics & Form Factor Provides consistent look-and-feel in existing installations with Massio, with the same models and sizes as the Massio ControlPads
  • Massio Styling in Customized Rooms Provides Massio-style UI in rooms that require a separate controller
  • Connects Via Standard Protocols (PoE) Simplifies cabling and installation by minimizing cable runs and eliminates the need for power at the keypad location

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

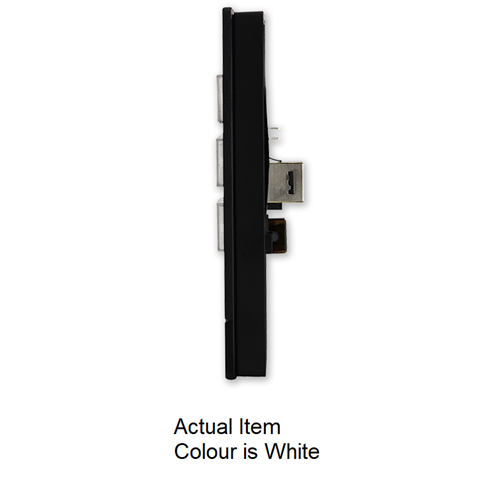

Dimensions (HWD) Portrait: 4 11/16" x 3 7/16" x 9/16" (119 mm x 87.5 mm x 13.9 mm), Landscape: 3 7/16" x 4 11/16" x 9/16" (87.5 mm x 119 mm x 13.9 mm)
Weight Approximately .25 lbs (.11 kg)
Mounting Mount onto standard 1 gang US, UK, or EU back boxes

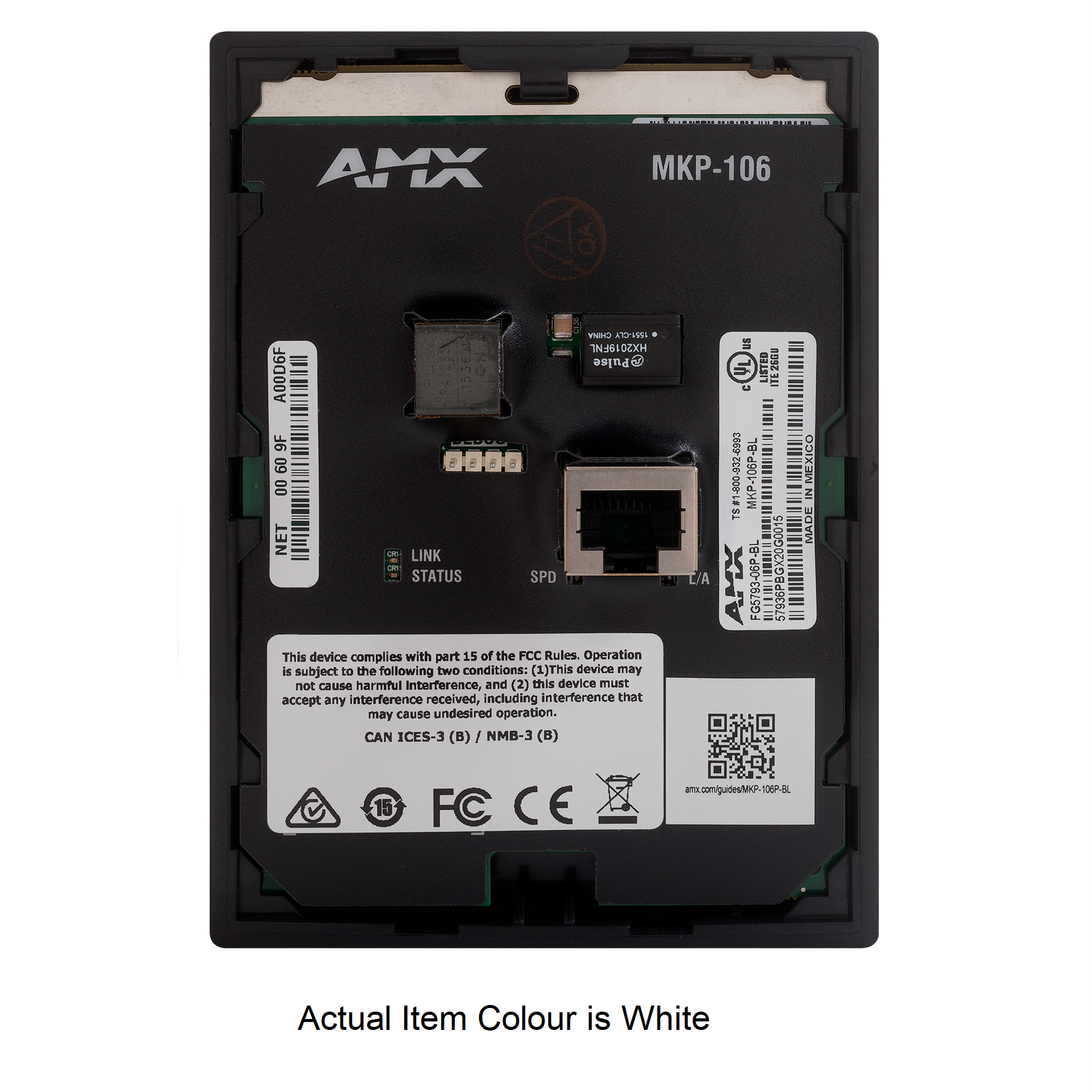

Power Consumption Typical: 4.5 Watts, Voltage, DC (Typical): PoE (37V-57V), Voltage DC Range: 37 V-57 V per 802.3af spec, Power Connector: (1) RJ-45 Ethernet
Memory Flash: 4 GB, Memory Card: 4 GB SD, DDRAM: 256 MB
Program Port (1) USB Mini-B, USB
ID Pushbutton Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode
FG Numbers

FG5793-06P-W (Portrait, White)
FG5793-06P-BL (Portrait, Black)
FG5793-06L-W (Landscape, White)
FG5793-06L-BL (Landscape, Black)
