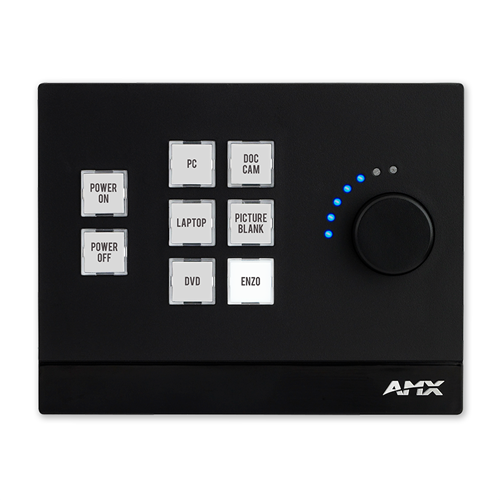

AMX MCP-108-BL - Massio 8-Button Ethernet ControlPad with Knob Black

The MCP-108 / 8-Button Massio™ ControlPad with Knob combines AMX control and a stylish keypad into a single unit that can be mounted in a standard 2 gang US, UK or EU back box to provide dedicated room control. Massio ControlPads provide high performance, intuitive usability and modern styling, and are simple to configure using AMX's Rapid Project Maker or custom programmed using NetLinx Studio software.

• NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise
• Massio ControlPads are a perfect solution for huddle spaces and small conference rooms, where Massio's combination of controller, user interface and configuration with RPM provides an inexpensive way to add AV control to small spaces
• The MCP-108's security features and secure wall-mount options make it ideal for Higher Education breakout rooms and small classrooms.
• The MCP-108's rugged design and attractive price point also make it perfect for K-12 (Primary Education) classrooms.

Features

• Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
• IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
• IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
• X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
• TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
• Network Syslog – The Central Controller generates an audit record of events using syslog, a standard for message logging
• Unrivaled Network Security – With IPv6 and wired 802.1X for protected network access and user-defined LDAP login group support, Massio ControlPads provide rock-solid security
• All-in-one Keypad/Controller – Unique product combines an elegant yet rugged user interface with an onboard controller
• Includes AMX Control – Incorporates AMX's flagship NX-series control technology, including the latest networking and security features and outstanding processing power
• One Tool to Program - RPM – Radically reduces total cost of ownership by reducing the time and cost required to configure or program a system from days to less than an hour
• Simple Integration with RMS – Using RPM, easily integrate RMS with the MCP-108 to provide a platform for real-time performance monitoring and maintenance
• Elegant Industrial Design – Complement the rest of the AMX user interface product family and look great in any room
• Large Buttons / Larger More Descriptive Text – All buttons are easy to read with large supplied labels, or easily make your own for a customized solution
• Display Monitoring – Use the ControlPad with RMS to monitor power status, input status, lamp hours and filter hours
• Web-based Control – Remotely login to ControlPads and execute button presses
• Inactivity Timer – Turn off equipment after lack of activity (timeouts) to save energy

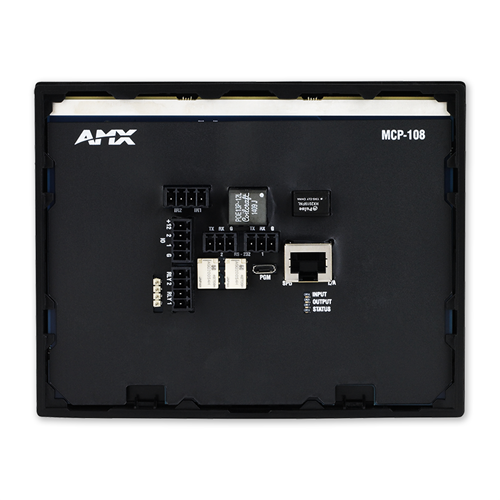

• Built In Control Ports – Serial and IR ports available to communicate and control common presentation equipment
• Backlit Buttons – Can flash or turn on/off when pressed
• Execute Multiple Functions at Once – Macros can be written to trigger multiple functions through a single button press
• Works with AMX IR Files – Leverage thousands of pre-existing AMX IR files on AMX.com
• Standard Enclosures – Standard back box mounting options for US, UK and EU
• Native Direct Connection to RMS – No proxy required

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.
