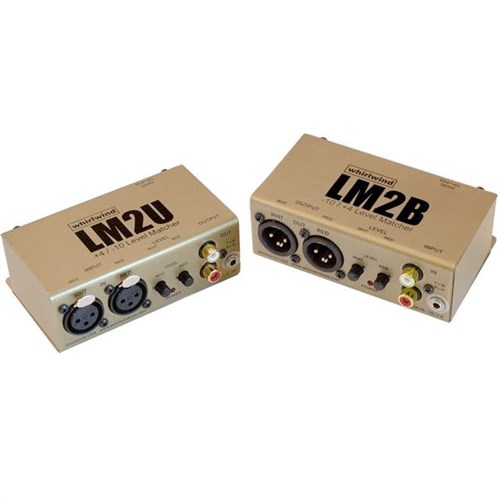

Whirlwind LM2B Level Matcher

Product Code: WH LM2B

Key Features
  • These handy boxes can be used to match consumer grade audio devices (-10dB) to pro equipment (+4dB). These units convert the level and provide the conversion from balanced to unbalanced operation and vice-versa.
  • 2 Channel Active -10Db RCA / Mini TRS To +4Db XLRM With Gain Control
$422.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Each unit features:

  • XLR, TRS mini and RCA phono jacks
  • Level controls
  • Active circuitry, power by Whirlwind PS24 supply (included)
Feature Spec
Frequency Response 20-20 kHz at unity gain, ± .1 dBv
Total Harmonic Distortion +noise < .0015% 20-20kHz at unity gain; < .0024% 20-20 kHz, +4 to -10 levels
Phase Shift < 11.4 degrees 20-20 kHz; < 2 degrees 100-4 kHz
Dynamic range 95.7 dB @ .1% thd
Total Gain 40 dBv
Range of level pot -40 to + 40 dBv
Maximum Input level +17 dBv
Input Impedance 20 k Ohms balanced
Maximum output level +17 dBv
Output Impedance 100 Ohms unbalanced
Noise at 20 dBv of gain -87.4 dBv 20-20 kHz
Noise at unity gain -103.4 dBv 20-20 kHz
Noise at 40 dBv of gain -68.1 dBv
Power consumption 34 mA DC max.
Stereo Separation 94 dB at 20 kHz; 110 dB at 1 kHz; 120 dB at 20 Hz
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
